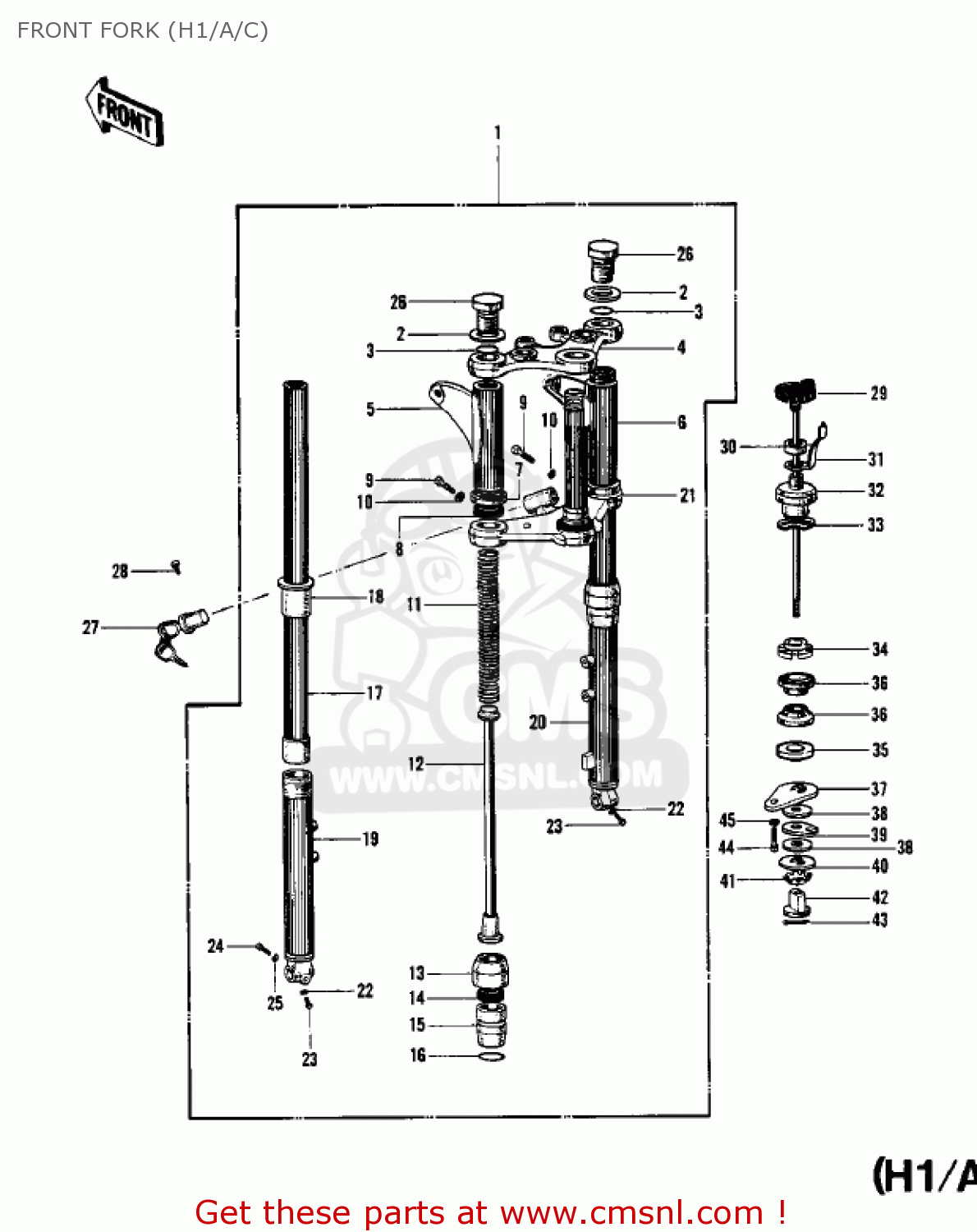

FRONT FORK (H1/A/C)

ref

part #

description

quantity

1

4400104310
ref: 1
BLACK FORK COVERS

FRONT FORK ASSY,BLACK

€ 1,125.50

2

44043033
ref: 2

WASHER-FORK TOP

€ 1.50

3

44046015
ref: 3

RING-O,FORK TOP

€ 4.50

4

44039025
ref: 4

HEAD-STEERING STEM

€ 123.00

5

4403302410
ref: 5
'70 H1/H1-A/C

COVER-L.H FORK,BLACK

€ 70.50

5

4403302442
ref: 5
'69 H1

COVER-L.H FORK,SILVER

€ 17.00

6

4403402310
ref: 6
'70 H1/H1-A/C

COVER-R.H FORK,BLACK

€ 35.50

6

4403402342
ref: 6
'69 H1

COVER-R.H FORK,SILVER

€ 20.00

7

44043034
ref: 7

WASHER-FORK COVER

€ 6.00

8

44045029
ref: 8

GASKET-FORK COVER (NAS)

€ 3.50

9

920011252
ref: 9

BOLT,HEX HEAD,10X35

€ 3.50

10

461F1000
ref: 10

WASHER-SPRING,10MM

€ 0.50

11

44026022
ref: 11

SPRING-FORK

€ 15.00

11

44026031
ref: 11

SPRING-FORK

€ 15.00

12

44028015
ref: 12

HOLDER-FORK SPRING

€ 61.00

13

44010017
ref: 13

DUST SHIELD-FORK

€ 14.00

14

44009020
ref: 14

OIL SEAL,FORK

€ 38.00

15

44007015
ref: 15

NUT-FORK OUTER TUBE

€ 40.50

16

44046016
ref: 16

'O' RING-OUTER TUBE

€ 4.00

17

44013025
ref: 17

TUBE-FORK INNER

€ 80.50

18

44015011
ref: 18

GUIDE-FORK INNER TUBE

€ 16.50

19

44005020
ref: 19

TUBE-L.H OUTER

€ 97.50

20

44006019
ref: 20

TUBE-R.H OUTER

€ 102.00

21

44037024
ref: 21

STEM-STEERING

€ 265.50

22

44045002
ref: 22

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

23

220B0408
ref: 23

SCREW-PAN-CROS

€ 0.50

24

115B0832
ref: 24

BOLT-SMALL UPSET

€ 1.50

25

461F0800
ref: 25

WASHER-SPRING,8MM

€ 0.50

26

44041021
ref: 26

BOLT-FORK TOP

€ 48.50

27

27016017
ref: 27

LOCK ASSY-STEERING

€ 7.50

28

92099001
ref: 28

SCREW RIVET

€ 2.50

29

46101004
ref: 29

KNOB-STEERING DAMPER

€ 9.00

30

315N1200A
ref: 30

NUT,12MM

€ 3.50

31

46126001
ref: 31

SPRING-STRG DAMP KNOB

€ 3.50

32

92090015
ref: 32

NUT-STEERING STEM

€ 31.50

33

46100001
ref: 33

WASHER-STEERING STEM

€ 2.50

34

92090007
ref: 34

NUT-STEERING STEM LCK

€ 8.00

35

46098016
ref: 35

CAP,STEERING STEM

€ 4.00

36

92047006
ref: 36

CONE-STRNG STEM

€ 11.00

37

46106005
ref: 37

PLATE-STRG DAMP STEEL

€ 7.50

38

46104005
ref: 38

PLATE-STRG DAMP FRCTN

€ 2.50

39

46105005
ref: 39

PLATE,STRG DAMP ANCH

€ 8.50

40

46106006
ref: 40

PLATE-STRG DAMP STEEL

€ 3.50

41

46124006
ref: 41

SPRING-STEERING DAMP

€ 9.00

42

46125005
ref: 42

NUT-STRG DAMPER GUIDE

€ 23.00

43

550D1615
ref: 43

PIN-COTTER,1.6X15

€ 1.50

44

114G0812
ref: 44

BOLT-SMALL,8X12

€ 2.00

45

461F0800
ref: 45

WASHER-SPRING,8MM

€ 0.50
