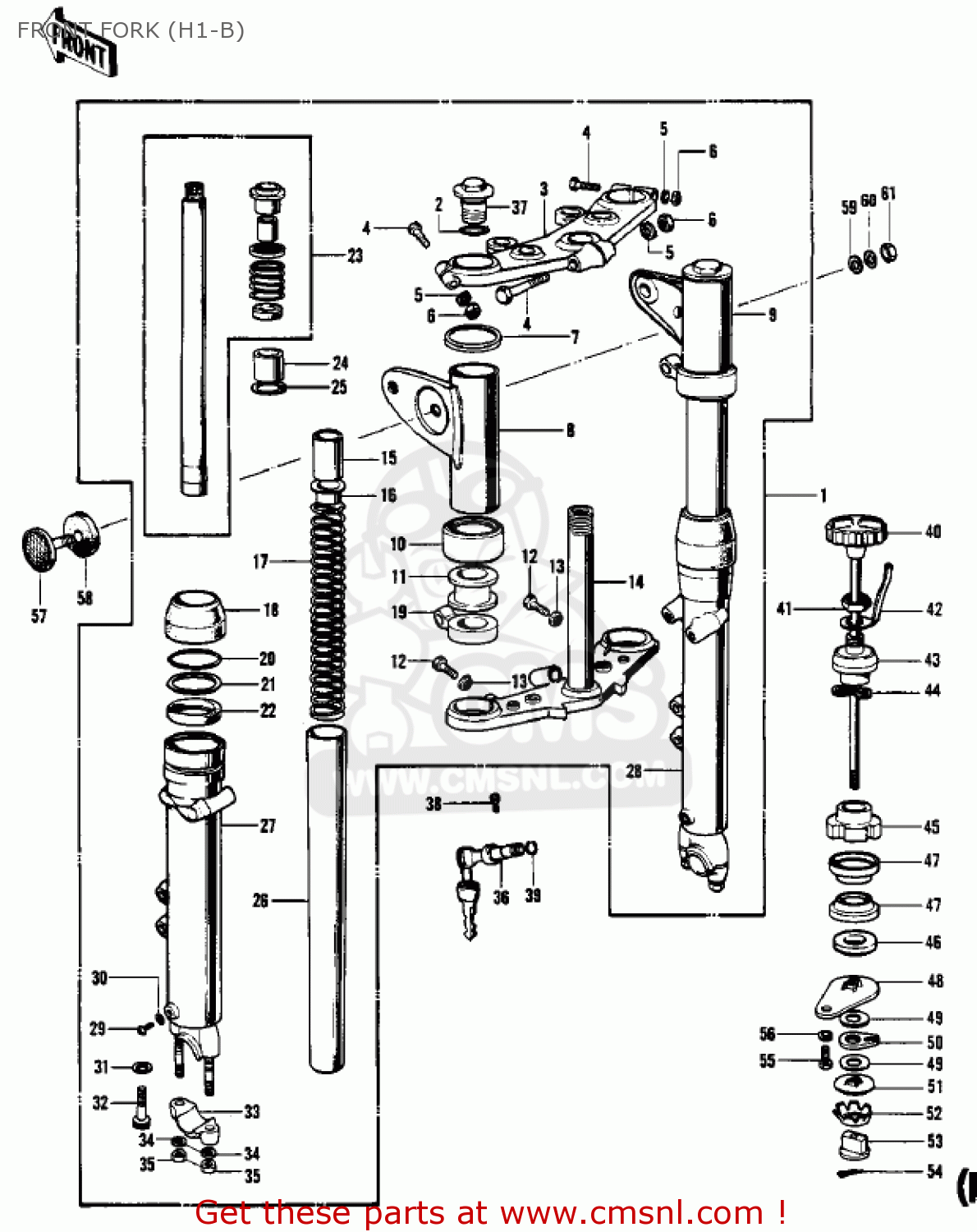

FRONT FORK (H1-B)

ref

part #

description

quantity

1

44001087
ref: 1

FRONT FORK ASSY

€ 566.50

2

44046015
ref: 2

RING-O,FORK TOP

€ 4.50

3

44039040
ref: 3

HEAD-STEERING STEM

€ 105.00

4

44041038
ref: 4

BOLT-HEX HEAD,8X55

€ 5.50

5

461F0800
ref: 5

WASHER-SPRING,8MM

€ 0.50

6

311N0800
ref: 6

NUT,8MM

€ 2.50

7

44032008
ref: 7

WASHER-FORK COVER

€ 10.50

8

4403304321
ref: 8

COVER, L.H FOR, BLACK

€ 49.50

9

4403404221
ref: 9

COVER, R.H FORK,BLACK

€ 57.00

10

44064002
ref: 10

GUIDE-FORK COVER

€ 4.50

11

44045035
ref: 11

GASKET-FORK COVER (NAS)

€ 2.50

12

113B1236A
ref: 12

BOLT-HEX HEAD,12X36

€ 3.50

13

461F1200
ref: 13

WASHER-SPRING,12MM

€ 0.50

14

44037041
ref: 14

STEM-STEERING

€ 175.00

15

44028023
ref: 15

SPACER-FORK SPRING

€ 2.50

16

44029019
ref: 16

GUIDE-FORK SPRING

€ 6.00

17

44026031
ref: 17

SPRING-FORK

€ 15.00

18

44010021
ref: 18

SEAL,FORK

€ 43.50

19

23051031
ref: 19

BRACKET-TURN SIG LAMP

€ 17.50

20

44044012
ref: 20

RING-SNAP

€ 17.50

21

44043044
ref: 21

WASHER,OIL SEAL FIT

€ 8.00

22

920491216
ref: 22

SEAL-OIL,FORK OUTER P

€ 16.00

23

44022007
ref: 23

CYLINDER-FORK

€ 113.00

23

44023006
ref: 23
INCLUDES REF #24 & 2

CYLINDER SET,FORK

€ 113.00

24

44018003
ref: 24
USE WITH 44022-007

PISTON-FORK

€ 9.00

24

44018009
ref: 24
USE FOR 44023-006

PISTON,FORK

€ 17.00

25

44044008
ref: 25
USE WITH 44022-007

CIRCLIP-FORK PISTON

€ 7.00

25

44044019
ref: 25
USE FOR 44023-006

CIRCLIP,FORK PISTON

€ 4.50

26

44013032
ref: 26

TUBE-FORK INNER

€ 117.00

27

44005041
ref: 27

TUBE-L.H OUTER

€ 271.50

28

44006039
ref: 28

TUBE-R.H OUTER

€ 258.50

29

220B0408
ref: 29

SCREW-PAN-CROS

€ 0.50

30

44045002
ref: 30

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

31

44045057
ref: 31

GASKET (NAS)

€ 3.00

32

44041040
ref: 32

BOLT-FORK CYLINDER

€ 4.50

33

44063003
ref: 33

HOLDER-FRONT AXLE

€ 18.00

34

461F0800
ref: 34

WASHER-SPRING,8MM

€ 0.50

35

311B0800
ref: 35

NUT,8MM

€ 0.50

36

27016024
ref: 36

LOCK ASSY-STEERING

€ 10.00

37

44062003
ref: 37

BOLT-FORK TOP

€ 43.00

38

92099001
ref: 38

SCREW RIVET

€ 2.50

39

92033024
ref: 39

CIRCLIP-STEERING LOCK

€ 6.50

40

46101006
ref: 40

KNOB-STEERING DAMPER

€ 14.50

41

315N1200A
ref: 41

NUT,12MM

€ 3.50

42

46126001
ref: 42

SPRING-STRG DAMP KNOB

€ 3.50

43

92090020
ref: 43

BOLT-STEERING STEM

€ 27.00

44

46100002
ref: 44

WASHER-WAVE

€ 7.00

45

92090007
ref: 45

NUT-STEERING STEM LCK

€ 8.00

46

46098016
ref: 46

CAP,STEERING STEM

€ 4.00

47

92047006
ref: 47

CONE-STRNG STEM

€ 11.00

48

46106005
ref: 48

PLATE-STRG DAMP STEEL

€ 7.50

49

46104005
ref: 49

PLATE-STRG DAMP FRCTN

€ 2.50

50

46105005
ref: 50

PLATE,STRG DAMP ANCH

€ 8.50

51

46106006
ref: 51

PLATE-STRG DAMP STEEL

€ 3.50

52

46124006
ref: 52

SPRING-STEERING DAMP

€ 9.00

53

46125005
ref: 53

NUT-STRG DAMPER GUIDE

€ 23.00

54

550D1615
ref: 54

PIN-COTTER,1.6X15

€ 1.50

55

114G0812
ref: 55

BOLT-SMALL,8X12

€ 2.00

56

461F0800
ref: 56

WASHER-SPRING,8MM

€ 0.50

57

28012006
ref: 57

REFLECTOR-REFLEX,FRNT

€ 16.00

58

92094009
ref: 58

DAMPER RUBBER-REFLCTR

€ 6.50

59

411B0500
ref: 59

WASHER-PLAIN,5MM

€ 0.50

60

461F0500
ref: 60

WASHER-SPRING,5MM

€ 0.50

61

311B0500
ref: 61

NUT-HEX

€ 0.50
