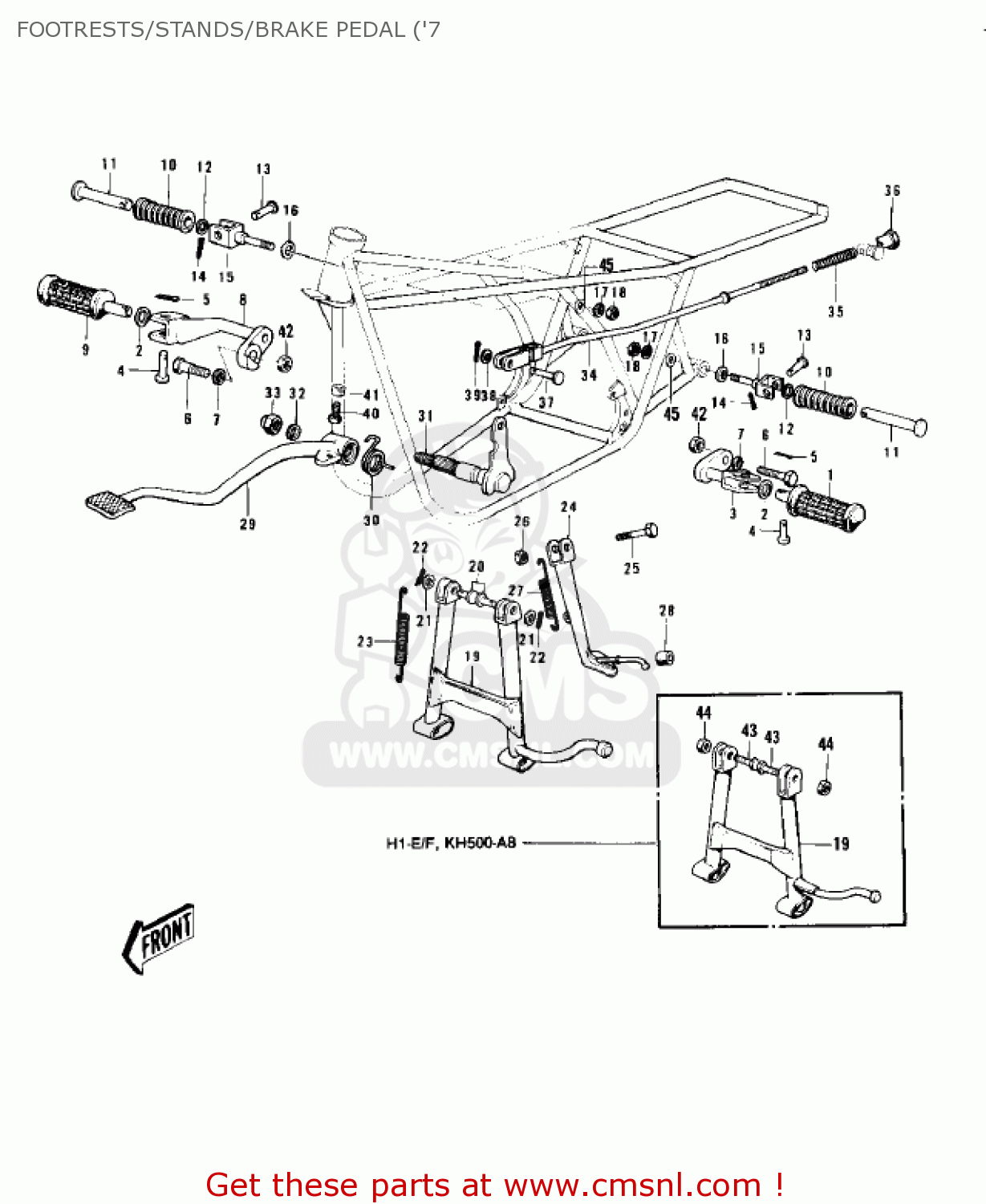

FOOTRESTS/STANDS/BRAKE PEDAL ('7

ref

part #

description

quantity

1

34028011
ref: 1

BAR-FOOTREST,L.H

€ 24.50

2

92022204
ref: 2

WASHER-PLAIN

€ 0.50

3

34003038
ref: 3

BRACKET,FOTRST BAR,LH

€ 51.00

4

92043080
ref: 4

PIN-FOOTREST BAR FIT

€ 3.50

5

550D2515
ref: 5

PIN COTTER,295X15

€ 0.50

6

113G1240
ref: 6
H1-D

BOLT-HEX HEAD,12X40

€ 6.00

6

92003165
ref: 6
H1-E/F,KH500-A8

BOLT,HEX HEAD,12X56

€ 10.50

7

461F1200
ref: 7

WASHER-SPRING,12MM

€ 0.50

8

34003039
ref: 8

BRACKET,FOTRST BAR,RH

€ 65.50

9

34028012
ref: 9

BAR-FOOTREST,R.H

€ 24.50

10

92076024
ref: 10

DAMPER,STEP

€ 14.50

11

34028009
ref: 11

BAR-REAR FOOTREST

€ 24.00

12

92022199
ref: 12

WASHER,20X30X2.3

€ 5.00

13

920431464
ref: 13

PIN

€ 5.50

14

550D2015
ref: 14
H1-D

PIN-COTTER,2.0X15

€ 1.00

14

550D2012
ref: 14
H1-E/F,KH500-A8

PIN,COTTER,2.0X12

€ 0.50

15

34029008
ref: 15
H1-D

HOLDER-STEP,RR

€ 20.00

15

34029011
ref: 15
H1-E/F,KH500-A8

HOLDER-STEP,RR

€ 19.00

16

92026074
ref: 16
H1-D

SPACER

€ 2.50

16

92022099
ref: 16
H1-E/F,KH500-A8

WASHER-CYL HEAD BOLT

€ 0.50

17

461F1000
ref: 17

WASHER-SPRING,10MM

€ 0.50

18

314B1000
ref: 18

NUT,10MM

€ 0.50

19

34011034
ref: 19
H1-E/F,KH500-A8

STAND,MAIN

€ 40.00

20

92043041
ref: 20
H1-D

PIN-JOINT

€ 7.00

21

410B1200
ref: 21
H1-D

WASHER-PLAIN-SMALL,12

€ 0.50

22

550D2525
ref: 22
H1-D

PIN-COTTER,2.5X25

€ 1.00

23

34023010
ref: 23
H1-D

SPRING-MAIN STAND

€ 8.50

23

34023016
ref: 23
H1-E/F,KH500-A8

SPRING,MAIN STAND

€ 11.00

24

34024039
ref: 24

STAND,SIDE

€ 99.50

25

92003079
ref: 25

BOLT-SIDE STAND

€ 7.50

26

314B1000
ref: 26

NUT,10MM

€ 0.50

27

34023005
ref: 27

SPRING-MAIN STAND

€ 6.50

28

92075031
ref: 28

DAMPER RUBB-SIDE STND

€ 3.00

29

43001047
ref: 29

PEDAL,BRAKE

€ 50.50

30

43005022
ref: 30

SPRING,BRAKE PEDAL

€ 4.50

31

43004011
ref: 31

SHAFT,BRAKE,PEDAL

€ 23.50

32

411B0800
ref: 32

WASHER-PLAIN,8MM

€ 0.50

33

92019013
ref: 33

NUT,CAP,LOCK,8MM

€ 5.50

34

43011016
ref: 34

ROD,BRAKE

€ 4.00

35

43012001
ref: 35

SPRING,BRAKE ROD

€ 3.00

36

92015042
ref: 36

NUT-BRAKE ROD ADJUST

€ 4.00

37

92043064
ref: 37

PIN-BRAKE ROD FITTING

€ 4.50

38

410B0600
ref: 38

WASHER-PLAIN-SMALL,6M

€ 0.50

39

550D2015
ref: 39

PIN-COTTER,2.0X15

€ 1.00

40

112G0620
ref: 40

BOLT 6X20

€ 1.00

41

311B0600
ref: 41

NUT,6MM

€ 0.50

42

314G1200A
ref: 42
H1-E/F,KH500-A8

NUT,12MM

€ 2.50

43

92003150
ref: 43
H1-E/F,KH500-A8

BOLT,HEX HD 12X32

€ 6.00

44

92019009
ref: 44
H1-E/F,KH500-A8

NUT,LOCK,12MM

€ 5.00

45

410B1000
ref: 45
H1-E/F,KH500-A8

WASHER-PLAIN-SMALL,10

€ 0.50
