FRONT FORK ('74-'75)
G4TRE 1975 USA CALIFORNIA

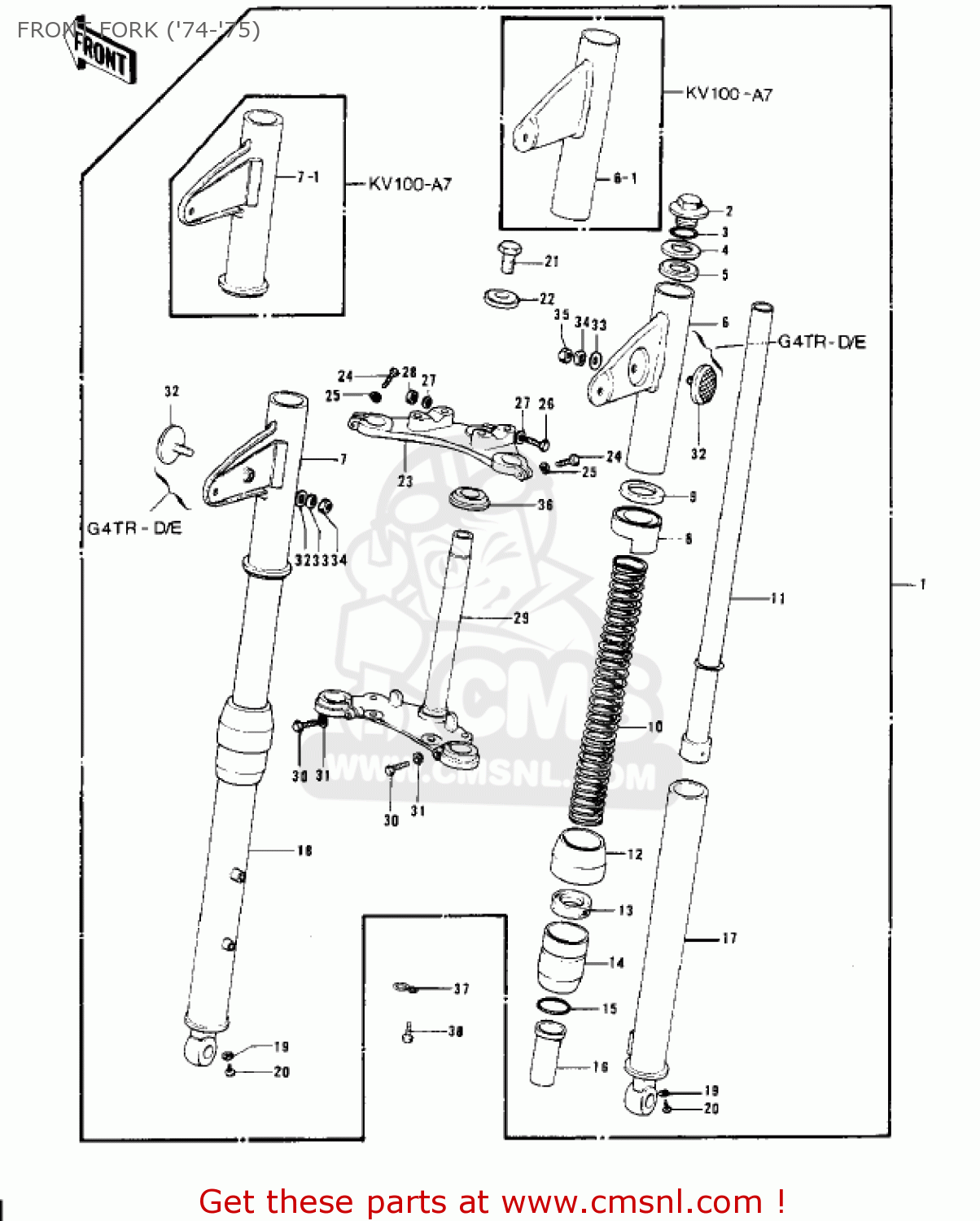

Front fork ('74-'75) diagram G4TRE 1975 USA CALIFORNIA
FRONT FORK ('74-'75) G4TRE 1975 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
4400110021
ref: 1
G4TR-D/E
FRONT FORK,FLAT BLACK
€ 1,278.00
1
4400117921
ref: 1
KV100-A7
FRONT FORK ASY,BLACK
€ 620.50
2
44041036
ref: 2
BOLT-FORK TOP
€ 9.50
3
44046014
ref: 3
'O' RING-INNER TUBE
€ 4.00
4
44045037
ref: 4
GASKET FORK COVER (NAS)
€ 1.00
5
44043046
ref: 5
WASHER-FORK COVER
€ 7.00
6
4403305121
ref: 6
G4TR-D/E
FORK COVER,LH,FLAT BLACK
€ 105.00
6-1
4403307821
ref: 6-1
KV100-A7
COVER,L.H FORK,BLACK
€ 23.50
7
4403405121
ref: 7
G4TR-D/E
FORK COVER,RH,FLAT BLACK
€ 86.00
7-1
4403407821
ref: 7-1
KV100-A7
COVER,R.H FORK,BLACK
€ 26.00
8
44030010
ref: 8
GUIDE-FORK COVER
€ 6.50
9
44045012
ref: 9
GASKET,FORK COVER (NAS)
€ 3.00
10
44026040
ref: 10
SPRING-FORK
€ 25.50
11
44013034
ref: 11
TUBE-FORK INNER
€ 112.50
12
44010006
ref: 12
SEAL,FORK
€ 24.00
13
920491049
ref: 13
SEAL-OIL
€ 14.50
14
44007007
ref: 14
NUT-FORK OUTER TUBE
€ 41.50
15
44046012
ref: 15
RING-O,OUTER PIPE
€ 4.00
16
44015013
ref: 16
GUIDE-FORK INNER TUBE
€ 19.50
17
44005043
ref: 17
TUBE-L,H OUTER
€ 62.00
18
44006041
ref: 18
TUBE-R,H OUTER
€ 102.00
19
44045002
ref: 19
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
20
220B0408
ref: 20
SCREW-PAN-CROS
€ 0.50
21
44041007
ref: 21
BOLT-STRNG STEM HEAD
€ 11.50
22
44043016
ref: 22
WASHER,FORK UPPER HOL
€ 7.00
23
44039047
ref: 23
HOLDER-FORK UPPER
€ 142.50
24
44041044
ref: 24
BOLT-STEERING STEM HD
€ 6.50
25
461F0800
ref: 25
WASHER-SPRING,8MM
€ 0.50
26
44041045
ref: 26
BOLT-HEX HEAD,8MM
€ 15.00
27
410B0800
ref: 27
WASHER-PLAIN-SMALL,8M
€ 0.50
28
920151124
ref: 28
G4TR-D/E
NUT,LOCK,8MM
€ 3.50
28
92017013
ref: 28
KV100-A7
NUT,LOCK,8MM
€ 5.50
29
44037052
ref: 29
HOLDER-FORK UNDER
€ 151.50
30
44041010
ref: 30
BOLT-PINCH
€ 5.00
31
461F1000
ref: 31
WASHER-SPRING,10MM
€ 0.50
32
28001011
ref: 32
REFLECTOR-REFLEX,FRNT
€ 14.50
33
411B0500
ref: 33
G4TR-D/E
WASHER-PLAIN,5MM
€ 0.50
34
461F0500
ref: 34
WASHER-SPRING,5MM
€ 0.50
35
311B0500
ref: 35
NUT-HEX
€ 0.50
36
92047004
ref: 36
CONE-LOWER BEARING
€ 13.00
37
92037046
ref: 37
CLAMP,CABLE
€ 3.00
38
112G0610
ref: 38
BOLT,6X10
€ 0.50
