CRANKCASE ('70-'73)
G4TRE 1975 USA CALIFORNIA

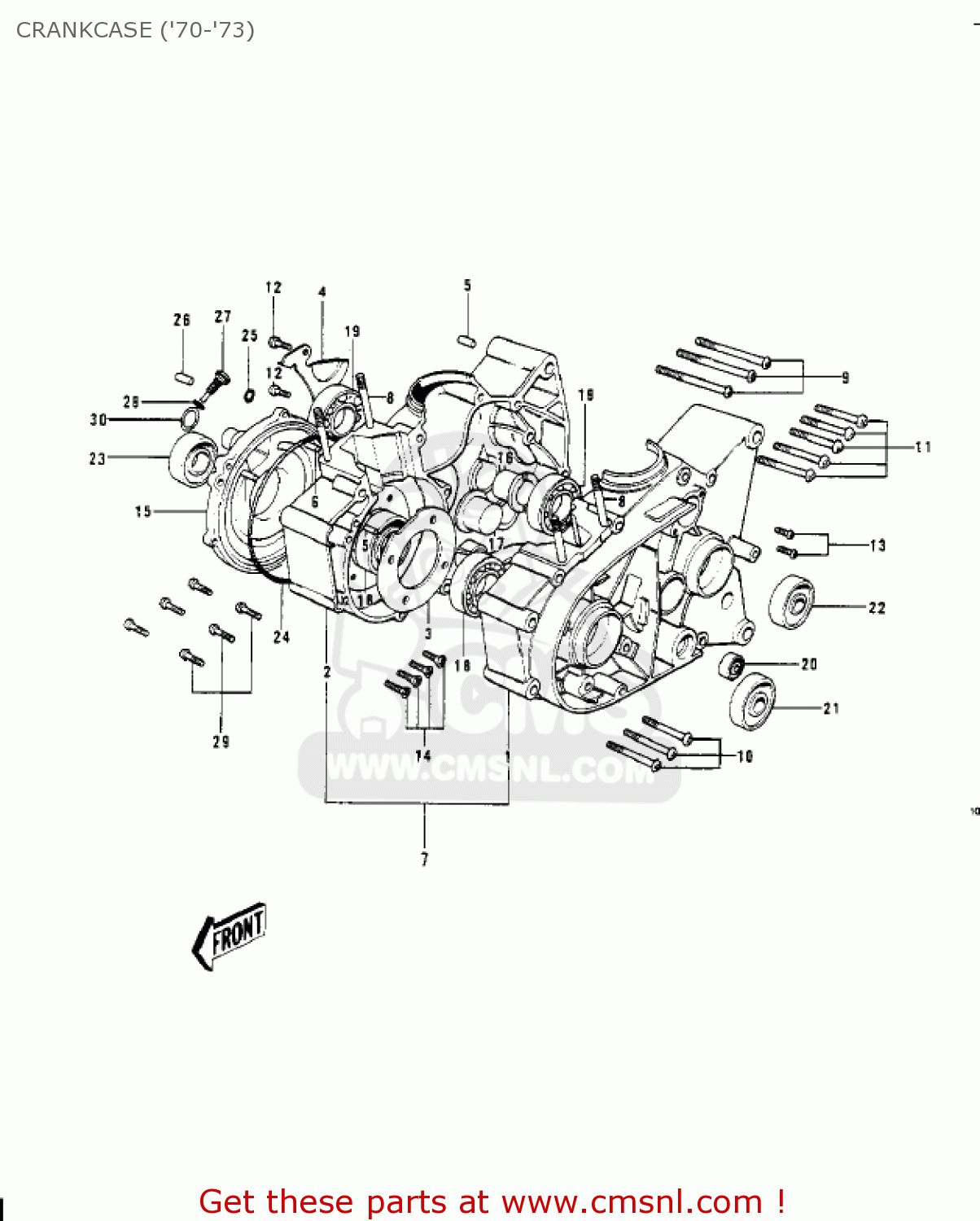

Crankcase ('70-'73) diagram G4TRE 1975 USA CALIFORNIA
CRANKCASE ('70-'73) G4TRE 1975 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
14002084
ref: 1
CRANKCASE,LH
€ 305.50
2
14003039
ref: 2
CRANKCASE,RH
€ 375.50
3
14014017
ref: 3
PLATE-POSITION
€ 3.50
4
14014008
ref: 4
PLATE-POSITION
€ 4.00
5
551A0816
ref: 5
PIN-DOWEL,8X16
€ 0.50
6
610A0512
ref: 6
ROLLER,5X12
€ 3.00
7
14001044
ref: 7
CRANKCASE SET
€ 615.00
8
172G08115
ref: 8
STUD,8X115
€ 8.00
9
220B0665
ref: 9
SCREW-PAN HEAD,6X65
€ 2.50
10
220B0660
ref: 10
SCREW-PAN HEAD,6X60
€ 2.50
11
220B0640
ref: 11
SCREW-PAN HEAD,6X40
€ 2.00
12
220B0625
ref: 12
SCREW-PAN HEAD,6X25
€ 1.50
13
220B0612
ref: 13
SCREW-PAN HEAD,6X12
€ 1.00
14
221B0616
ref: 14
SCREW-CNTSNK HD,6X16
€ 0.50
15
14019032
ref: 15
COVER,ROTARY DISC VAL
€ 70.50
16
92028069
ref: 16
BUSH-OUTPUT SHAFT
€ 25.00
17
92028025
ref: 17
BUSHING,L=23.5
€ 28.00
18
601B6204
ref: 18
BEARING-BALL,#6204C3
€ 8.00
19
601B6005
ref: 19
BEARING-BALL,#6005C3
€ 11.50
20
92049004
ref: 20
OIL SEAL SB12205
€ 6.00
21
920491240
ref: 21
SEAL-OIL
€ 10.50
22
92050032
ref: 22
OIL SEAL,SC32435.5
€ 38.00
23
920491250
ref: 23
SEAL-OIL
€ 12.00
24
92055010
ref: 24
RING-O,100MM
€ 6.00
25
92055029
ref: 25
RING-O,7.8X3.5
€ 2.50
26
92042017
ref: 26
PIN,DOWEL,8X16
€ 4.00
27
92062004
ref: 27
NOZZLE-OIL INJECTION
€ 7.00
28
92055011
ref: 28
'O' RING 5MM
€ 4.00
29
220B0620
ref: 29
SCREW-PAN HEAD,6X20
€ 2.50
30
670B3026
ref: 30
O RING,26MM
€ 3.00
