CLUTCH ('74-'75)
G4TRE 1975 USA CALIFORNIA

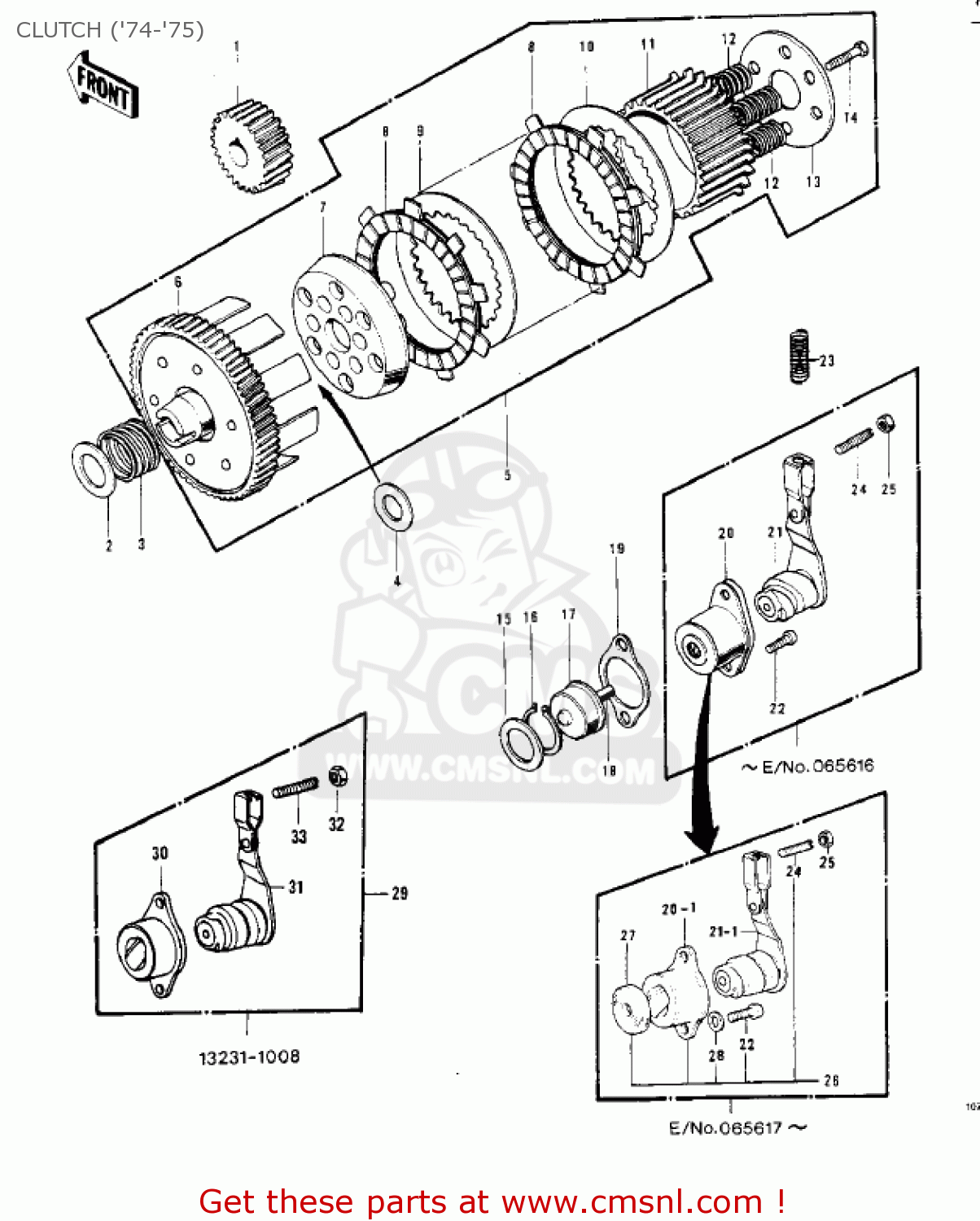

Clutch ('74-'75) diagram G4TRE 1975 USA CALIFORNIA
CLUTCH ('74-'75) G4TRE 1975 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
13121032
ref: 1
G4TR-D/E
GEAR-PRIMARY SPUR
€ 92.50
1
13121032
ref: 1
KV100-A7
GEAR-PRIMARY SPUR
€ 92.50
2
92022057
ref: 2
WASHER,25.5X36X1
€ 2.50
3
92081015
ref: 3
SPRING-CLUTCH DAMPER
€ 4.00
4
92022054
ref: 4
WASHER,16.5X27X1.4
€ 4.50
5
13081028
ref: 5
CLUTCH ASSY
€ 193.00
6
13095022
ref: 6
HOUSING,CLUTCH
€ 216.00
7
130861002
ref: 7
WHEEL,CLUTCH
€ 33.00
8
130881103
ref: 8
PLATE-FRICTION (MCA)
€ 11.00
9
130891009
ref: 9
PLATE-CLUTCH,STEEL (NAS)
€ 8.50
10
13090004
ref: 10
PLATE-CLUTCH,OUTER (NAS)
€ 11.50
11
130871011
ref: 11
HUB-CLUTCH
€ 74.00
12
92081012
ref: 12
SPRING-CLUTCH
€ 4.00
13
130911115
ref: 13
HOLDER,CLUTCH SPRING
€ 12.50
14
112G0516
ref: 14
BOLT-UPSET
€ 0.50
15
92022053
ref: 15
WASHER,THRUST,16.5X21
€ 2.50
16
480J1600
ref: 16
CIRCLIP-TYPE-C,16MM
€ 2.50
17
13113003
ref: 17
PUSHER-COMP-CLUTCH
€ 6.50
18
610A0710
ref: 18
ROLLER,7X10
€ 4.50
18
610A0714
ref: 18
USE FOR 13231-013/10
PIN,DOWEL,7X14
€ 2.50
19
110601197
ref: 19
GASKET,CLUTCH RELEASE (NAS)
€ 3.50
20
13231013
ref: 20
E/NO. 065616. SEE RE
RELEASE SET,CLUTCH
€ 55.00
20-1
132311008
ref: 20-1
E/NO. 065617-
RELEASE-ASSY-CLUTCH
€ 55.00
21
132311008
ref: 21
RELEASE-ASSY-CLUTCH
€ 55.00
21-1
132311008
ref: 21-1
USE WITH 13231-013
RELEASE-ASSY-CLUTCH
€ 55.00
22
220B0616
ref: 22
SCREW-PAN HEAD,6X16
€ 2.50
23
92081096
ref: 23
SPRING-CLUTCH RELEASE
€ 3.50
24
291Z0628
ref: 24
SCREW-SLOTTED,6X28
€ 2.50
24
291Z0628
ref: 24
SCREW-SLOTTED,6X28
€ 2.50
25
311B0600
ref: 25
NUT,6MM
€ 0.50
26
13231013
ref: 26
E/NO 065617-
RELEASE SET,CLUTCH
€ 55.00
27
92050071
ref: 27
USE WITH 13231-013/1
OIL SEAL
€ 7.00
28
410B0600
ref: 28
E/NO. 065617-
WASHER-PLAIN-SMALL,6M
€ 0.50
29
132311008
ref: 29
USE WITH 92050-071
RELEASE-ASSY-CLUTCH
€ 55.00
30
131181001
ref: 30
RELEASE-CLUTCH OUTER
€ 16.00
31
131021016
ref: 31
USE FOR 13231-1008
RELEASE-COMP-CLUTCH,I
€ 30.00
32
312B0600
ref: 32
USE FOR 13231-1008
NUT,6MM
€ 0.50
33
291H0616
ref: 33
SCREW,SLOTTED,6X16
€ 4.00
