IGNITION/GENERATOR ('70-'73)
G4TRC 1973 USA CANADA

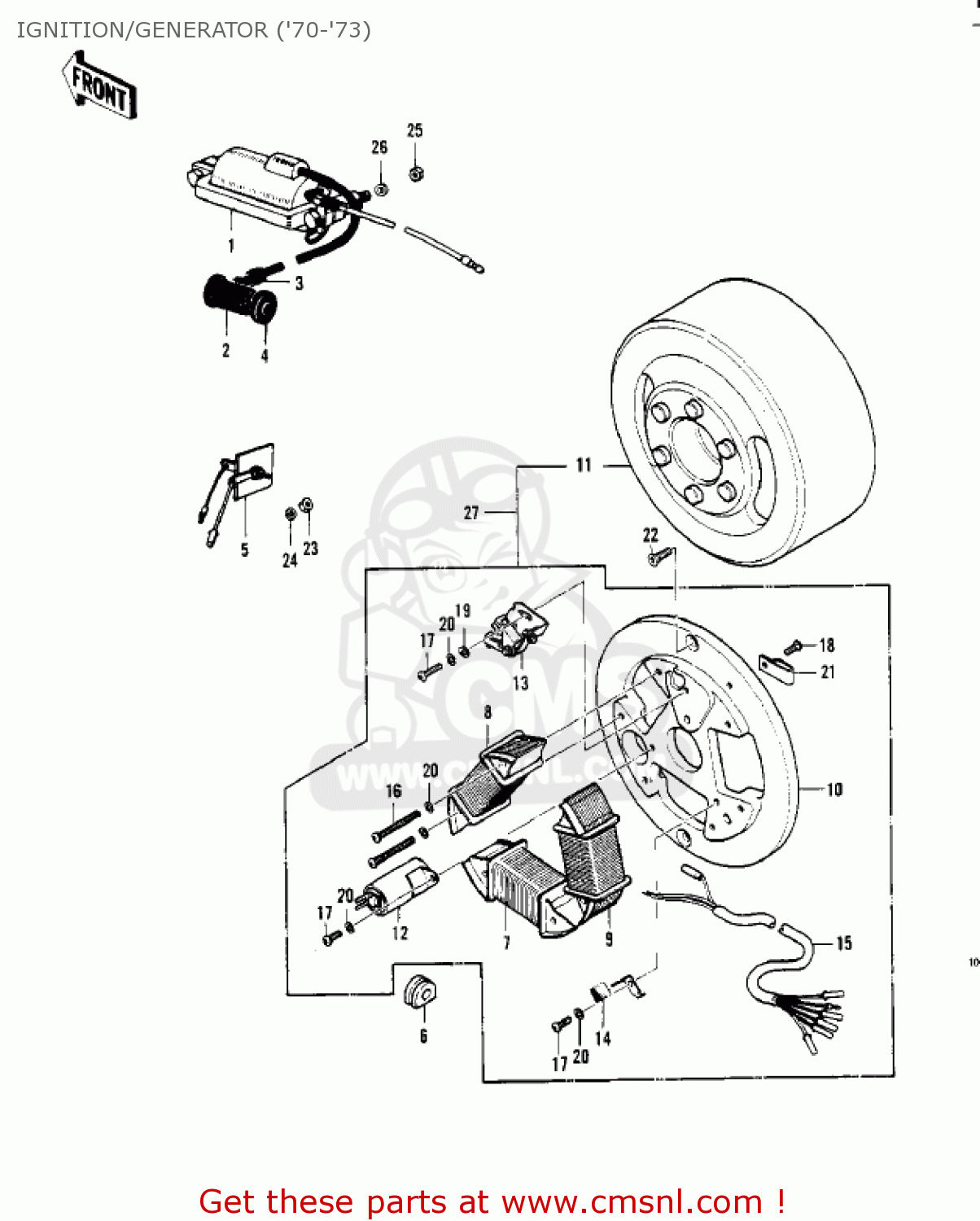

Ignition/generator ('70-'73) diagram G4TRC 1973 USA CANADA
IGNITION/GENERATOR ('70-'73) G4TRC 1973 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
211211047
ref: 1
COIL-IGNITION
€ 115.50
2
21130016
ref: 2
CAP-SPARK PLUG
€ 16.50
2
21130016
ref: 2
CAP-SPARK PLUG
€ 16.50
3
21131004
ref: 3
GROMMET,PLUG CAP
€ 7.00
4
21132005
ref: 4
GROMMET,SPARK PLUG CP
€ 2.50
5
210615001
ref: 5
RECTIFIER
€ 29.00
6
21017002
ref: 6
GROMMET
€ 3.00
7
21047010
ref: 7
USE FOR 21002-018/02
COIL-LIGHTING
€ 54.00
8
21047011
ref: 8
USE FOR 21002-018/02
COIL,LIGHTING,B
€ 41.50
9
21049006
ref: 9
USE FOR 21002-018/02
COIL-EXCITING
€ 94.00
10
210481002
ref: 10
PLATE-COIL,MAGNETO
€ 46.50
11
210021055
ref: 11
NO LONGER AVAILABLE
MAGNETO
€ 481.00
12
21013006
ref: 12
CONDENSER
€ 21.00
13
21008006
ref: 13
BREAKER ASSY-CONTACT
€ 33.50
14
21019005
ref: 14
BRUSH,OIL
€ 3.00
15
21029014
ref: 15
USE FOR 21002-018/02
MAGENTO WIRING HARNESS
€ 35.00
16
220E0430
ref: 16
SCREW-PAN-CROS
€ 2.50
17
220B0406
ref: 17
SCREW-PAN-CROS,4X6
€ 2.50
18
220B0412
ref: 18
SCREW-PAN CROS 4X12
€ 0.50
19
410B0400
ref: 19
WASHER-PLAIN-SMALL,4M
€ 0.50
20
461F0400
ref: 20
WASHER-SPRING,4MM
€ 0.50
21
21037002
ref: 21
CLAMP,WIRING HARNESS
€ 2.50
22
221B0614
ref: 22
SCREW-CNTSNK HD,6X14
€ 2.50
23
311B0500
ref: 23
NUT-HEX
€ 0.50
24
461F0500
ref: 24
WASHER-SPRING,5MM
€ 0.50
25
311B0600
ref: 25
NUT,6MM
€ 0.50
26
461F0600
ref: 26
WASHER-SPRING,6MM
€ 0.50
27
21002018
ref: 27
MAGNETO FLYWHEEL
€ 253.00
27
21002027
ref: 27
NO LONGER AVAILABLE
MAGNETO ASSEMBLY
€ 256.00
27
210021055
ref: 27
NO LONGER AVAILABLE
MAGNETO
€ 481.00
27
210021055
ref: 27
MAGNETO
€ 481.00
