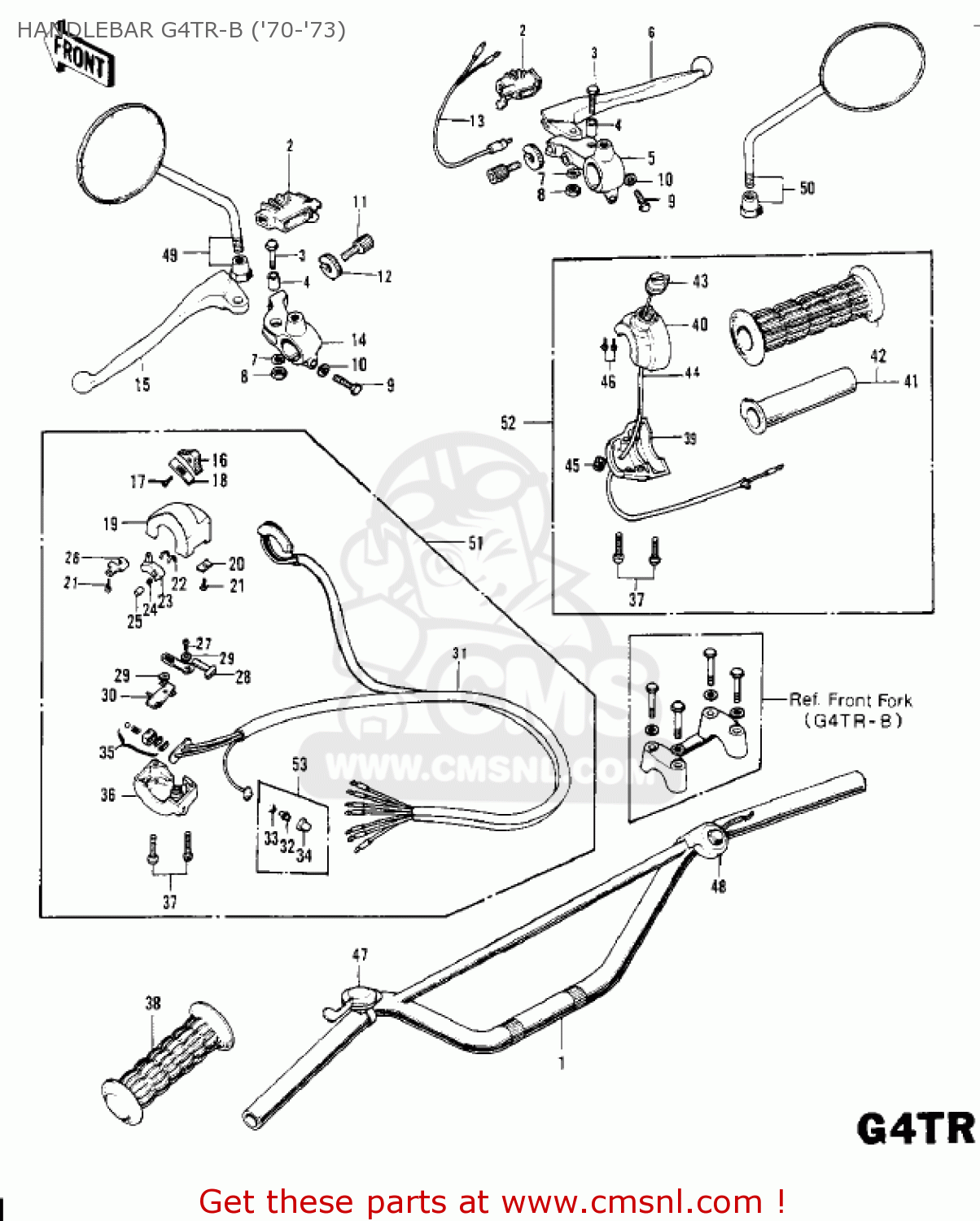

HANDLEBAR G4TR-B ('70-'73)

ref

part #

description

quantity

1

46004004
ref: 1

HANDLEBAR

€ 236.50

2

46071002
ref: 2

DUST COVER

€ 12.50

3

92007020
ref: 3

BOLT-HEX HEAD,5X20

€ 2.50

4

46059011
ref: 4

COLLAR,LEVER

€ 3.50

5

4606000921
ref: 5

HOLDER,BRAKE LEVER,FR

€ 27.00

6

46058004
ref: 6

LEVER-GRIP,FRONT BRAK

€ 24.00

7

464H0500
ref: 7

WASHER-LOCK,5MM

€ 0.50

8

312B0500
ref: 8

NUT-HEX,5MM

€ 0.50

9

110N0625
ref: 9

BOLT-HEX HEAD,6X25

€ 3.50

10

410B0600
ref: 10

WASHER-PLAIN-SMALL,6M

€ 0.50

11

46055009
ref: 11

SCREW,CABLE ASJUST

€ 13.00

12

46056005
ref: 12

NUT-LOCK

€ 6.00

13

27021004
ref: 13

SWITCH,FR BRAKE LAMP

€ 23.00

14

4609401121
ref: 14

HOLDER-CLUTCH LEV,BLK

€ 23.00

15

46092015
ref: 15

LEVER-GRIP,CLUTCH

€ 11.50

16

46044011
ref: 16

KNOB-L.H SWITCH

€ 6.00

17

221B0308A
ref: 17

SCREW-CNTSNK HD,3X8

€ 2.50

18

46031003
ref: 18

SPRING-L.H SW KNOB

€ 1.50

19

46086013
ref: 19

CASE-L.H SWITCH UPPER

€ 9.50

20

46085013
ref: 20

HOLDER-L.H SW UPPER,A

€ 1.50

21

220B0305A
ref: 21

SCREW-PAN HEAD,3X5

€ 1.00

22

46080002
ref: 22

PLATE-L.H SW CONTACT

€ 1.50

23

46089003
ref: 23

SWITCH-L.H

€ 2.50

24

46031004
ref: 24

SPRING-L.H SWITCH

€ 1.50

25

46079002
ref: 25

CONTACT-L.H SWITCH

€ 1.50

26

46085014
ref: 26

HOLDER-L.H SW LOWER,B

€ 1.00

27

220B0308
ref: 27

SCREW-PAN-CROS

€ 0.50

28

46044006
ref: 28

KNOB-SWITCH

€ 2.50

29

92095010
ref: 29

WASHER

€ 2.50

30

46085015
ref: 30

HOLDER-L.H SW LOWER

€ 1.00

31

46082017
ref: 31

WIRING HARNESS-L.H SW

€ 12.50

32

270101009
ref: 32

SWITCH ASSY,HORN BUTN

€ 5.50

33

270101009
ref: 33

SWITCH ASSY,HORN BUTN

€ 5.50

34

270101009
ref: 34

SWITCH ASSY,HORN BUTN

€ 5.50

35

46089004
ref: 35

SLIDE BLOCK AY-L.H SW

€ 6.50

36

46077015
ref: 36

CASE-L.H SWITCH LOWER

€ 9.50

37

220B0525
ref: 37

SCREW-PAN-CROS,5X25

€ 2.50

38

46075018
ref: 38

RUBBER-L.H GRIP

€ 10.00

39

46023008
ref: 39

CASE-R.H LOWER

€ 17.50

40

46041008
ref: 40

CASE-R.H UPPER

€ 23.50

41

46019020
ref: 41

GRIP ASSY-THROTTLE

€ 14.00

42

46061013
ref: 42

RUBBER-R.H GRIP

€ 9.50

43

46027008
ref: 43

SWITCH-ENGINE STOP

€ 15.50

44

46082021
ref: 44

WIRING HARNESS-STP SW

€ 2.00

45

92071060
ref: 45

GROMMET-WIRING HARNES

€ 0.50

46

220B0305A
ref: 46

SCREW-PAN HEAD,3X5

€ 1.00

47

46109012
ref: 47

LEVER ASSY, STARTER

€ 16.00

48

46131002
ref: 48

LEVER ASSY-CHANGE

€ 37.00

49

56003009
ref: 49

MIRROR-ASSY,LH

€ 50.00

50

56002020
ref: 50
OPTION

MIRROR-ASSY,RH

€ 47.50

51

46091004
ref: 51

CASE ASSY-L.H

€ 88.00

52

4601802010
ref: 52

CASE ASSY,R.H.

€ 59.50

53

270101009
ref: 53

SWITCH ASSY,HORN BUTN

€ 5.50
