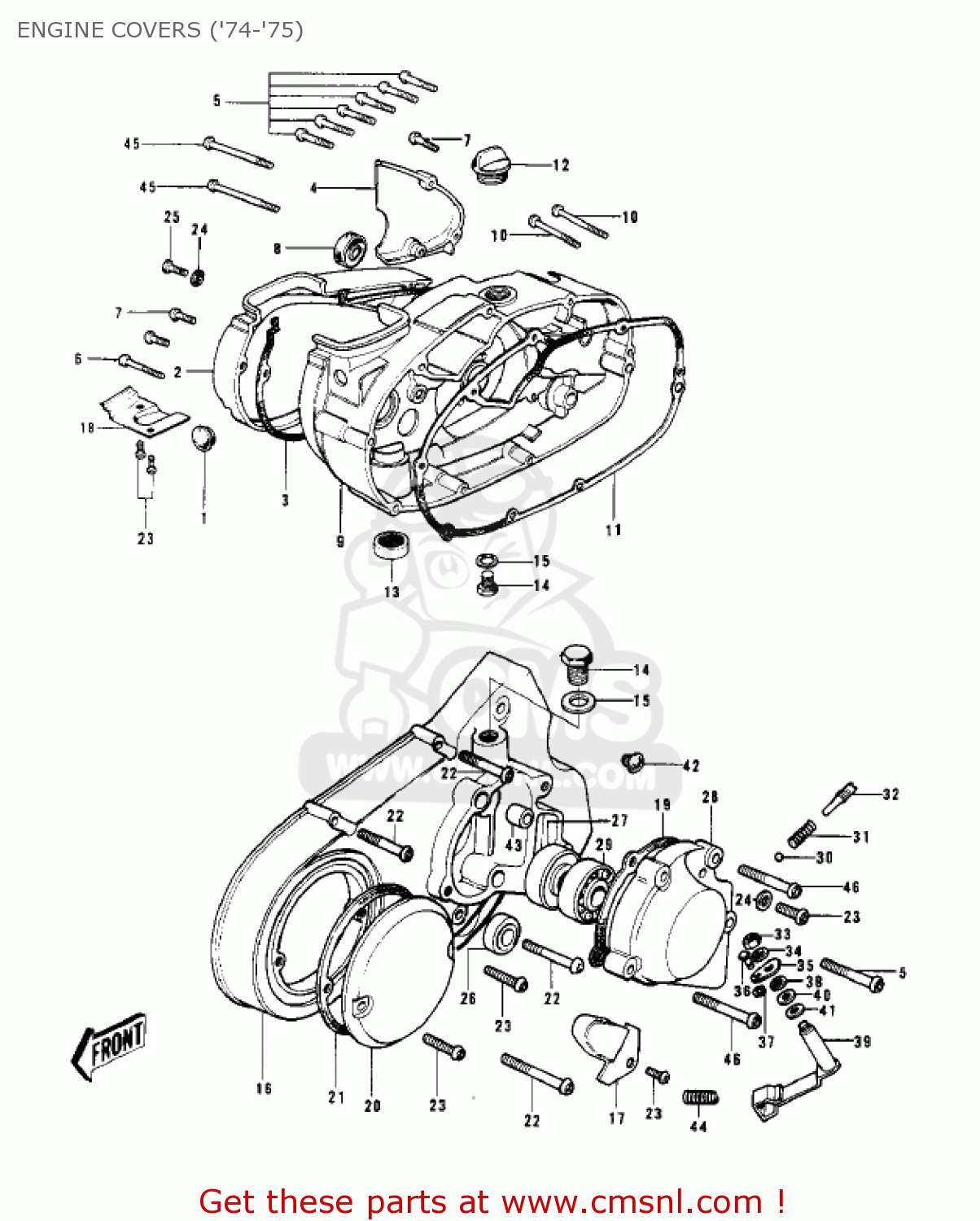

ENGINE COVERS ('74-'75)

ref

part #

description

quantity

1

14039001
ref: 1

CAP,RUBBER

€ 3.00

2

140301005
ref: 2

COVER,CARB,BARREL

€ 59.50

3

110601201
ref: 3

GASKET,CARBURETOR COV (NAS)

€ 20.00

4

1403005080
ref: 4

COVER,OIL PUMP,BUF

€ 20.50

5

220B0630
ref: 5

SCREW-PAN HEAD,6X30

€ 2.50

6

220B0635
ref: 6

SCREW-PAN HEAD,6X35

€ 1.00

7

220B0620
ref: 7

SCREW-PAN HEAD,6X20

€ 2.50

8

653B142507
ref: 8

OIL SEAL,TB14257

€ 14.50

9

140321017
ref: 9

COVER,R.H ENGINE

€ 103.00

10

220B0645
ref: 10

SCREW-PAN HEAD,6X45

€ 2.50

11

110601198
ref: 11

GASKET,CLUTCH COVER (NAS)

€ 17.00

12

16115018
ref: 12

PLUG,OIL FILLER

€ 7.00

13

16116006
ref: 13

PLUG,25X12

€ 10.50

14

92067001
ref: 14

PLUG-OIL DRAIN

€ 3.00

15

92065058
ref: 15

GASKET, 10,5X16X1 (NAS)

€ 2.50

16

1403106380
ref: 16

ENGINE COVER,LH,BUFF

€ 163.00

17

14036004
ref: 17

ENGINE COVER CAP,LH

€ 18.50

18

140251137
ref: 18

COVER,DRAIN PLUG

€ 7.00

19

14051002
ref: 19

ENGINE COVER CAP GASKET,LH (MCA)

€ 17.00

20

1402700779
ref: 20

COVER-BRK POINT,CR

€ 16.00

21

14050002
ref: 21

GASKET-BREAKER COVER (MCA)

€ 9.50

22

220B0665
ref: 22

SCREW-PAN HEAD,6X65

€ 2.50

23

220B0612
ref: 23

SCREW-PAN HEAD,6X12

€ 1.00

24

92022077
ref: 24

WASHER,6.1X12X1

€ 0.50

25

92001121
ref: 25

BOLT,HEX HEAD,6X14

€ 2.50

26

920491249
ref: 26

SEAL-OIL

€ 6.50

27

92050012
ref: 27

OIL SEAL,SC38556

€ 36.00

28

140751001
ref: 28
INCLUDES REF NO'S 29

ENGINE COVER CAP ASSEMBLY,BUFF

€ 87.00

28

140751001
ref: 28

ENGINE COVER CAP ASSEMBLY,BUFF

€ 87.00

29

601B6005
ref: 29

BEARING-BALL,#6005C3

€ 11.50

30

600A0800
ref: 30

BALL-STEEL,1/4

€ 0.50

31

92081075
ref: 31

SPRING

€ 11.00

32

92066015
ref: 32

ENGINE COVER CAP PLUG,LH

€ 11.00

33

312B0600
ref: 33

NUT,6MM

€ 0.50

34

461F0600
ref: 34

WASHER-SPRING,6MM

€ 0.50

35

13204002A
ref: 35

LEVER,A

€ 30.00

36

13197001
ref: 36

RETAINER SHIFT ROD

€ 23.50

37

482K4000
ref: 37

CIRCLIP-TYPE-E,4MM

€ 0.50

38

13211001
ref: 38

WASHER,WAVE

€ 8.00

39

13234002
ref: 39

SHIFT LEVER SHAFT ASSEMBLY

€ 64.50

40

92054015
ref: 40

OIL SEAL,VC8144

€ 4.50

41

410B0800
ref: 41

WASHER-PLAIN-SMALL,8M

€ 0.50

42

92074019
ref: 42

PLUG-RUBBER

€ 2.50

43

920431037
ref: 43

PIN,DOWEL,10X8.2X14

€ 0.50

44

92081099
ref: 44

CHANGE CABLE SPRING

€ 8.00

45

220B0675
ref: 45

SCREW,PAN HEAD,6X75

€ 3.00

46

220B0640
ref: 46

SCREW-PAN HEAD,6X40

€ 2.00

all assemblies
