TRANSMISSION/CHANGE DRUM ('70-'7
G4TRB 1972 USA CANADA

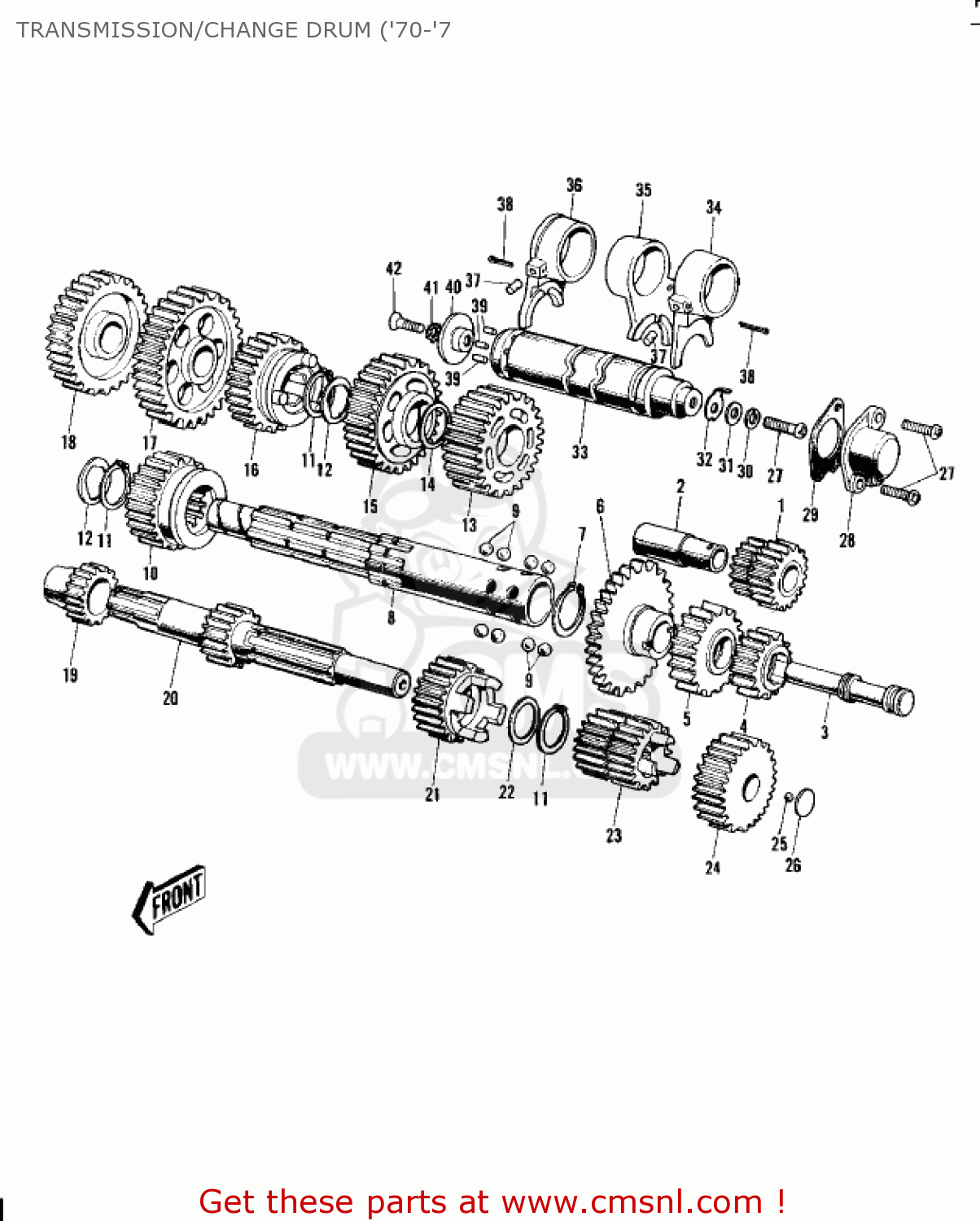

Transmission/change drum ('70-'7 diagram G4TRB 1972 USA CANADA
TRANSMISSION/CHANGE DRUM ('70-'7 G4TRB 1972 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13177005
ref: 1
COUNTER GEAR
€ 129.50
2
13180001
ref: 2
COUNTER SHAFT
€ 77.50
3
490471005
ref: 3
SHIFT ROD
€ 40.50
3
490471005
ref: 3
SHIFT ROD
€ 40.50
4
13177001
ref: 4
GEAR,LOW
€ 90.50
5
13177004
ref: 5
GEAR,HIGH
€ 189.00
6
13144038
ref: 6
ENGINE SPROCKET,15T
€ 225.00
7
480J2400
ref: 7
CIRCLIP-TYPE-C,24MM
€ 3.50
8
13128035
ref: 8
G4TR/A
SHAFT-TRANSMISSION OU
€ 109.00
8
13128035
ref: 8
G4TR-B/C
SHAFT-TRANSMISSION OU
€ 109.00
9
600A1000
ref: 9
BALL-STEEL,5/16
€ 0.50
10
13137012
ref: 10
TOP GEAR-OUTPUT SHAFT
€ 28.50
11
92033014
ref: 11
RING-SNAP,16MM
€ 3.50
12
92024030
ref: 12
WASHER,TOOTHED,18.5X2
€ 4.00
13
13133005
ref: 13
GEAR,OUTPUT 3RD,26T
€ 46.50
14
92022146
ref: 14
WASHER,THRUST,18.5X23
€ 4.50
15
13131008
ref: 15
GEAR,OUTPUT 2ND,30T
€ 40.50
16
131291708
ref: 16
GEAR,OUTPUT 4TH,24T
€ 70.00
17
13129010
ref: 17
GEAR,OUTPUT LOW,35T
€ 66.50
18
13073004
ref: 18
GEAR-SPUR,KICKSTARTER
€ 55.50
19
13075004
ref: 19
GEAR-SPUR,KICKSTARTER
€ 40.50
20
13127032
ref: 20
SHAFT,DRIVE
€ 76.00
21
131291053
ref: 21
GEAR,INPUT 4TH,16T
€ 23.50
22
92022118
ref: 22
WASHER,18.5X23X1.2
€ 3.00
23
131291052
ref: 23
GEAR,INPUT 2ND&3RD,17
€ 55.00
24
131291927
ref: 24
GEAR, INPUT TOP 24T
€ 25.00
25
600A0700
ref: 25
BALL-STEEL,7/32
€ 2.50
26
92022115
ref: 26
WASHER,THRUST
€ 2.50
27
220B0616
ref: 27
SCREW-PAN HEAD,6X16
€ 2.50
28
131511001
ref: 28
SWITCH-COMP,NEUTRAL
€ 9.50
29
13146002
ref: 29
GASKET,NEUTRAL SWITCH (NAS)
€ 2.50
30
461F0600
ref: 30
WASHER-SPRING,6MM
€ 0.50
31
410B0600
ref: 31
WASHER-PLAIN-SMALL,6M
€ 0.50
32
210071003
ref: 32
ROTOR,TOP & NEUTRAL
€ 4.50
33
13239005
ref: 33
DRUM ASSY-GEAR CHANGE
€ 165.00
33
13239005
ref: 33
INCLUDES REF #'S 39-
DRUM ASSY-GEAR CHANGE
€ 165.00
34
13140009
ref: 34
FORK-SELECTOR,3RD
€ 46.50
35
13140017
ref: 35
FORK-SELECTOR,4TH-TOP
€ 120.00
36
13140010
ref: 36
FORK-SHIFT,LOW&2ND
€ 81.50
37
92043005
ref: 37
PIN,DOWEL,8X15
€ 4.50
38
550D3020
ref: 38
PIN-COTTER,3.0X20
€ 2.00
39
92042014
ref: 39
PIN-GEAR CHANGE DRUM
€ 0.50
40
13142008
ref: 40
PLATE-CHANGE DRUM PIN
€ 4.00
41
464H0600
ref: 41
WASHER-LOCK,6MM
€ 0.50
42
220B0612
ref: 42
SCREW-PAN HEAD,6X12
€ 1.00
