CARBURETOR G4TR-E,KV100-A7 ('74-
G4TRB 1972 USA CANADA

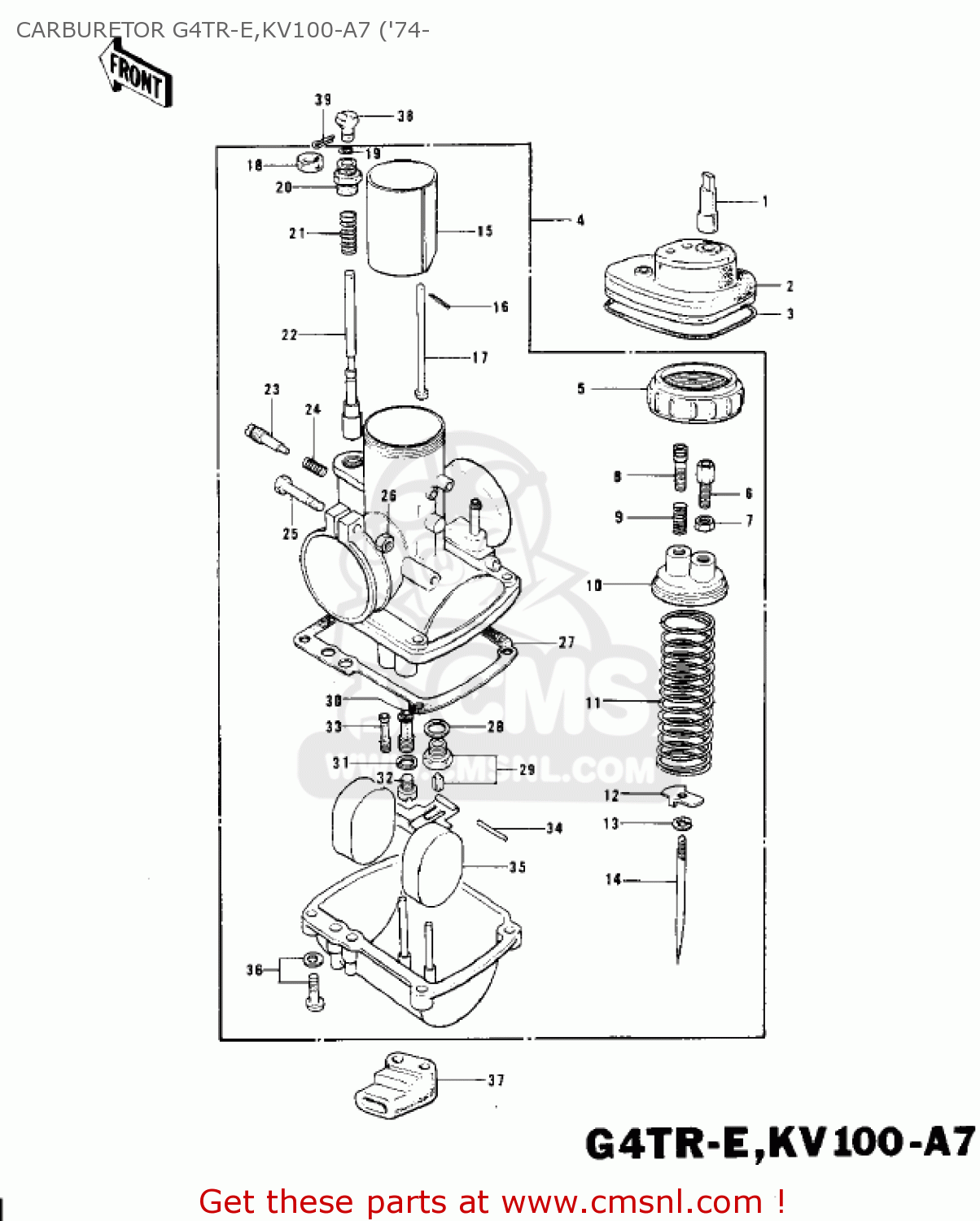

Carburetor g4tr-e,kv100-a7 ('74- diagram G4TRB 1972 USA CANADA
CARBURETOR G4TR-E,KV100-A7 ('74- G4TRB 1972 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
16147001
ref: 1
PLUG,12X40
€ 3.00
2
14038035
ref: 2
BOOT,CARBURETOR
€ 9.50
3
92081047
ref: 3
SPRING,COIL
€ 7.50
4
16001233
ref: 4
CARBURETOR ASSEMBLY
€ 310.00
5
16004010
ref: 5
CAP-CHAMBER,MIXING
€ 13.50
6
16002002
ref: 6
ADJUSTER-CABLE,STARTE
€ 8.00
7
16003004
ref: 7
NUT-CABLE ADJUST LOCK
€ 4.50
8
16021002
ref: 8
SCREW-THROTTLE STOP
€ 12.00
9
16022005
ref: 9
SPRING-THR STOP SCREW
€ 5.50
10
16005005
ref: 10
TOP-CHAMBER,MIXING
€ 12.50
11
16006013
ref: 11
SPRING-THROTTLE VALVE
€ 10.00
12
16007020
ref: 12
SEAT-SPRING,THROTTLE
€ 7.00
13
16008010
ref: 13
CLAMP,E-TYPE
€ 5.00
14
16009059
ref: 14
NEEDLE-JET,4EJ7
€ 26.50
15
16025057
ref: 15
VALVE-THROTTLE,CA2.0
€ 80.50
16
550D1210
ref: 16
PIN-COTTER,1.2X10
€ 1.50
17
16024012
ref: 17
ROD,THROTTLE VALVE ST
€ 5.50
18
16036012
ref: 18
BOOT,STARTER PLUNGER
€ 4.50
19
920371077
ref: 19
CLAMP
€ 3.00
20
16012010
ref: 20
CAP-STARTER PLUNGER
€ 8.00
21
16013010
ref: 21
SPRING,STARTER PLUNGR
€ 3.50
22
16016012
ref: 22
PLUNGER,STARTER
€ 28.00
23
16014002
ref: 23
SCREW-PILOT AIR
€ 11.00
24
16022007
ref: 24
SPRING-THR STOP SCREW
€ 5.50
25
16010004
ref: 25
SCREW-CLAMP
€ 3.50
26
311B0600
ref: 26
NUT,6MM
€ 0.50
27
16019021
ref: 27
GASKET,FLOAT CHAMBER (NAS)
€ 13.00
28
16029002
ref: 28
WASHER-VALVE SEAT
€ 2.50
29
16030001
ref: 29
VALVE-FLOAT,#2.0
€ 40.50
30
16017081
ref: 30
JET,NEEDLE,#O-4
€ 69.50
31
16034001
ref: 31
WASHER-MAIN JET
€ 2.50
32
92063109
ref: 32
STD
JET-MAIN,#75R
€ 10.50
32
920631012
ref: 32
OPTION
JET-MAIN,#70R
€ 8.00
32
92063108
ref: 32
OPTION
JET-MAIN,#72.5R
€ 9.00
32
920631032
ref: 32
OPTION
JET-MAIN,#A77.5R
€ 10.00
32
920631030
ref: 32
OPTION
JET-MAIN,#A80R
€ 11.00
33
92064020
ref: 33
JET-PILOT,#17.5
€ 13.50
34
16032003
ref: 34
FLOAT PIN
€ 4.00
35
16031015
ref: 35
FLOAT
€ 40.50
36
16033012
ref: 36
SCREW-FLOAT CHAMBER
€ 1.00
37
16136007
ref: 37
GROMMET,OVERFLOW PIPE
€ 5.50
38
92077022
ref: 38
KNOB,CARBURETOR
€ 7.00
39
550D1615
ref: 39
PIN-COTTER,1.6X15
€ 1.50
