HANDLEBAR ('69-'73)
G3SSA 1971 USA CANADA

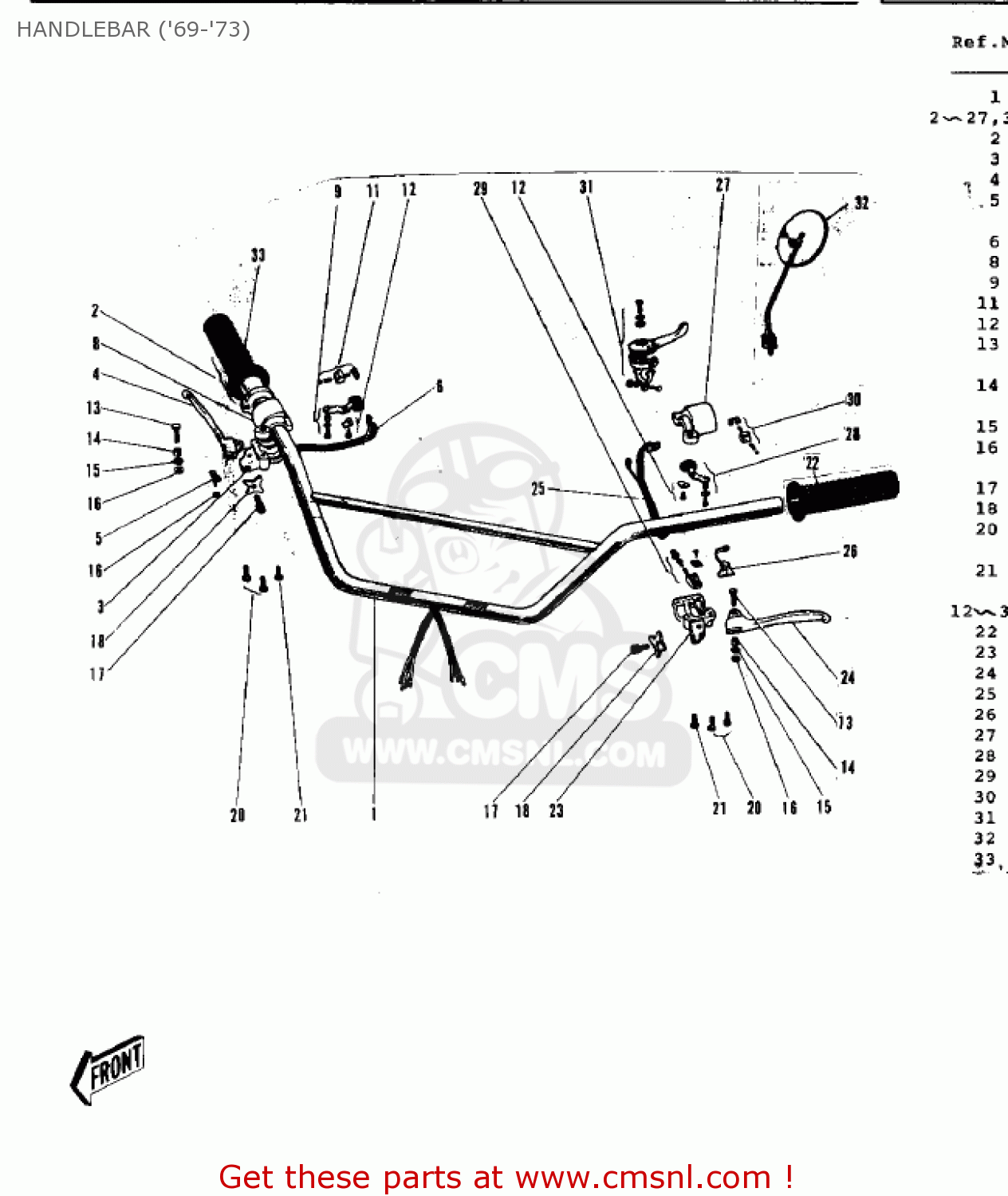

Handlebar ('69-'73) diagram G3SSA 1971 USA CANADA
HANDLEBAR ('69-'73) G3SSA 1971 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
46004022
ref: 1
HANDLEBER
€ 34.00
?
460171071
ref: ?
Includes items 2 - 2
GRIP-ASSY-RIGHT
€ 77.00
2
46019005
ref: 2
GRIP-ASSY,THROTTLE
€ 36.00
3
46022012
ref: 3
CASE-R.H SWITCH LOWER
€ 22.00
4
46058004
ref: 4
LEVER-GRIP,FRONT BRAK
€ 24.00
5
46024001
ref: 5
OLD JIS THREAD
SPRING-THROTTLE GRIP
€ 0.50
5
46024002
ref: 5
I.S.O. THREAD
SPRING-THROTTLE GRIP
€ 0.50
6
46032010
ref: 6
WIRING HARNESS-R.H SW
€ 2.50
8
460171071
ref: 8
GRIP-ASSY-RIGHT
€ 77.00
9
46043002
ref: 9
KNOB ASSY-R.H SWITCH
€ 2.50
11
46045004
ref: 11
SLIDE BLOCK AY-R.H SW
€ 4.50
12
46085012
ref: 12
HOLDER-WIRING HARNESS
€ 1.50
13
92007018
ref: 13
OLD JIS THREAD
BOLT-HEX HEAD,5X20
€ 2.00
13
92007020
ref: 13
I.S.O. THREAD
BOLT-HEX HEAD,5X20
€ 2.50
14
46059005
ref: 14
OLD JIS THREAD
COLLAR-LEVER
€ 1.00
14
46059011
ref: 14
I.S.O. THREAD
COLLAR,LEVER
€ 3.50
15
464H0500
ref: 15
WASHER-LOCK,5MM
€ 0.50
16
312B0500
ref: 16
OLD JIS THREAD
NUT-HEX,5MM
€ 0.50
16
312B0500
ref: 16
I.S.O. THREAD
NUT-HEX,5MM
€ 0.50
17
46055010
ref: 17
SCREW,CABLE ADJUST
€ 21.00
18
46056001
ref: 18
NUT-ADJUST SCREW LOCK
€ 2.50
20
220B0520
ref: 20
OLD JIS THREAD
SCREW-PAN-CROS
€ 0.50
20
220B0520
ref: 20
I.S.O. THREAD
SCREW-PAN-CROS
€ 0.50
21
220B0518
ref: 21
OLD JIS THREAD
SCREW-PAN HEAD,5X18
€ 2.50
21
220B0518
ref: 21
I.S.O. THREAD
SCREW-PAN HEAD,5X18
€ 2.50
12-30
46074017
ref: 12-30
GRIP ASSY-L.H
€ 43.00
22
46075007
ref: 22
GRIP,LH
€ 15.00
23
46077008
ref: 23
CASE-L.H SWITCH LOWER
€ 20.00
24
46092015
ref: 24
LEVER-GRIP,CLUTCH
€ 11.50
25
46082015
ref: 25
WIRING HARNESS-L.H SW
€ 2.50
26
46085008
ref: 26
HOLDER-L.H SWITCH
€ 9.00
27
46086007
ref: 27
CASE-L.H SWITCH UPPER
€ 12.00
28
46088001
ref: 28
KNOB ASSY-L.H SWITCH
€ 5.50
29
46078003
ref: 29
SWITCH ASSY LH BUTTON
€ 5.50
30
46089002
ref: 30
SLIDE BLOCK AY-L.H SW
€ 7.00
31
46109012
ref: 31
LEVER ASSY, STARTER
€ 16.00
32
56002024
ref: 32
MIRROR-ASSY,RH
€ 60.00
33
46061009
ref: 33
RUBBER-R.H GRIP
€ 4.00
