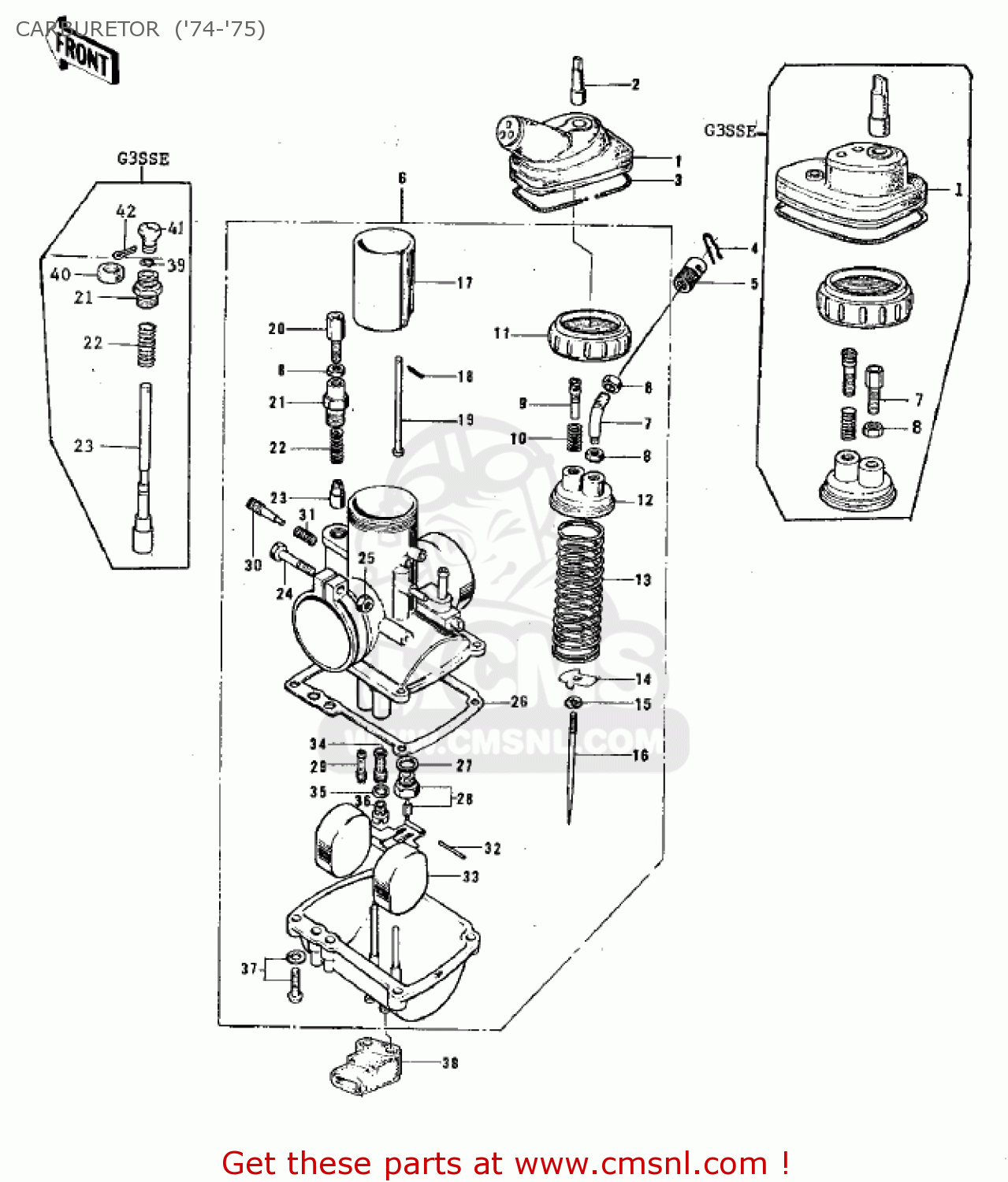

CARBURETOR ('74-'75)

ref

part #

description

quantity

1

14038033
ref: 1

BOOT,CARBURETOR

€ 12.00

1

14038035
ref: 1
G3SSE

BOOT,CARBURETOR

€ 9.50

2

16147001
ref: 2

PLUG,12X40

€ 3.00

3

92081047
ref: 3

SPRING,COIL

€ 7.50

4

92036018
ref: 4

CIRCLIP

€ 2.50

5

16002007
ref: 5

ADJUSTER-CABLE,THROTT

€ 7.50

6

16001194
ref: 6
VM 193C

CARBURETOR ASSEMBLY

€ 308.50

6

16001230
ref: 6
G3SSE

CARBURETOR ASSY

€ 184.50

7

16077001
ref: 7

GUIDE,CABLE

€ 6.50

7

16002002
ref: 7
G3SSE

ADJUSTER-CABLE,STARTE

€ 8.00

8

16003004
ref: 8

NUT-CABLE ADJUST LOCK

€ 4.50

8

16003004
ref: 8
G3SSE

NUT-CABLE ADJUST LOCK

€ 4.50

9

16021007
ref: 9

THROTTLE STOP SCREW

€ 13.50

10

16022005
ref: 10

SPRING-THR STOP SCREW

€ 5.50

11

16004010
ref: 11

CAP-CHAMBER,MIXING

€ 13.50

12

16005005
ref: 12

TOP-CHAMBER,MIXING

€ 12.50

13

16006013
ref: 13

SPRING-THROTTLE VALVE

€ 10.00

14

16007020
ref: 14

SEAT-SPRING,THROTTLE

€ 7.00

15

16008010
ref: 15

CLAMP,E-TYPE

€ 5.00

16

16009059
ref: 16

NEEDLE-JET,4EJ7

€ 26.50

17

16025057
ref: 17
CA 2.0

VALVE-THROTTLE,CA2.0

€ 80.50

18

550D1210
ref: 18

PIN-COTTER,1.2X10

€ 1.50

19

16024012
ref: 19

ROD,THROTTLE VALVE ST

€ 5.50

20

16002002
ref: 20

ADJUSTER-CABLE,STARTE

€ 8.00

21

16012004
ref: 21

CAP-STARTER PLUNGER

€ 7.50

21

16012021
ref: 21
G3SSE

CAP-STARTER PLUNGER

€ 11.50

22

16013003
ref: 22

SPRING-STARTER PLUNG

€ 4.00

22

16013010
ref: 22
G3SSE

SPRING,STARTER PLUNGR

€ 3.50

23

16016002
ref: 23

PLUNGER,STARTER

€ 20.00

23

16016012
ref: 23
G3SSE

PLUNGER,STARTER

€ 28.00

24

16010004
ref: 24

SCREW-CLAMP

€ 3.50

25

311B0600
ref: 25

NUT,6MM

€ 0.50

26

16019021
ref: 26

GASKET,FLOAT CHAMBER (NAS)

€ 13.00

27

16029002
ref: 27

WASHER-VALVE SEAT

€ 2.50

28

16030001
ref: 28

VALVE-FLOAT,#2.0

€ 40.50

29

92064020
ref: 29

JET-PILOT,#17.5

€ 13.50

30

16014002
ref: 30

SCREW-PILOT AIR

€ 11.00

31

16022007
ref: 31

SPRING-THR STOP SCREW

€ 5.50

32

16032003
ref: 32

FLOAT PIN

€ 4.00

33

16031015
ref: 33

FLOAT

€ 40.50

34

16017068
ref: 34

JET-NEEDLE,O-2

€ 37.50

35

16034001
ref: 35

WASHER-MAIN JET

€ 2.50

36

920631032
ref: 36
STD

JET-MAIN,#A77.5R

€ 10.00

36

92063108
ref: 36
OPTION

JET-MAIN,#72.5R

€ 9.00

36

92063109
ref: 36
OPTION

JET-MAIN,#75R

€ 10.50

36

920631030
ref: 36
OPTION

JET-MAIN,#A80R

€ 11.00

36

92063124
ref: 36
OPTION

MAIN JET,#82.5R

€ 10.50

36

16033012
ref: 36
OPTION

SCREW-FLOAT CHAMBER

€ 1.00

38

16136007
ref: 38

GROMMET,OVERFLOW PIPE

€ 5.50

39

920371077
ref: 39
G3SSE

CLAMP

€ 3.00

40

16036012
ref: 40
G3SSE

BOOT,STARTER PLUNGER

€ 4.50

41

92077022
ref: 41
G3SSE

KNOB,CARBURETOR

€ 7.00

42

550D1615
ref: 42
G3SSE

PIN-COTTER,1.6X15

€ 1.50
