CRANKSHAFT/PISTON/ROTARY VALVE (
G3SSA 1971 USA CANADA

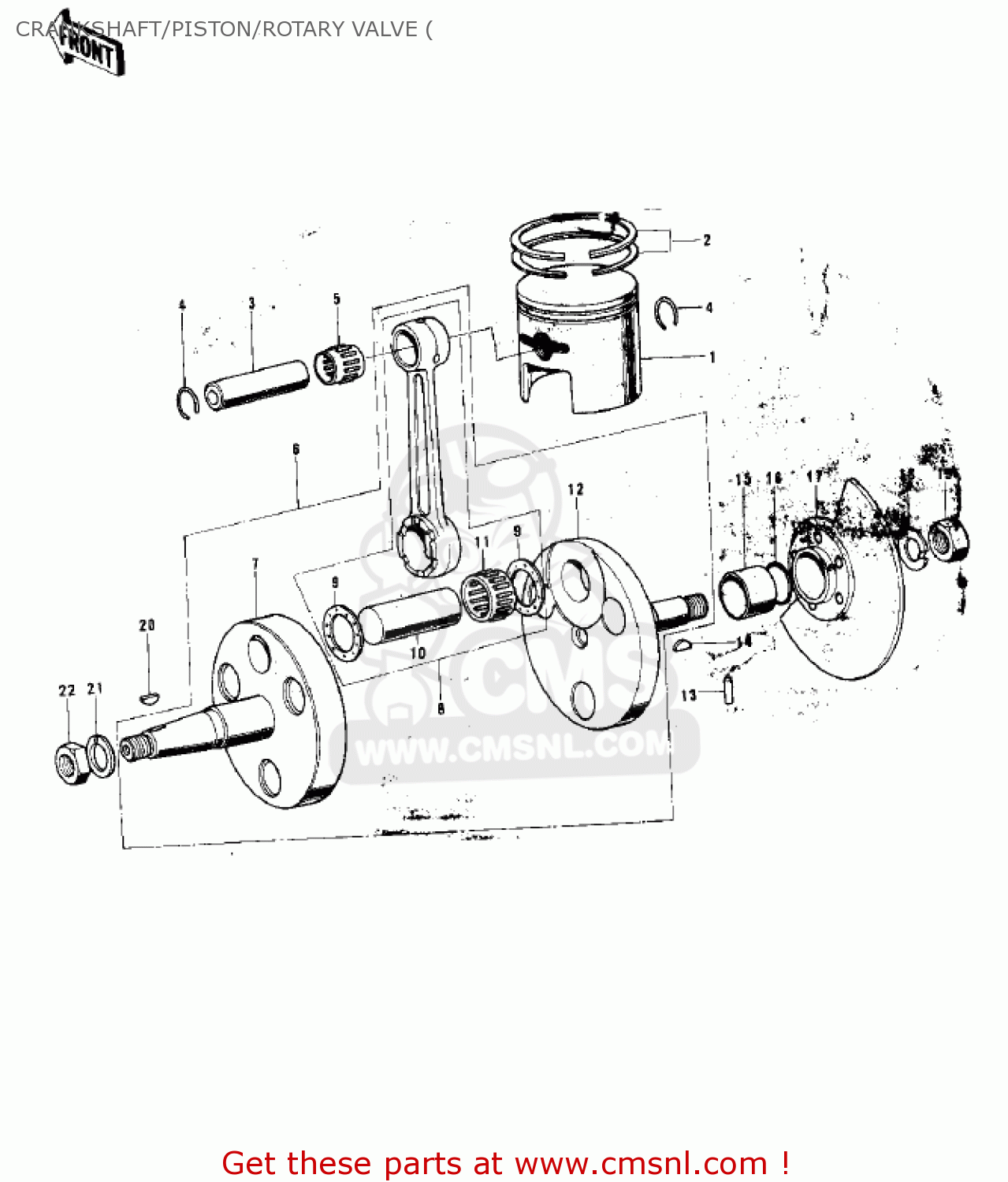

Crankshaft/piston/rotary valve ( diagram G3SSA 1971 USA CANADA
CRANKSHAFT/PISTON/ROTARY VALVE ( G3SSA 1971 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13001061
ref: 1
90CC
PISTON-ENGINE,STD
€ 36.50
1
13001057
ref: 1
G3SSE 100CC
PISTON-ENGINE,STD
€ 76.50
1
13029061
ref: 1
90CC
PISTON-ENGINE-L,O/S 0
€ 43.50
1
13029059
ref: 1
G3SSE 100CC
PISTON-ENGINE-L,O/S 0
€ 114.00
1
13027059
ref: 1
90CC
PISTON-ENGINE-LL,O/S
€ 48.50
1
13027057
ref: 1
G3SSE 100CC
PISTON-ENGINE-LL,O/S
€ 25.50
2
13008047
ref: 2
90CC
RING-SET-PISTON,STD
€ 38.00
2
13008043
ref: 2
G3SSE 100CC
RING-SET-PISTON,STD
€ 52.00
2
13025051
ref: 2
90CC
RING-SET-PISTON L,O/S
€ 48.50
2
13025047
ref: 2
G3SSE 100CC
RING-SET-PISTON L,O/S
€ 50.50
2
13024052
ref: 2
90CC
RING-SET-PISTON LL,O/
€ 43.50
2
13024050
ref: 2
G3SSE 100CC
RING-SET-PISTON LL,O/
€ 21.50
3
13002003A
ref: 3
PIN-PISTON
€ 11.50
4
92036003
ref: 4
CIRCLIP-PISTON PIN
€ 0.50
5
13033030
ref: 5
KTV141817
BEARING-NEEDLE,KTV141
€ 23.50
6
13036043
ref: 6
CRANKSHAFT-COMP
€ 425.50
7
13037053
ref: 7
CRANKSHAFT,L.H
€ 67.50
8
130445015
ref: 8
SET-CONNECTING ROD
€ 143.50
9
92025047
ref: 9
SHIM,T=1.0
€ 7.50
10
13035025
ref: 10
PIN-CRANK
€ 19.00
11
13034034
ref: 11
KT192612
BEARING-NEEDLE,KT1928
€ 24.50
12
13038049
ref: 12
CRANK SHAFT,R.H
€ 81.00
13
610A0410
ref: 13
ROLLER,4X10
€ 2.50
14
92038003
ref: 14
WOODRUFF KEY-PRY PINI
€ 1.50
15
92027022
ref: 15
COLLAR-CRANKSHAFT
€ 7.00
16
670B2016
ref: 16
O RING,16MM
€ 1.00
17
12001004
ref: 17
VALVE-ROTARY DISC
€ 64.50
18
92024003
ref: 18
WASHER,CLAW,12.5X25X0
€ 2.50
19
92015006
ref: 19
NUT,12MM
€ 3.50
20
510A3200
ref: 20
KEY-WOODRUFF
€ 1.50
21
461F1000
ref: 21
WASHER-SPRING,10MM
€ 0.50
22
314B1000
ref: 22
NUT,10MM
€ 0.50
