CLUTCH ('69-'73)
G3SSA 1971 USA CANADA

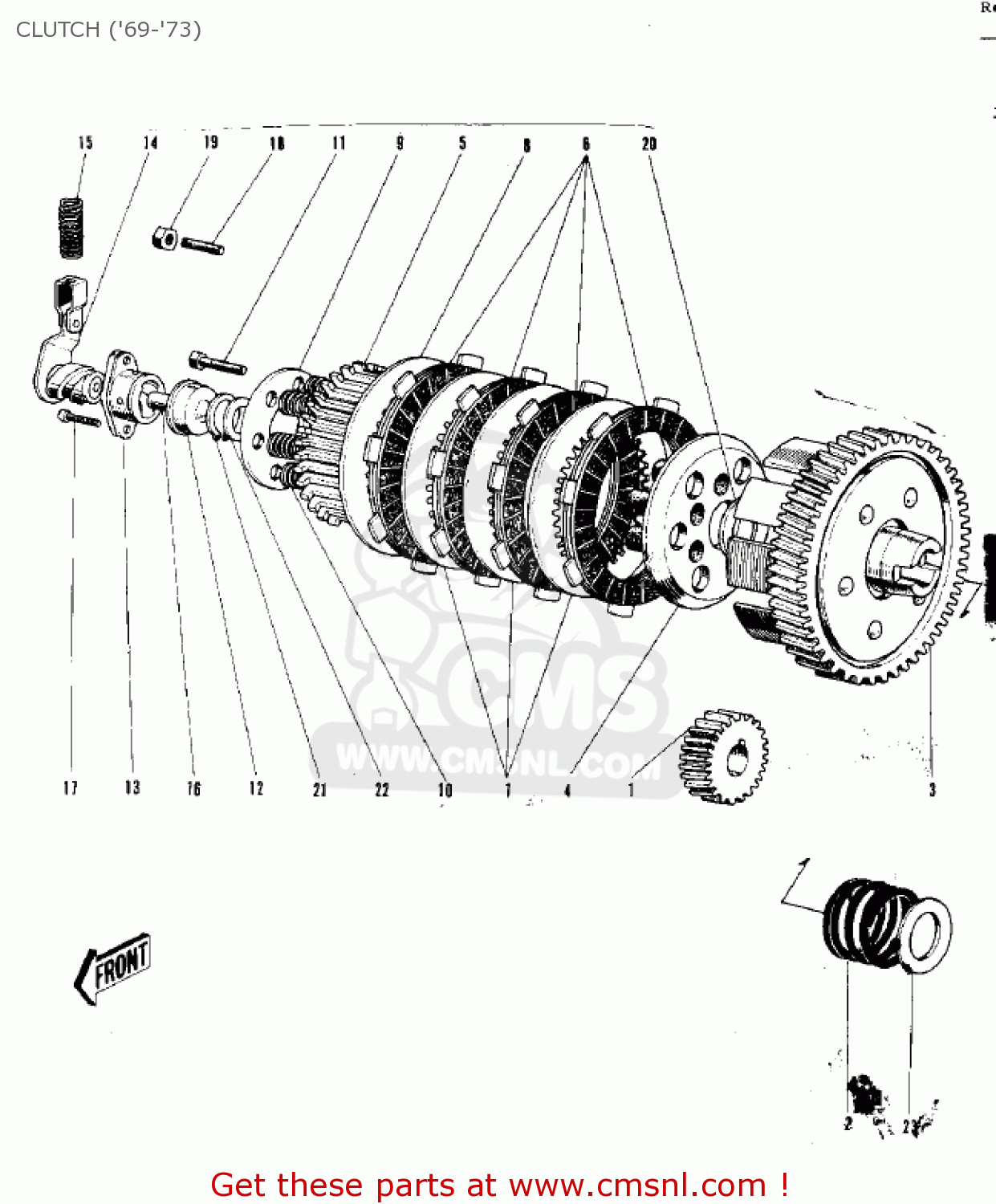

Clutch ('69-'73) diagram G3SSA 1971 USA CANADA
CLUTCH ('69-'73) G3SSA 1971 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13121032
ref: 1
GEAR-PRIMARY SPUR
€ 92.50
2
92081015
ref: 2
SPRING-CLUTCH DAMPER
€ 4.00
?
13081028
ref: ?
Includes items 3 - 1
CLUTCH ASSY
€ 193.00
?
13081028
ref: ?
Includes items 3 - 1
CLUTCH ASSY
€ 193.00
3
13095022
ref: 3
HOUSING,CLUTCH
€ 216.00
3
13095022
ref: 3
G3TR-A
HOUSING,CLUTCH
€ 216.00
4
130861002
ref: 4
WHEEL,CLUTCH
€ 33.00
5
130871011
ref: 5
HUB-CLUTCH
€ 74.00
6
130881103
ref: 6
PLATE-FRICTION (MCA)
€ 11.00
7
130891009
ref: 7
PLATE-CLUTCH,STEEL (NAS)
€ 8.50
8
13090004
ref: 8
PLATE-CLUTCH,OUTER (NAS)
€ 11.50
9
130911115
ref: 9
HOLDER,CLUTCH SPRING
€ 12.50
10
92081012
ref: 10
SPRING-CLUTCH
€ 4.00
11
110B0512
ref: 11
OLD JIS THREAD
BOLT-HEX HEAD,5X12
€ 0.50
11
114G0812
ref: 11
I.S.O. THREAD
BOLT-SMALL,8X12
€ 2.00
11
112G0516
ref: 11
G3TR-A
BOLT-UPSET
€ 0.50
12
13113003
ref: 12
PUSHER-COMP-CLUTCH
€ 6.50
13
13118001
ref: 13
OUTER-CLUTCH RELEASE
€ 19.50
14
13102004
ref: 14
INNER-CLUTCH RELEASE
€ 26.00
15
92081096
ref: 15
SPRING-CLUTCH RELEASE
€ 3.50
16
610A0710
ref: 16
ROLLER,7X10
€ 4.50
17
220B0616
ref: 17
SCREW-PAN HEAD,6X16
€ 2.50
18
291Z0628
ref: 18
SCREW-SLOTTED,6X28
€ 2.50
19
311B0600
ref: 19
NUT,6MM
€ 0.50
20
92022054
ref: 20
WASHER,16.5X27X1.4
€ 4.50
21
480J1600
ref: 21
CIRCLIP-TYPE-C,16MM
€ 2.50
22
92022053
ref: 22
WASHER,THRUST,16.5X21
€ 2.50
23
92022057
ref: 23
WASHER,25.5X36X1
€ 2.50
