TRANSMISSION/CHANGE DRUM ('71-'7
F8 BISON 1971 USA

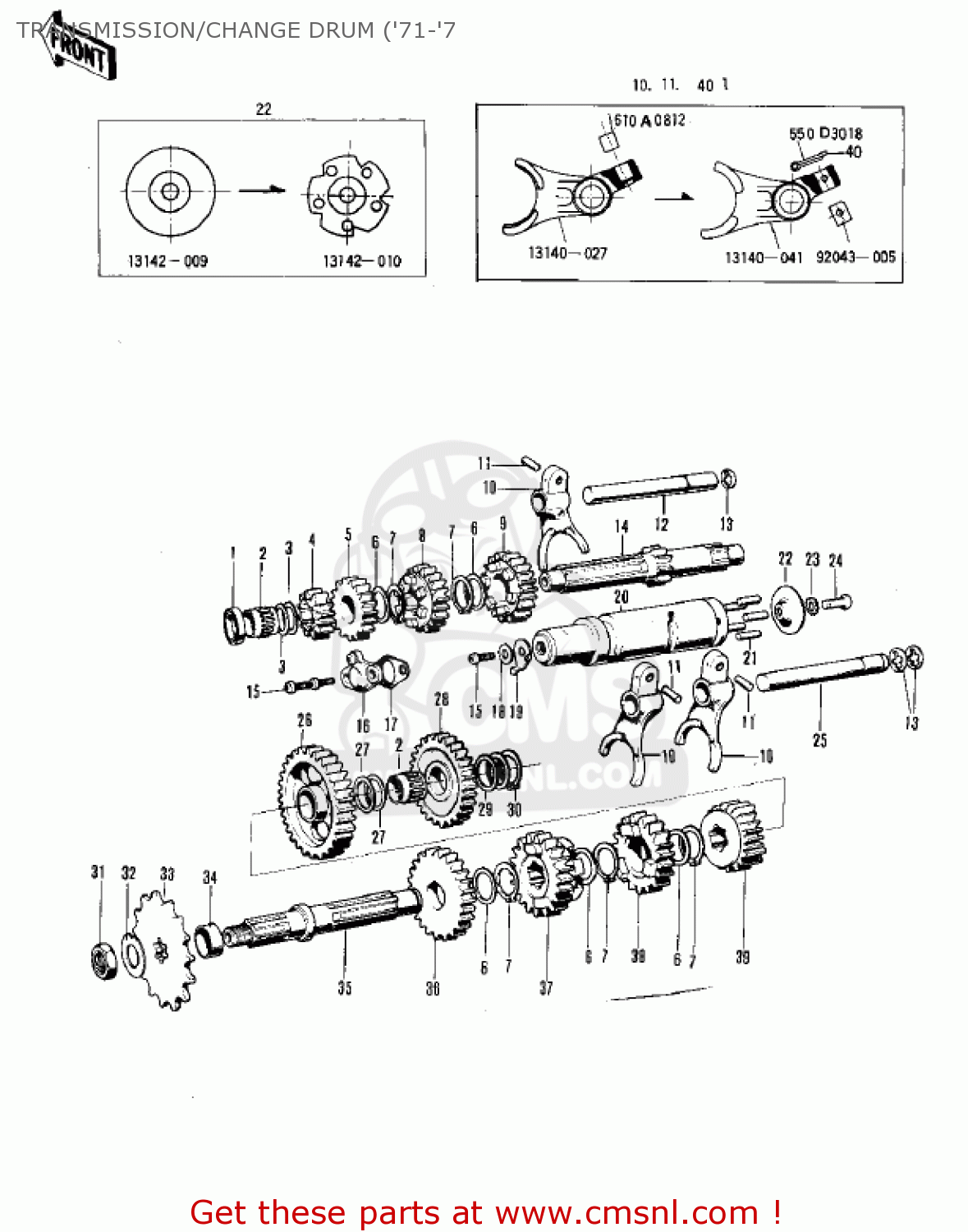

Transmission/change drum ('71-'7 diagram F8 BISON 1971 USA
TRANSMISSION/CHANGE DRUM ('71-'7 F8 BISON 1971 USA
×
prices are in EUR
ref
part #
description
quantity
1
92050034
ref: 1
OIL SEAL-CLTH PSH ROD
€ 8.50
2
92046023
ref: 2
UNAVAILABLE IN PRICE BOOK
€ 0.00
3
92022112
ref: 3
WASHER,20.5X30X1,STEE
€ 6.00
4
13130021
ref: 4
14T
2ND GEAR-DRIVE SHAFT
€ 39.50
5
13134005
ref: 5
20T
4TH GEAR-DRIVE SHAFT
€ 33.50
6
92022076
ref: 6
WASHER,25MM
€ 7.00
7
92033026
ref: 7
CIRCLIP
€ 6.00
8
13132020
ref: 8
18T
3RD GEAR-DRIVE SHAFT
€ 68.50
9
13136047
ref: 9
28T
TOP GEAR,DRIVE SHAFT
€ 49.50
10
13140052
ref: 10
FORK-SELECTOR
€ 64.50
10
13140052
ref: 10
E/NO. 07284
FORK-SELECTOR
€ 64.50
11
610A0812
ref: 11
USE 13140-027
ROLLER,8X12
€ 3.00
11
92043005
ref: 11
E/NO. 07284
PIN,DOWEL,8X15
€ 4.50
12
13209003
ref: 12
L=113M/M
ROD-SHIFT
€ 2.00
13
482J0100
ref: 13
CIRCLIP-TYPE-E,10MM
€ 0.50
14
13127025
ref: 14
11T
SHAFT-DRIVE
€ 89.00
15
220B0616
ref: 15
SCREW-PAN HEAD,6X16
€ 2.50
16
131511001
ref: 16
SWITCH-COMP,NEUTRAL
€ 9.50
17
13146002
ref: 17
GASKET,NEUTRAL SWITCH (NAS)
€ 2.50
18
410B0600
ref: 18
WASHER-PLAIN-SMALL,6M
€ 0.50
19
210071003
ref: 19
ROTOR,TOP & NEUTRAL
€ 4.50
20
13239006
ref: 20
DRUM ASSY-GEAR CHANG
€ 72.00
21
92042014
ref: 21
USE 13142-009
PIN-GEAR CHANGE DRUM
€ 0.50
21
92042020
ref: 21
USE 13142-016
PIN-GEAR CHANGE DRUM
€ 3.00
22
13142009
ref: 22
PLATE-CHANGE DRUM PIN
€ 6.00
22
13142010
ref: 22
PLATE-CHANGE DRUM PIN
€ 11.50
23
464H0600
ref: 23
WASHER-LOCK,6MM
€ 0.50
24
220B0612
ref: 24
USE 13142-009
SCREW-PAN HEAD,6X12
€ 1.00
24
221B0620
ref: 24
USE 13142-010
SCREW-CNTSNK HD,6X20
€ 0.50
25
13209010
ref: 25
L=119M/M
ROD-SHIFT
€ 6.50
26
13129042
ref: 26
27T
LOW GEAR-OUTPUT SHAFT
€ 88.00
27
92022113
ref: 27
WASHER,20.5X30X1
€ 6.00
28
13073005
ref: 28
27T
IDLE GEAR-KICKSTARTER
€ 41.00
29
92022112
ref: 29
1.0
WASHER,20.5X30X1,STEE
€ 6.00
29
92022114
ref: 29
0.5
WASHER-THRUST
€ 1.00
30
480J1900
ref: 30
CIRCLIP-TYPE-C,19MM
€ 1.00
31
92015019
ref: 31
NUT,18MM
€ 4.00
32
92024067
ref: 32
WASHER,LOCK
€ 2.00
33
13144017
ref: 33
STD
SPROCKET-OUTPUT,14T
€ 35.50
33
13144043
ref: 33
ENGINE SPROCKET,13T
€ 30.50
33
13144025
ref: 33
ENGINE SPROCKET,15T
€ 23.00
34
92027163
ref: 34
COLLAR,25X30X10.1
€ 13.00
35
13128027
ref: 35
SHAFT-OUTPUT
€ 100.50
36
13131024
ref: 36
2ND GEAR-OUTPUT SHAFT
€ 44.00
37
13135009
ref: 37
4TH GEAR-OUTPUT SHAFT
€ 54.50
38
13133019
ref: 38
3RD GEAR-OUTPUT SHAFT
€ 33.00
39
14137014
ref: 39
TOP GEAR
€ 0.00
40
550D3018
ref: 40
PIN COTTER 3.0X18
€ 0.50
