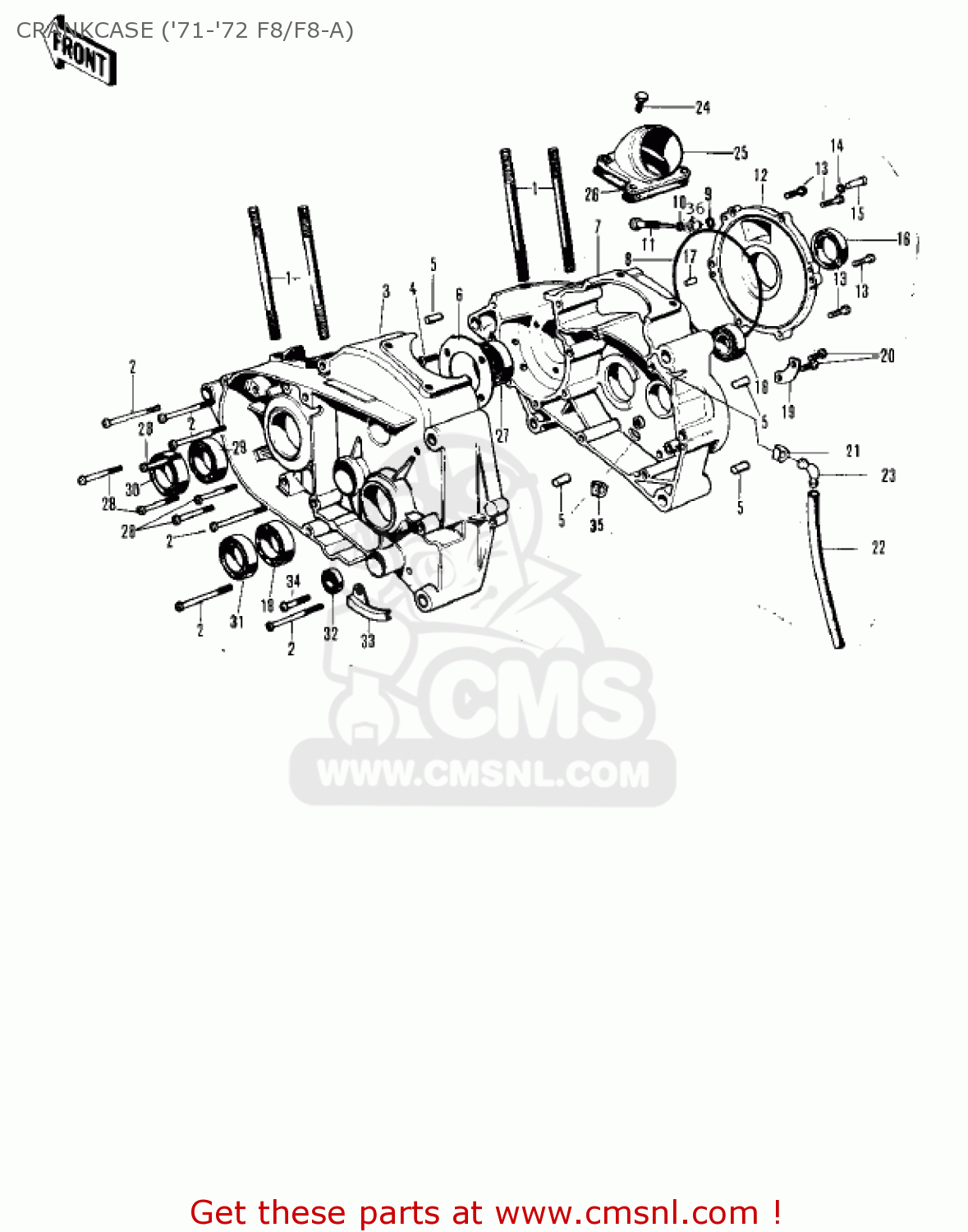

CRANKCASE ('71-'72 F8/F8-A)

ref

part #

description

quantity

1

172G1075
ref: 1

STUD,10X75

€ 8.00

2

220B0675
ref: 2

SCREW,PAN HEAD,6X75

€ 3.00

3

14001065
ref: 3

CRANKCASE SET

€ 306.00

4

221B0616
ref: 4

SCREW-CNTSNK HD,6X16

€ 0.50

5

920431037
ref: 5

PIN,DOWEL,10X8.2X14

€ 0.50

6

14014019
ref: 6

HOLDER-CRANK BEARING

€ 5.50

7

14003056
ref: 7

CRANKCASE,R

€ 111.00

7

14003058
ref: 7
E/NO.05979

CRANKCASE,R.H

€ 97.00

8

92055039
ref: 8

'O' RING 134.5MM

€ 9.00

9

670B1505
ref: 9

O RING,5MM

€ 1.00

10

92055011
ref: 10

'O' RING 5MM

€ 4.00

11

92062004
ref: 11

NOZZLE-OIL INJECTION

€ 7.00

12

14019044
ref: 12

ROTARY DISC VALVE COVER

€ 100.00

13

220B0620
ref: 13

SCREW-PAN HEAD,6X20

€ 2.50

14

92055037
ref: 14

RING-O,CHECK VALVE

€ 2.50

15

16128006
ref: 15

VALVE-CHECK

€ 7.50

16

653B354808
ref: 16

OIL SEAL,TB35488

€ 12.50

17

610A0512
ref: 17

ROLLER,5X12

€ 3.00

18

601B6205
ref: 18

BEARING-BALL,#6205C3

€ 14.00

19

14014020
ref: 19

HOLDER-MISSION BERNG

€ 1.00

20

220B0614
ref: 20

SCREW-PAN HEAD,6X14

€ 2.00

21

92071042
ref: 21

GROMMET

€ 2.50

22

92059061
ref: 22

PIPE-BREATHER

€ 3.00

23

140691001
ref: 23

BREATHER

€ 17.50

24

112G0620
ref: 24

BOLT 6X20

€ 1.00

25

11015021
ref: 25

INLET PIPE

€ 18.00

26

11017005
ref: 26

GASKET-INLET PIPE (NAS)

€ 1.50

27

92045016
ref: 27

BEARING-BALL,#SC0626C

€ 36.00

28

220B0650
ref: 28

SCREW-PAN HEAD,6X50

€ 2.00

29

601B6305
ref: 29

BEARING-BALL,#6305C3

€ 30.00

30

920491250
ref: 30

SEAL-OIL

€ 12.00

31

92050033
ref: 31

SEAL-OIL,TB3040

€ 14.00

32

92049004
ref: 32

OIL SEAL SB12205

€ 6.00

33

14076001
ref: 33

COVER-WIRING HARNESS

€ 1.50

34

220B0630
ref: 34

SCREW-PAN HEAD,6X30

€ 2.50

35

92071051
ref: 35

GROMMET

€ 3.00

36

92062008
ref: 36

NOZZLE

€ 7.00
