IGNITION/GENERATOR/RECTIFIER
F8 BISON 1971 USA

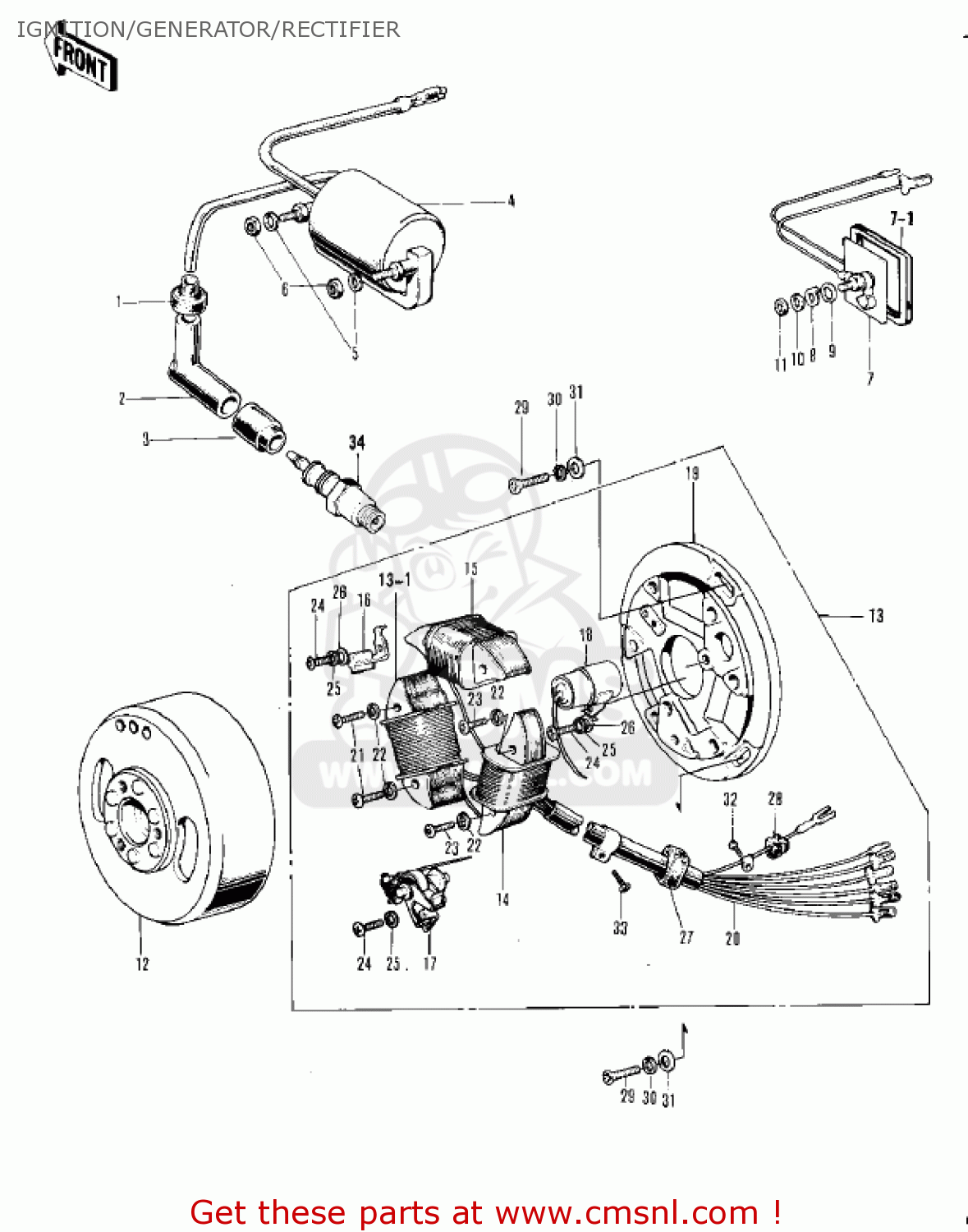

Ignition/generator/rectifier diagram F8 BISON 1971 USA
IGNITION/GENERATOR/RECTIFIER F8 BISON 1971 USA
×
prices are in EUR
ref
part #
description
quantity
1
21132005
ref: 1
GROMMET,SPARK PLUG CP
€ 2.50
2
21130016
ref: 2
CAP-SPARK PLUG
€ 16.50
3
21131004
ref: 3
GROMMET,PLUG CAP
€ 7.00
4
21121042
ref: 4
COIL-IGNITION
€ 76.50
5
461F0600
ref: 5
WASHER-SPRING,6MM
€ 0.50
6
311B0600
ref: 6
NUT,6MM
€ 0.50
7
210615001
ref: 7
RECTIFIER
€ 29.00
7-1
32103020
ref: 7-1
MAT
€ 1.50
8
92022163
ref: 8
WASHER-PLAIN
€ 0.50
9
410B0500
ref: 9
WASHER-PLAIN-SMALL,5M
€ 0.50
10
461F0500
ref: 10
WASHER-SPRING,5MM
€ 0.50
11
311B0500
ref: 11
NUT-HEX
€ 0.50
12
21050011
ref: 12
FLYWHEEL
€ 511.50
13
21003012
ref: 13
STATOR ASSEMBLY
€ 336.00
13-1
21047013
ref: 13-1
LIGHTING COIL,A
€ 51.00
14
21047014
ref: 14
LIGHTING COIL,B
€ 97.50
15
21049012
ref: 15
PRIMARY COIL
€ 33.00
16
21019005
ref: 16
BRUSH,OIL
€ 3.00
16
21019005
ref: 16
BRUSH,OIL
€ 3.00
17
21008006
ref: 17
BREAKER ASSY-CONTACT
€ 33.50
17
21008006
ref: 17
BREAKER ASSY-CONTACT
€ 33.50
18
21013030
ref: 18
CONDENCER
€ 25.50
18
21013030
ref: 18
CONDENCER
€ 25.50
19
21048009
ref: 19
BASE-MAGNETO
€ 39.00
20
21029017
ref: 20
WIRING HARNESS
€ 55.00
21
220B0530
ref: 21
SCREW-PAN-CROS
€ 2.00
22
461F0500
ref: 22
WASHER-SPRING,5MM
€ 0.50
23
220B0525
ref: 23
SCREW-PAN-CROS,5X25
€ 2.50
24
220B0410
ref: 24
SCREW-PAN-CROS
€ 2.00
25
461F0400
ref: 25
WASHER-SPRING,4MM
€ 0.50
26
410B0400
ref: 26
WASHER-PLAIN-SMALL,4M
€ 0.50
27
92071014
ref: 27
GROMMET-ENG RUBBER A
€ 1.50
28
21017005
ref: 28
GROMMET-WIRING HARN,C
€ 2.00
29
220B0520
ref: 29
SCREW-PAN-CROS
€ 0.50
30
461F0500
ref: 30
WASHER-SPRING,5MM
€ 0.50
31
410B0500
ref: 31
WASHER-PLAIN-SMALL,5M
€ 0.50
32
220B0305A
ref: 32
SCREW-PAN HEAD,3X5
€ 1.00
33
220B0308
ref: 33
SCREW-PAN-CROS
€ 0.50
34
92070010
ref: 34
B8HC (NGK SPARKPLUG)
€ 6.50
34
B8HSA
ref: 34
SPARK PLUG,B8HS
€ 2.50
34
B8HSA
ref: 34
SPARK PLUG,B8HS
€ 2.50
