ENGINE COVERS ('71-'72 F8/F8-A)
F8 BISON 1971 USA

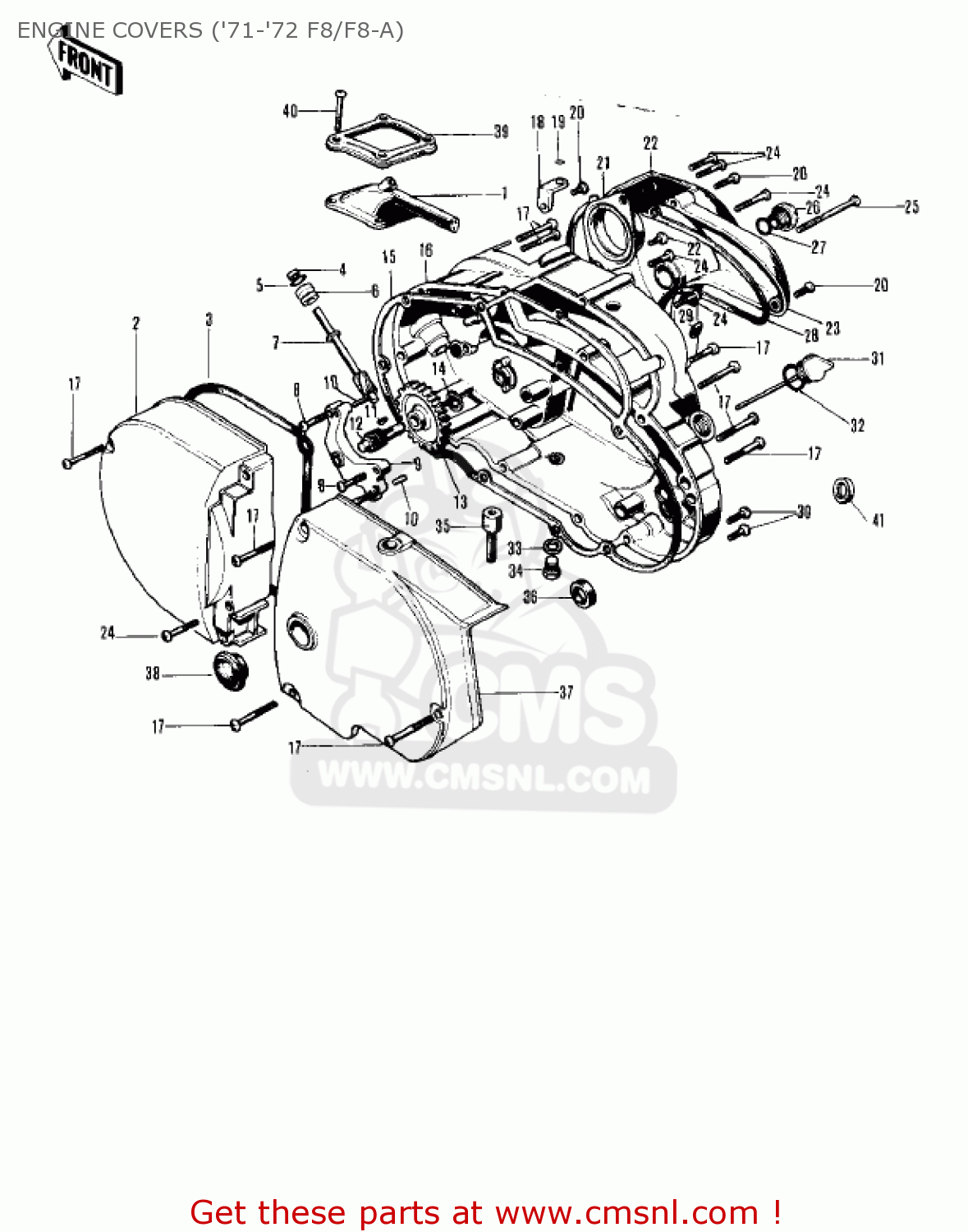

Engine covers ('71-'72 f8/f8-a) diagram F8 BISON 1971 USA
ENGINE COVERS ('71-'72 F8/F8-A) F8 BISON 1971 USA
×
prices are in EUR
ref
part #
description
quantity
1
14038034
ref: 1
CAP,CARBURETOR
€ 12.50
2
1403103880
ref: 2
ENGINE COVER,LH,BUFF
€ 212.00
3
14045008
ref: 3
GASKET-L.H ENG COVER (MCA)
€ 7.00
4
92054004
ref: 4
OIL SEAL
€ 14.50
5
92055025
ref: 5
'O' RING
€ 3.00
6
92028075
ref: 6
BUSH
€ 14.50
7
13223004
ref: 7
GEAR-TACHOMETER
€ 20.50
8
220B0625
ref: 8
SCREW-PAN HEAD,6X25
€ 1.50
9
14018004
ref: 9
HOLDER-TACHOMETER GR
€ 12.50
10
610A0512
ref: 10
ROLLER,5X12
€ 3.00
11
510A3100
ref: 11
KEY-WOODRUFF
€ 1.50
12
13224006
ref: 12
PINION-TACHOMETER
€ 34.00
13
16085014
ref: 13
33T
GEAR-OIL PUMP
€ 12.50
14
92026025
ref: 14
WASHER-THRUST
€ 7.00
15
14046020
ref: 15
GASKET-R.H ENG COVER (MCA)
€ 8.00
16
14032065
ref: 16
COVER-R.H ENGINE
€ 69.50
17
220B0655
ref: 17
SCREW-PAN HEAD,6X55
€ 2.50
18
14044005
ref: 18
HOLDER-OIL PUMP CABLE
€ 3.00
19
92036017
ref: 19
CIRCLIP
€ 2.00
20
220B0620
ref: 20
SCREW-PAN HEAD,6X20
€ 2.50
21
16065005
ref: 21
HOLDER-CARBURETOR
€ 18.00
22
220B0612
ref: 22
SCREW-PAN HEAD,6X12
€ 1.00
23
14030027
ref: 23
CARBURETOR COVER
€ 125.00
24
220B0635
ref: 24
SCREW-PAN HEAD,6X35
€ 1.00
25
220B0670
ref: 25
SCREW-PAN HEAD,6X70
€ 2.50
26
92067006
ref: 26
PLUG-CARBURETOR COVER
€ 12.00
27
670B2020
ref: 27
O RING,20MM
€ 1.00
28
14048002
ref: 28
GASKET-CARBURETOR COV (MCA)
€ 23.50
29
14064001
ref: 29
STOPPER-CARBURETOR
€ 1.00
30
220B0630
ref: 30
SCREW-PAN HEAD,6X30
€ 2.50
31
16115017
ref: 31
PLUG-OIL FILLER
€ 12.00
32
670B2020
ref: 32
O RING,20MM
€ 1.00
33
92065058
ref: 33
GASKET, 10,5X16X1 (NAS)
€ 2.50
34
92067001
ref: 34
PLUG-OIL DRAIN
€ 3.00
35
16116001
ref: 35
PLUG
€ 6.00
36
92049012
ref: 36
OIL SEAL SB20285
€ 8.50
37
14026005E8
ref: 37
CHAIN CASE COVER
€ 175.50
38
14040003
ref: 38
CAP-CLUTCH HOLE
€ 2.50
39
14065001
ref: 39
HOLDER-CARBURETOR CAP
€ 6.50
40
220B0512
ref: 40
SCREW-PAN-CROS
€ 0.50
41
92049004
ref: 41
OIL SEAL SB12205
€ 6.00
