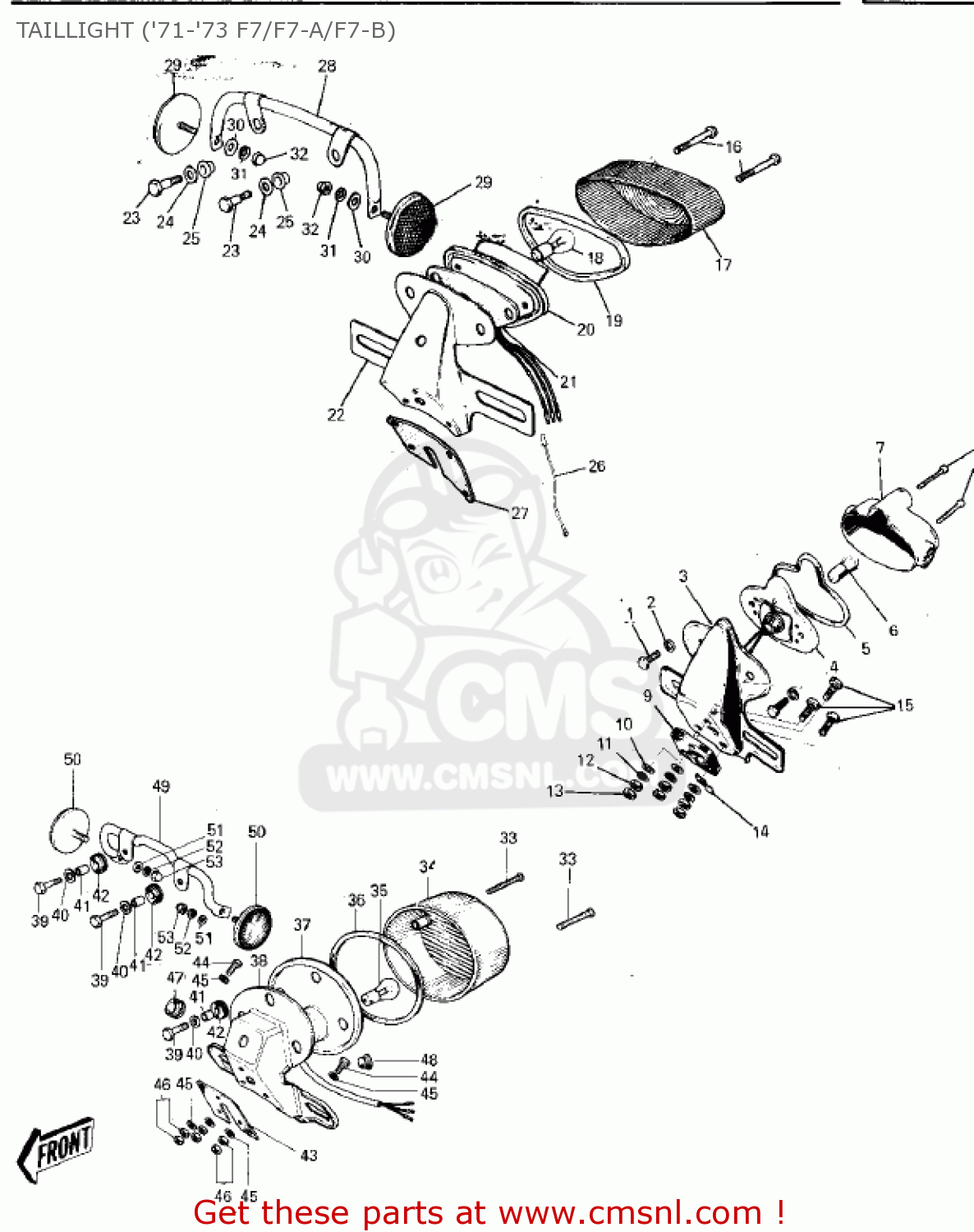

TAILLIGHT ('71-'73 F7/F7-A/F7-B)

ref

part #

description

quantity

?

2302401921
ref: ?
Includes items 1 - 8

LAMP ASSY-TAIL,BLACK

€ 99.00

1

110N0510
ref: 1
F7

BOLT-HEX HEAD,5X10

€ 0.50

2

461F0500
ref: 2

WASHER-SPRING,5MM

€ 0.50

3

2303600710
ref: 3

BKT-LICENSE PLT,BLACK

€ 33.00

4

23027009
ref: 4

SOCKET-TAIL LAMP

€ 18.00

5

23028008
ref: 5

GASKET-TAIL LAMP (NAS)

€ 4.00

6

92069023
ref: 6

BULB 6V 3/21CP

€ 4.00

7

23026010
ref: 7

LENS,TAIL LAMP

€ 64.50

8

220E0450
ref: 8

SCREW-PAN HEAD,4X50

€ 3.00

9

35039005
ref: 9

DAMPER,TAIL LAMP

€ 6.50

10

92022125
ref: 10

WASHER,6.5X20X1.6

€ 1.00

11

461F0600
ref: 11

WASHER-SPRING,6MM

€ 0.50

12

311B0600
ref: 12

NUT,6MM

€ 0.50

13

312B0600
ref: 13

NUT,6MM

€ 0.50

14

35024002
ref: 14

CLAMP,WIRING HARNESS

€ 2.00

15

112G0635
ref: 15

BOLT-UPSET,6X35

€ 2.50

?

2302401921
ref: ?
Includes items 16 -

LAMP ASSY-TAIL,BLACK

€ 99.00

16

220R0455
ref: 16

SCREW-PAN-CROS

€ 3.50

17

23026022
ref: 17

LENS,TAIL LAMP

€ 47.50

18

92069023
ref: 18

BULB 6V 3/21CP

€ 4.00

19

23028016
ref: 19

GASKET-TAIL LAMP LENS (NAS)

€ 7.00

?

23027029
ref: ?
Includes items 20 an

CASE-TAIL LAMP

€ 24.50

21

23028015
ref: 21

GASKET-TAIL LAMP CASE (NAS)

€ 6.50

22

2303601421
ref: 22

BKT-LICENSE PLT,BLACK

€ 25.50

23

92001111
ref: 23

BOLT

€ 6.50

24

920221561
ref: 24

WASHER,8.5X20X1.6

€ 2.50

25

92075091
ref: 25

DAMPER RUBBER

€ 1.50

26

26011014
ref: 26

WIRE-IGNITION LEAD

€ 1.00

27

35039005
ref: 27

DAMPER,TAIL LAMP

€ 6.50

28

28013002
ref: 28

BRACKET-REFLECTOR

€ 8.50

29

2812008
ref: 29

UNAVAILABLE IN PRICE BOOK

€ 0.00

30

411B0500
ref: 30

WASHER-PLAIN,5MM

€ 0.50

31

461F0500
ref: 31

WASHER-SPRING,5MM

€ 0.50

32

322N0500
ref: 32

NUT-CAP,5MM

€ 2.00

?

2302406921
ref: ?
Includes items 33 -

LAMP ASSY,TAIL,BLACK

€ 103.50

33

220E0435A
ref: 33
F7A/F7B

SCREW-PAN HEAD,4X35

€ 4.50

34

23026023
ref: 34

LENS,TAIL LAMP

€ 91.50

35

92069028
ref: 35

BULB 6V 17/5.3W

€ 4.50

36

23028018
ref: 36

GASKET,TAIL LAMP LENS (NAS)

€ 6.50

37

23027030
ref: 37

BODY-COMP-TAIL LAMP

€ 76.00

38

2303601921
ref: 38
FLAT BLK

BKT-LICENSE PLT,BLACK

€ 62.00

39

112G0620
ref: 39

BOLT 6X20

€ 1.00

40

92022125
ref: 40

WASHER,6.5X20X1.6

€ 1.00

41

92027129
ref: 41

COLLAR,6.8X10X8.5

€ 3.00

42

92075076
ref: 42

DAMPER

€ 3.00

43

35039005
ref: 43
8T

DAMPER,TAIL LAMP

€ 6.50

44

116B0625
ref: 44

BOLT-HEX HEAD,6X25

€ 4.00

45

92022125
ref: 45

WASHER,6.5X20X1.6

€ 1.00

46

312B0600
ref: 46

NUT,6MM

€ 0.50

47

92071019
ref: 47

GROMMET,10MM

€ 2.50

48

92074006
ref: 48

PLUG,FENDER,RR,12X1

€ 4.00

49

28013005
ref: 49

BRACKET-REFLECTOR

€ 13.00

50

28012009
ref: 50

REFLECTOR-REFLEX,RR

€ 17.50

51

411B0500
ref: 51

WASHER-PLAIN,5MM

€ 0.50

52

461F0500
ref: 52

WASHER-SPRING,5MM

€ 0.50

53

322N0500
ref: 53

NUT-CAP,5MM

€ 2.00

TAILLIGHT ('71-'73 F7/F7-A/F7-B)

all assemblies
