CRANKSHAFT/PISTON/ROTARY VALVE (
F7D 1975 USA

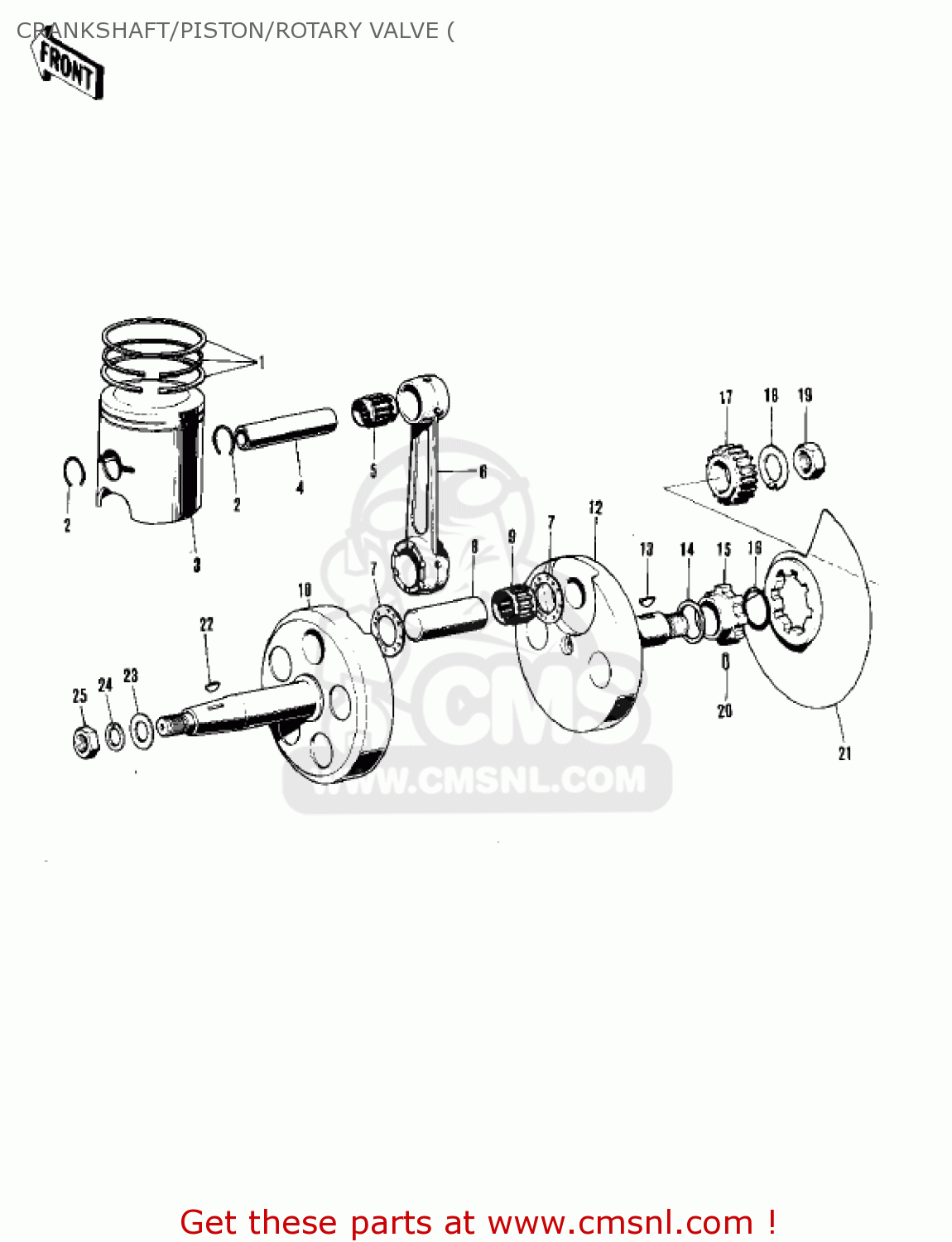

Crankshaft/piston/rotary valve ( diagram F7D 1975 USA
CRANKSHAFT/PISTON/ROTARY VALVE ( F7D 1975 USA
×
prices are in EUR
ref
part #
description
quantity
1
13008027
ref: 1
RING-SET-PISTON,STD
€ 69.00
2
92036003
ref: 2
CIRCLIP-PISTON PIN
€ 0.50
3
13001042
ref: 3
PISTON,STD
€ 50.50
4
13002018
ref: 4
PIN-PISTON
€ 22.50
5
13033034
ref: 5
BEARING-NEEDLE,R1422P
€ 29.00
?
13044039
ref: ?
Includes items 6 - 9
CONNECTING ROD SET
€ 186.00
?
13036049
ref: ?
Includes items 6 - 1
CRANK & CONROD ASSY
€ 528.50
7
92026011
ref: 7
SPACER,22.5X37X1.0
€ 6.50
8
13035022
ref: 8
CRANK PIN
€ 17.50
9
13034042
ref: 9
BEARING-NEEDLE,22VS29
€ 18.00
10
13037038
ref: 10
CRANKSHAFT,L.H
€ 100.50
12
13038034
ref: 12
CRANKSHAFT,R.H
€ 287.00
13
92038003
ref: 13
WOODRUFF KEY-PRY PINI
€ 1.50
14
92027118
ref: 14
COLLAR-CRANKSHAFT
€ 2.50
15
92027100
ref: 15
COLLAR-R.H CRNK SHFT
€ 37.00
16
92055018
ref: 16
RING-O,22MM
€ 2.50
17
13121027
ref: 17
PINION,PRIMARY
€ 58.50
18
92024067
ref: 18
WASHER,LOCK
€ 2.00
19
92015019
ref: 19
NUT,18MM
€ 4.00
20
610A0412
ref: 20
ROLLER,4X12
€ 2.50
21
12002022
ref: 21
VALVE-ROTARY DISC
€ 64.00
22
92038001
ref: 22
WOODRUFF KEY
€ 3.00
23
92022172
ref: 23
WASHER,14.5X25X3.6
€ 6.50
24
461E1400
ref: 24
WASHER-SPRING,14MM
€ 0.50
25
92015043
ref: 25
NUT,14MM
€ 3.50
