CLUTCH ('74-'75 F7-C/F6-D)
F7D 1975 USA

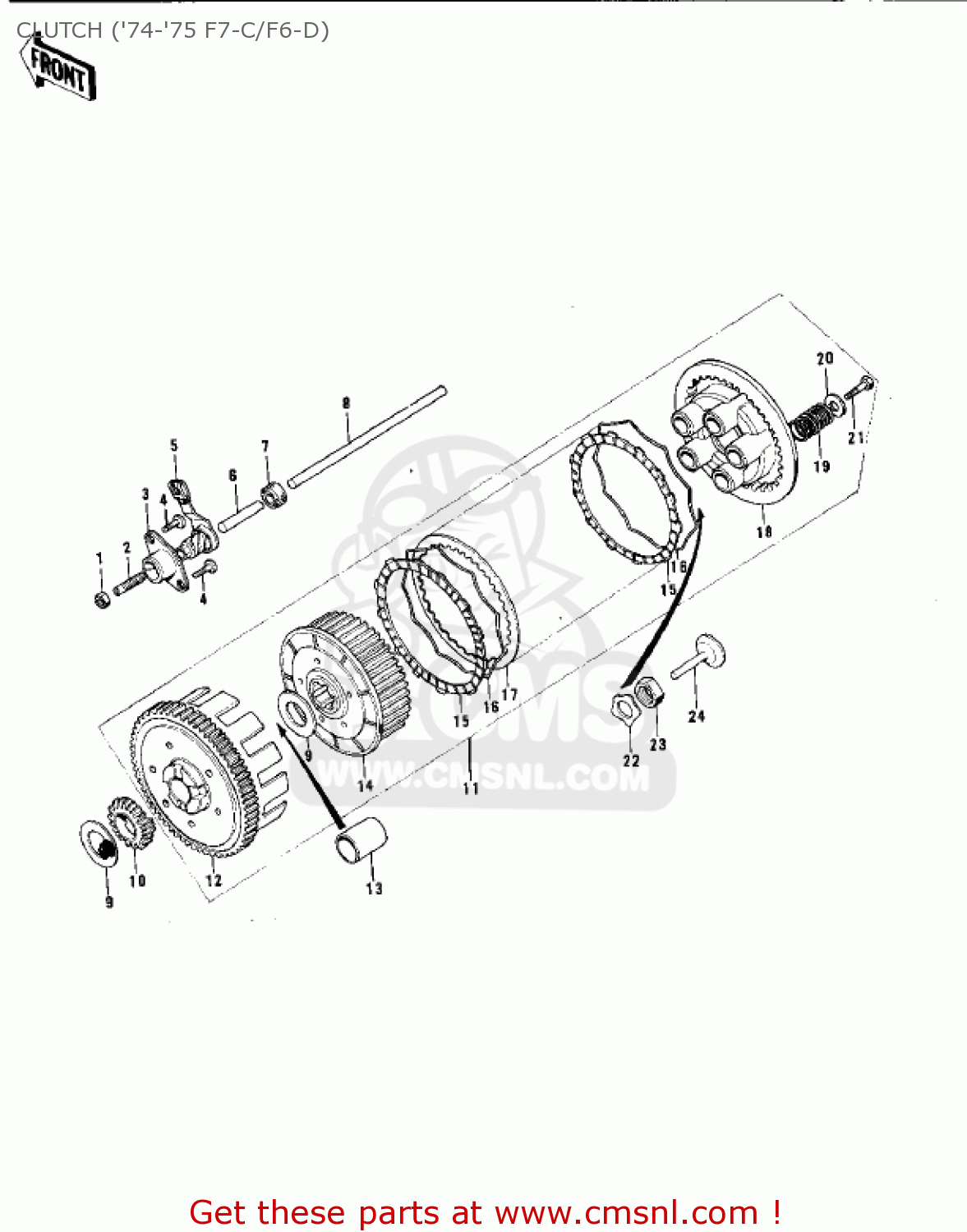

Clutch ('74-'75 f7-c/f6-d) diagram F7D 1975 USA
CLUTCH ('74-'75 F7-C/F6-D) F7D 1975 USA
×
prices are in EUR
ref
part #
description
quantity
1
311B0600
ref: 1
NUT,6MM
€ 0.50
1
311B0600
ref: 1
NUT,6MM
€ 0.50
2
291Z0625
ref: 2
SCREW-SLOTTED,6X25
€ 3.50
3
13118006
ref: 3
RELEASE OUTER-CLUTCH
€ 19.50
4
220B0614
ref: 4
SCREW-PAN HEAD,6X14
€ 2.00
5
13102011
ref: 5
RELEASE INNER-CLUTCH
€ 29.50
6
13116018
ref: 6
L=70M/M
ROD-CLUTCH PUSH,SHORT
€ 8.50
7
92052010
ref: 7
OIL SEAL TB7246
€ 10.00
8
13116017
ref: 8
L=126.5M/M
ROD-CLUTCH PUSH,LONG
€ 10.00
9
92022168
ref: 9
WASHER-CLUTCH THRUST
€ 6.50
10
13075006
ref: 10
GEAR-SPUR,KICKSTARTER
€ 36.00
11
13081084
ref: 11
CLUTCH ASSY
€ 314.50
12
130951024
ref: 12
HOUSING-COMP-CLUTCH
€ 277.00
13
92028014
ref: 13
BUSH-CLUTCH
€ 27.50
14
13087032
ref: 14
HUB,CLUTCH
€ 46.50
15
130881015
ref: 15
PLATE-FRICTION (NAS)
€ 11.50
16
13229002
ref: 16
SPRING,CLUTCH STEEL
€ 7.50
17
13089003
ref: 17
PLATE-CLUTCH,STEEL (NAS)
€ 7.50
18
13187004
ref: 18
PLATE-CLUTCH OPERATIN (NAS)
€ 24.50
19
92081080
ref: 19
SPRING-CLUTCH
€ 9.50
20
92022167
ref: 20
WASHER-PLAIN,5MM
€ 1.50
21
92003078
ref: 21
BOLT,5X18
€ 2.00
22
92024046
ref: 22
WASHER,LOCK,14MM
€ 2.00
23
315B1400
ref: 23
NUT,14MM
€ 1.00
24
13116016
ref: 24
ROD-PUSH,CLUTCH SPRIN
€ 11.50
