REAR HUB/BRAKE/CHAIN ('71-'73 F7
F7D 1975 USA

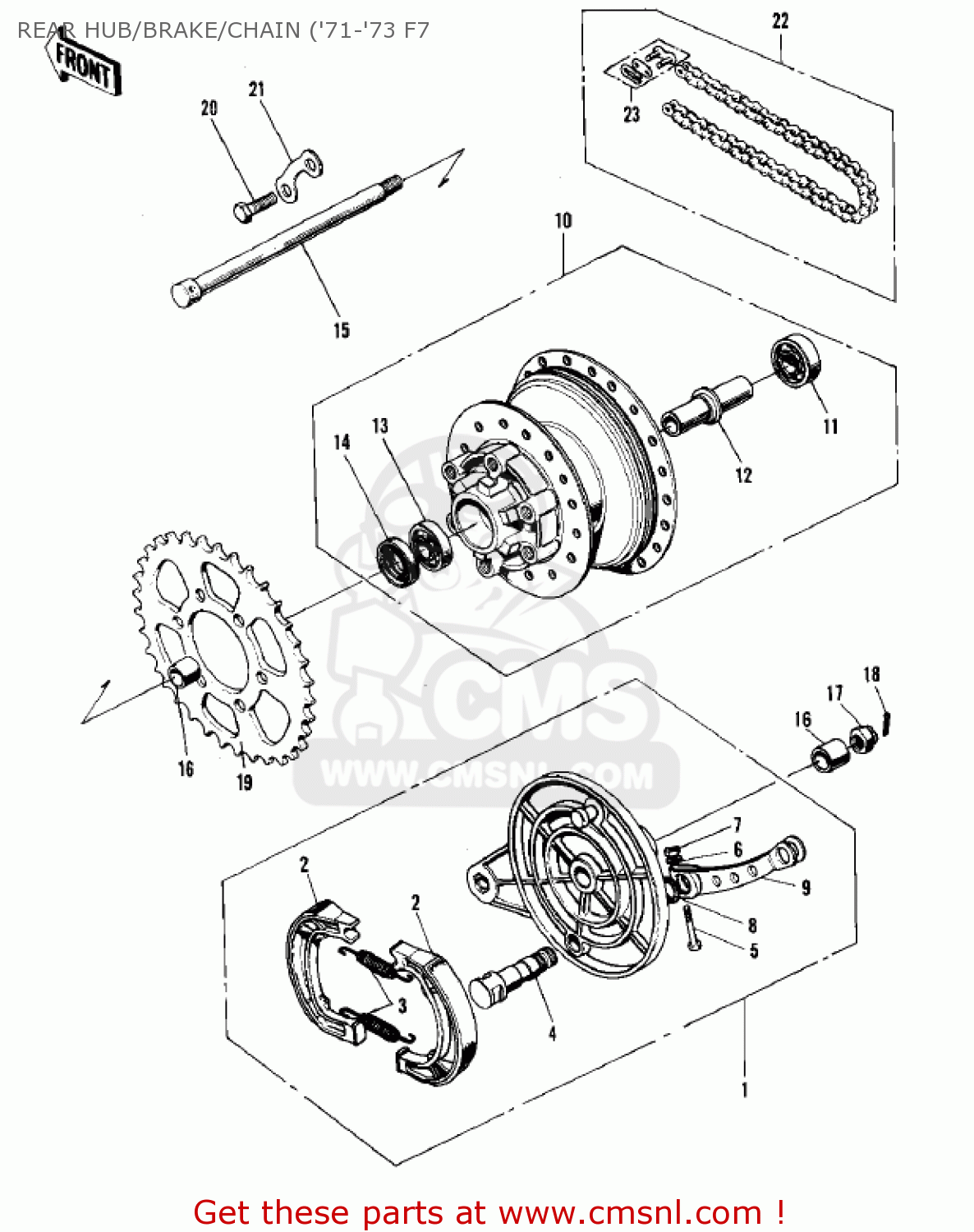

Rear hub/brake/chain ('71-'73 f7 diagram F7D 1975 USA
REAR HUB/BRAKE/CHAIN ('71-'73 F7 F7D 1975 USA
×
prices are in EUR
ref
part #
description
quantity
1
42006018
ref: 1
F7/F7-A
PANEL ASSY-REAR BRAKE
€ 111.00
1
4200602821
ref: 1
F7-B
PANEL ASY-RR BRK,BLK
€ 67.00
2
410481007
ref: 2
SHOE, BRAKE (MCA)
€ 15.00
3
920811766
ref: 3
SPRING,BRAKE SHOE
€ 5.50
4
41050018
ref: 4
CAM-BRAKE
€ 18.00
5
112G0630
ref: 5
BOLT-UPSET
€ 1.00
6
410B0600
ref: 6
WASHER-PLAIN-SMALL,6M
€ 0.50
7
311B0600
ref: 7
NUT,6MM
€ 0.50
8
92055004
ref: 8
RING-O,BRAKE CAM
€ 3.00
9
42029015
ref: 9
F7/F7-A
LEVER-REAR BRAKE CAM
€ 25.50
9
42029023
ref: 9
F7-B
LEVER-REAR BRAKE CAM
€ 11.50
10
42005024
ref: 10
F7/F7-A
DRUM ASSY-REAR BRAKE
€ 136.00
10
42005029
ref: 10
F7-B
DRUM ASSY-REAR BRAKE
€ 136.00
11
601B6302Z
ref: 11
BEARING-BALL,#6302ZC3
€ 22.50
12
42010019
ref: 12
L=112 MM
SPACER-RR HUB BEARING
€ 11.50
13
601B6302
ref: 13
BEARING-BALL,#6302C3
€ 16.00
14
92050009
ref: 14
OIL SEAL-RR BRK DRUM
€ 12.00
15
42031037
ref: 15
AXLE-REAR
€ 28.50
16
42032027
ref: 16
USE W/33040-041
COLLAR-REAR AXLE
€ 7.50
16
42032027
ref: 16
USE W/33040-041
COLLAR-REAR AXLE
€ 7.50
16
42032027
ref: 16
USE W/33040-041
COLLAR-REAR AXLE
€ 7.50
16
42032036
ref: 16
USE W/33040-048
COLLAR-REAR AXLE
€ 12.50
16
42032036
ref: 16
USE W/33040-048
COLLAR-REAR AXLE
€ 12.50
16
42032036
ref: 16
USE W/33040-048
COLLAR-REAR AXLE
€ 12.50
17
321B1400
ref: 17
NUT-CASTLE,14MM
€ 3.00
18
550D3030
ref: 18
PIN-COTTER,3.0X30
€ 1.50
19
42041085
ref: 19
STD
REAR SPROCKET 50T
€ 51.50
19
42041084
ref: 19
OPTION
REAR SPROCKET,46T
€ 146.00
19
42041094
ref: 19
OPTION
REAR SPROCKET 55T
€ 30.00
20
92001087
ref: 20
BOLT-HEX HEAD,10X25
€ 3.00
21
92088007
ref: 21
WASHER,LOCK
€ 8.00
22
695Z43114
ref: 22
UNAVAILABLE IN PRICE BOOK
€ 0.00
22
92057033
ref: 22
DRIVE CHAIN,428X114H
€ 74.50
23
920581015
ref: 23
JOINT-CHAIN,EK428SH
€ 3.50
