TAILLIGHT
F4 SIDEWINDER 1970 USA

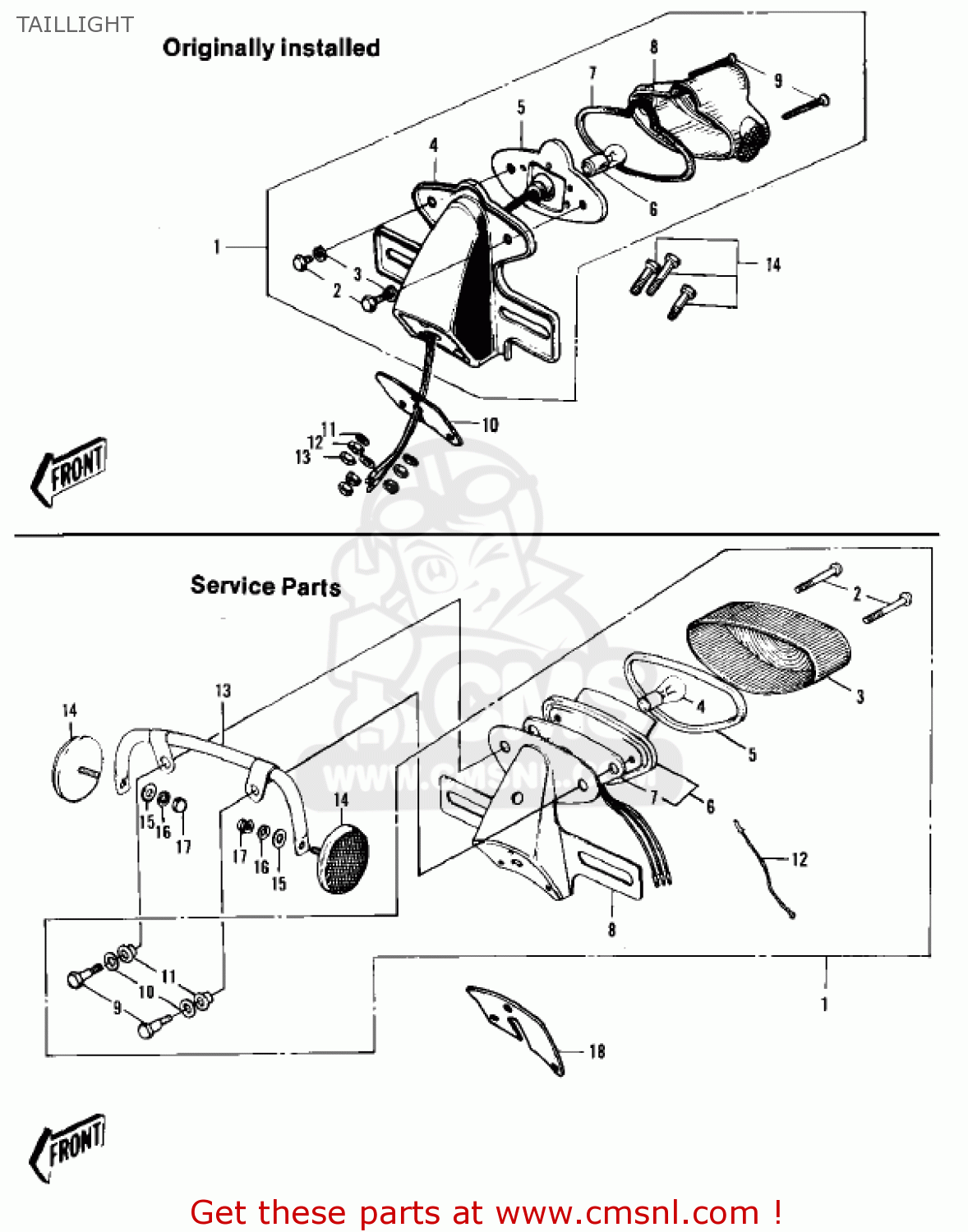

Taillight diagram F4 SIDEWINDER 1970 USA
TAILLIGHT F4 SIDEWINDER 1970 USA
×
prices are in EUR
ref
part #
description
quantity
1
23025027
ref: 1
'69 ORIGINAL EQUIP.
LAMP ASSY, TAIL
€ 43.50
1
2302502910
ref: 1
'70 ORIGINAL EQUIP.
LAMP ASSY-TAIL
€ 43.50
2
110N0512
ref: 2
BOLT-HEX HEAD,5X12
€ 0.50
2
110N0512A
ref: 2
I.S.O.
BOLT-HEX HEAD,5X12
€ 0.50
3
461F0500
ref: 3
WASHER-SPRING,5MM
€ 0.50
4
23036002
ref: 4
'69
BKT-LICENSE PLT
€ 25.50
4
2303600710
ref: 4
'70
BKT-LICENSE PLT,BLACK
€ 33.00
5
23027009
ref: 5
SOCKET-TAIL LAMP
€ 18.00
6
92069059
ref: 6
BULB,12V 32/3CP
€ 5.50
7
23028006
ref: 7
UNAVAILABLE IN PRICE BOOK
€ 0.00
8
23026010
ref: 8
LENS,TAIL LAMP
€ 64.50
9
220E0450
ref: 9
SCREW-PAN HEAD,4X50
€ 3.00
10
35039001
ref: 10
6T
TAIL LAMP SHOCK DAMPER
€ 8.00
10
35039005
ref: 10
12T
DAMPER,TAIL LAMP
€ 6.50
10
35039005
ref: 10
8T
DAMPER,TAIL LAMP
€ 6.50
11
461F0600
ref: 11
WASHER-SPRING,6MM
€ 0.50
12
311B0600
ref: 12
NUT,6MM
€ 0.50
13
312B0600
ref: 13
NUT,6MM
€ 0.50
14
112G0620
ref: 14
FOR 35039-001, 005
BOLT 6X20
€ 1.00
14
112G0630
ref: 14
FOR 35039-003
BOLT-UPSET
€ 1.00
1
2302402021
ref: 1
SERVICE PARTS ONLY
LAMP ASSY-TAIL,BLACK
€ 43.50
2
220R0455
ref: 2
SCREW-PAN-CROS
€ 3.50
2
220R0455
ref: 2
SCREW-PAN-CROS
€ 3.50
3
23026022
ref: 3
LENS,TAIL LAMP
€ 47.50
4
92069059
ref: 4
BULB,12V 32/3CP
€ 5.50
5
23028016
ref: 5
GASKET-TAIL LAMP LENS (NAS)
€ 7.00
6
23027029
ref: 6
CASE-TAIL LAMP
€ 24.50
7
23028015
ref: 7
GASKET-TAIL LAMP CASE (NAS)
€ 6.50
8
2303601421
ref: 8
BKT-LICENSE PLT,BLACK
€ 25.50
9
92001111
ref: 9
BOLT
€ 6.50
10
920221561
ref: 10
WASHER,8.5X20X1.6
€ 2.50
11
92075091
ref: 11
DAMPER RUBBER
€ 1.50
12
26011014
ref: 12
WIRE-IGNITION LEAD
€ 1.00
13
28013002
ref: 13
BRACKET-REFLECTOR
€ 8.50
14
28012008
ref: 14
REFLECTOR-REFLEX,REAR
€ 8.50
15
411B0500
ref: 15
WASHER-PLAIN,5MM
€ 0.50
16
461F0500
ref: 16
WASHER-SPRING,5MM
€ 0.50
17
322N0500
ref: 17
NUT-CAP,5MM
€ 2.00
18
35039005
ref: 18
12T
DAMPER,TAIL LAMP
€ 6.50
18
35039005
ref: 18
81
DAMPER,TAIL LAMP
€ 6.50
