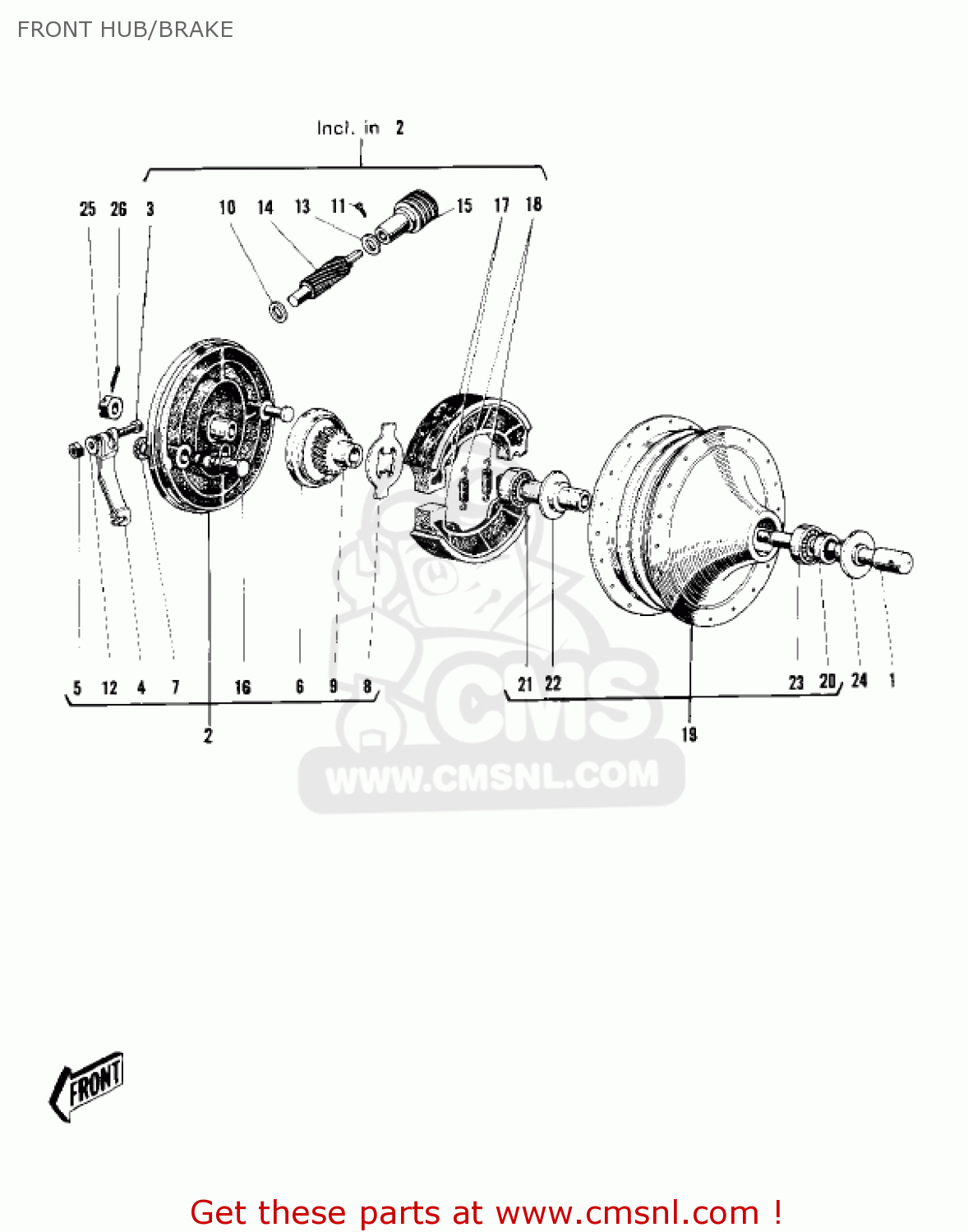

FRONT HUB/BRAKE

ref

part #

description

quantity

1

41068024
ref: 1
L=234 MM

AXLE,FRONT

€ 61.00

2

41035019
ref: 2

FRONT BRAKE PANEL ASSEMBLY

€ 256.00

3

110R0635
ref: 3

BOLT 6X35

€ 3.50

4

41053003
ref: 4

LEVER-BRAKE CAM

€ 22.50

5

311B0600
ref: 5

NUT,6MM

€ 0.50

6

92050010
ref: 6

OIL SEAL-F BRK PANEL

€ 13.00

7

41051001
ref: 7

DUST SHIELD-BRAKE CAM

€ 2.50

8

41064003
ref: 8

RECEIVER-SPEEDOMETER

€ 7.00

9

41059008
ref: 9

SPEEDOMETER GEAR

€ 36.00

10

41063001
ref: 10
O.D.=9 MM

WASHER-THRST SPD PINI

€ 3.00

11

41070001
ref: 11
WHITE-PLATED

SCREW-BUSHING SET

€ 0.50

11

41070004
ref: 11
I.S.O. YELLOW-PLATED

SCREW-BUSHING SET

€ 0.50

12

410B0600
ref: 12

WASHER-PLAIN-SMALL,6M

€ 0.50

13

41063004
ref: 13
O.D.=13 MM

WASHER,8X12X0.5

€ 4.00

14

41060008
ref: 14

SPEEDOMETER PINION

€ 22.00

15

41062004
ref: 15

BUSH-SPEEDMETER CABLE

€ 7.00

16

42026021
ref: 16

CAM-BRAKE

€ 19.00

17

920811766
ref: 17

SPRING,BRAKE SHOE

€ 5.50

18

42020004
ref: 18

SPRING-BRAKE SHOE

€ 5.50

19

4103404880
ref: 19

FRONT BRAKE DRUM ASSEMBLY,BUFF

€ 589.00

20

92050008
ref: 20

OIL SEAL-RR BRK DRUM

€ 10.00

21

601B6202Z
ref: 21

BEARING-BALL,#6202ZC3

€ 13.00

22

41039004
ref: 22

SPACER-FR HUB BEARING

€ 6.00

23

601B6202
ref: 23

BEARING-BALL,#6202C3

€ 14.50

24

41069004
ref: 24

COLLAR-FRONT HUB R.H

€ 3.50

25

321B1400
ref: 25

NUT-CASTLE,14MM

€ 3.00

26

550D3035
ref: 26

PIN-COTTER,3.0X35

€ 2.00

all assemblies
