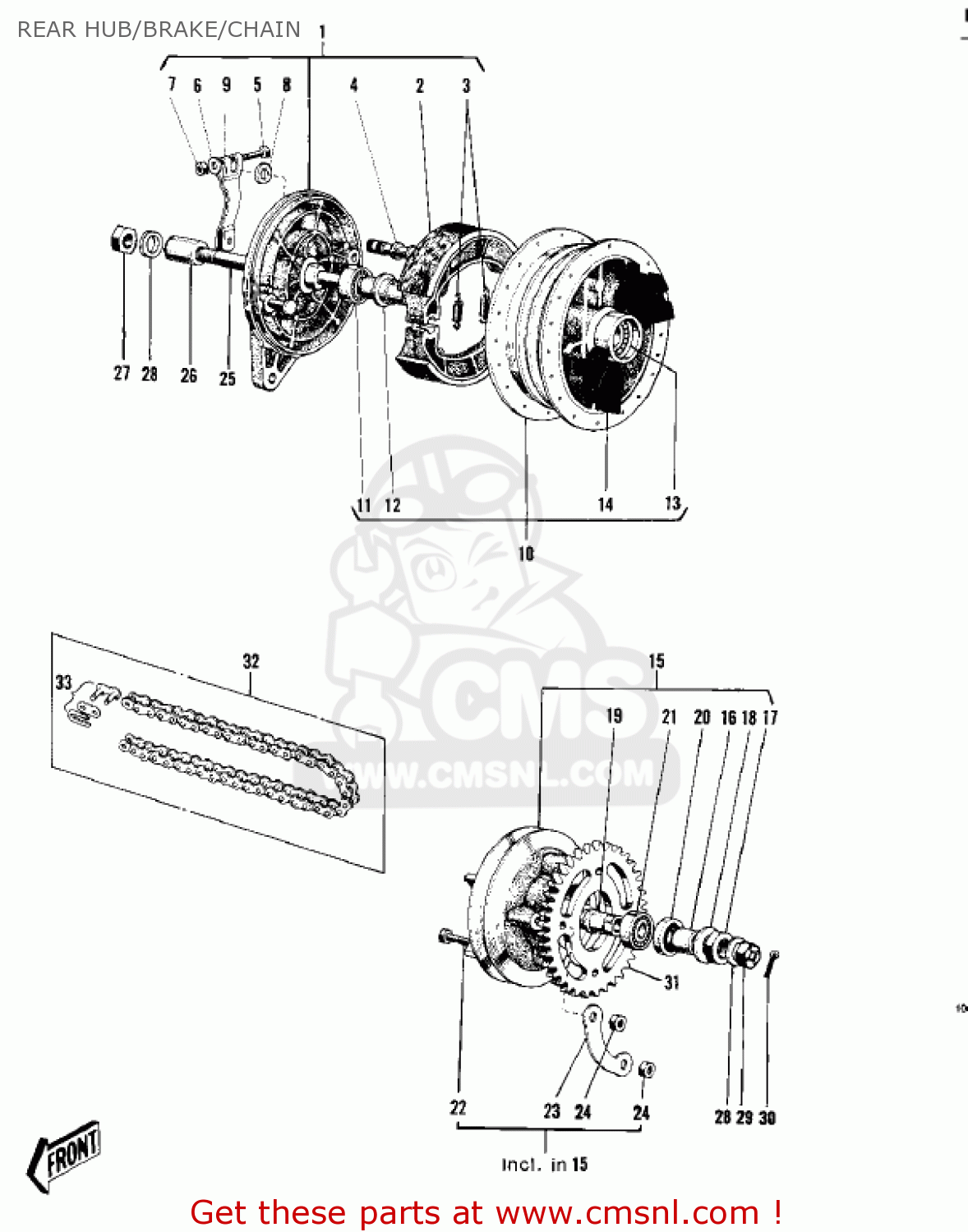

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

42006008
ref: 1

REAR BRAKE PANEL ASSEMBLY

€ 225.00

2

42019011
ref: 2

SHOE,BRAKE (MCA)

€ 18.50

2

42019011
ref: 2

SHOE,BRAKE (MCA)

€ 18.50

3

42020004
ref: 3

SPRING-BRAKE SHOE

€ 5.50

4

42026021
ref: 4

CAM-BRAKE

€ 19.00

4

42026021
ref: 4

CAM-BRAKE

€ 19.00

5

110R0635
ref: 5

BOLT 6X35

€ 3.50

6

410B0600
ref: 6

WASHER-PLAIN-SMALL,6M

€ 0.50

7

311B0600
ref: 7

NUT,6MM

€ 0.50

8

41051001
ref: 8

DUST SHIELD-BRAKE CAM

€ 2.50

9

42029007
ref: 9

LEVER REAR BRAKE CAM

€ 0.00

10

42005010
ref: 10

REAR BRAKE DRUM ASSEMBLY

€ 365.50

11

601B6202Z
ref: 11

BEARING-BALL,#6202ZC3

€ 13.00

12

42010004
ref: 12

REAR HUB BEARING SPACER

€ 9.50

13

601B6202
ref: 13

BEARING-BALL,#6202C3

€ 14.50

14

42014009
ref: 14

REAR HUB SHOCK DAMPER

€ 20.00

15

42008003
ref: 15

REAR HUB COUPLING ASSEMBLY

€ 225.00

16

42037007
ref: 16
O.D.=30 MM

OIL SEAL BUSHING

€ 23.50

17

42045015
ref: 17

NUT,20MM

€ 4.50

18

42046003
ref: 18

WASHER,21X33X2.6

€ 2.50

19

42036007
ref: 19

SLEEVE RR HUB COUPLING

€ 0.00

20

92052007
ref: 20
O.D.=52 MM

OIL SEAL,WTC30528

€ 11.00

21

601B6304
ref: 21

BEARING-BALL,#6304C3

€ 31.00

22

92003087
ref: 22

BOLT-RR SPRCKT 10X49

€ 4.00

23

92088005
ref: 23

WASHER,SPROCKET LOCK

€ 4.00

24

315B1000
ref: 24

NUT,10MM

€ 0.50

25

42031015
ref: 25

AXLE-REAR

€ 9.00

26

42032011
ref: 26
O.D.=27 MM

REAR HUB COLLAR,RH

€ 17.00

27

314B1400
ref: 27

NUT,14MM

€ 1.00

28

42046006
ref: 28

WASHER PLAIN

€ 2.50

28

411B1400
ref: 28

WASHER-PLAIN,14MM

€ 2.50

29

321B1400
ref: 29

NUT-CASTLE,14MM

€ 3.00

30

550D2015
ref: 30

PIN-COTTER,2.0X15

€ 1.00

31

42041029
ref: 31
STD

REAR SPROCKET 39T

€ 18.00

31

42041028
ref: 31
OPTION

REAR SPROCKET 37T

€ 40.00

31

42041064
ref: 31

REAR SPROCKET 41T

€ 40.50

32

695Z5296
ref: 32
SH

UNAVAILABLE IN PRICE BOOK

€ 0.00

33

92058008
ref: 33

JOINT-CHAIN

€ 4.00

all assemblies
