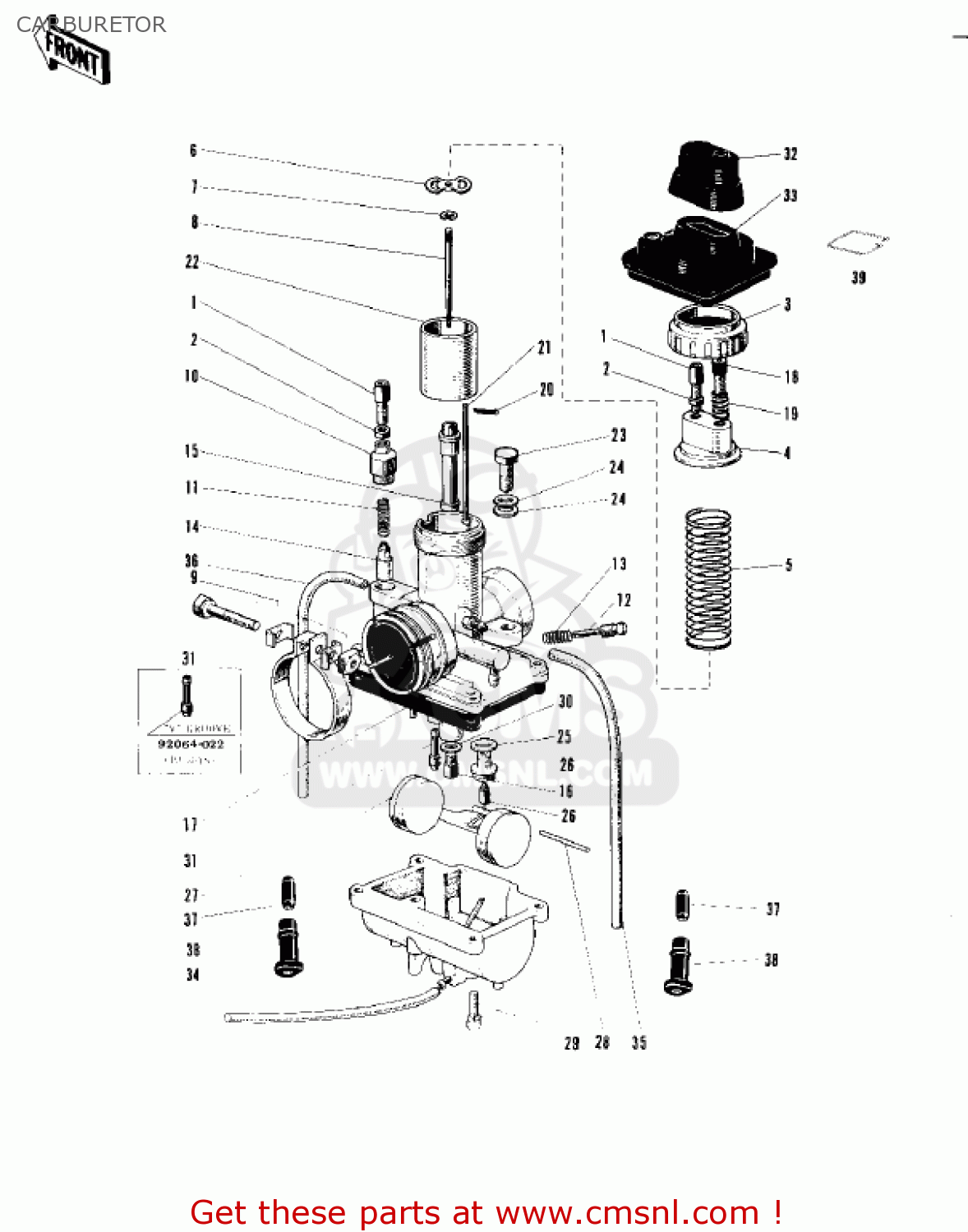

CARBURETOR

ref

part #

description

quantity

1 - 30

16001073
ref: 1 - 30
VM28SC

CARBURETOR ASSEMBLY

€ 341.00

1

16002002
ref: 1

ADJUSTER-CABLE,STARTE

€ 8.00

2

16003004
ref: 2

NUT-CABLE ADJUST LOCK

€ 4.50

3

16004006
ref: 3

CAP-MIXING CHAMBER

€ 14.00

4

16005010
ref: 4

TOP-MIXING CHAMBER

€ 3.50

5

16006007
ref: 5

SPRING-THROTTLE VALVE

€ 4.00

6

16007007
ref: 6

SPRING SEAT-THRTL VLV

€ 7.50

7

16008010
ref: 7

CLAMP,E-TYPE

€ 5.00

8

16009031
ref: 8

CARBURETOR NEEDLE,5DP7

€ 18.50

9

16051002
ref: 9

CLAMP SET-CARB MOUNT

€ 8.00

10

16012006
ref: 10

CAP-STARTER PLUNGER

€ 3.50

11

16013005
ref: 11

SPRING-STARTER PLUNG

€ 3.00

12

16014006
ref: 12

SCREW-PILOT AIR

€ 9.00

13

16022007
ref: 13

SPRING-THR STOP SCREW

€ 5.50

14

16016002
ref: 14

PLUNGER,STARTER

€ 20.00

15

16017039
ref: 15

JET,NEEDLE,#O-2

€ 22.00

16

92063016
ref: 16
S.T.D.

MAIN JET #150

€ 13.00

16

92063014
ref: 16
OPTION

MAIN JET #130

€ 10.50

16

92063015
ref: 16
OPTION

MAIN JET #140

€ 4.50

16

92063017
ref: 16
OPTION

MAIN JET #160

€ 10.00

16

92063019
ref: 16
OPTION

JET-MAIN,#170

€ 9.50

17

16019008
ref: 17

GASKET,FLOAT CHAMBER (NAS)

€ 27.00

18

16021002
ref: 18

SCREW-THROTTLE STOP

€ 12.00

19

16022005
ref: 19

SPRING-THR STOP SCREW

€ 5.50

20

16023001
ref: 20

COTTER PIN

€ 1.50

21

16024011
ref: 21

THROTTLE VALVE STOP ROD

€ 9.50

22

16025014
ref: 22

VALVE-THROTTLE CA2.5

€ 19.50

23

92001011
ref: 23

BOLT-BANJO

€ 2.50

24

751P0800
ref: 24

GASKET,8MM

€ 1.00

25

16029004
ref: 25

WASHER-FLOAT VLV SEAT

€ 2.50

26

16030005
ref: 26

VALVE-FLOAT,2.5

€ 43.00

27

16031023
ref: 27

FLOAT

€ 22.50

28

16032003
ref: 28

FLOAT PIN

€ 4.00

29

16033008
ref: 29

SCREW-FLOAT CHAMBER

€ 1.00

29

16033009
ref: 29
I.S.O. THREAD

SCREW-FLOAT CHAMBER

€ 0.50

30

16034001
ref: 30

WASHER-MAIN JET

€ 2.50

31

92064008
ref: 31

PILOT JET #30

€ 7.50

31

92064022
ref: 31
I.S.O. THREAD

PILOT JET #30 ISO

€ 11.50

32

14038010
ref: 32

CARBURETOR CAP GROMMET

€ 8.00

33

14038019
ref: 33

CARBURETOR CAP

€ 9.50

34

92059033
ref: 34

FUEL OVERFLOW PIPE

€ 1.50

35

92059038
ref: 35

AIR VENT PIPE,A

€ 4.50

36

92059042
ref: 36

AIR VENT PIPE,B

€ 8.00

37

92098001
ref: 37

PIPE

€ 1.50

38

16136003
ref: 38

AIR VENT PIPE GROMMET

€ 3.00

39

11033003
ref: 39

CARBURETOR HOLDER

€ 6.50
