Genuine ZX Kawasaki Parts delivered quickly!


SWINGARM

ZX900EH1 NINJA ZX9R 2000 EUROPE UK FR IS NR

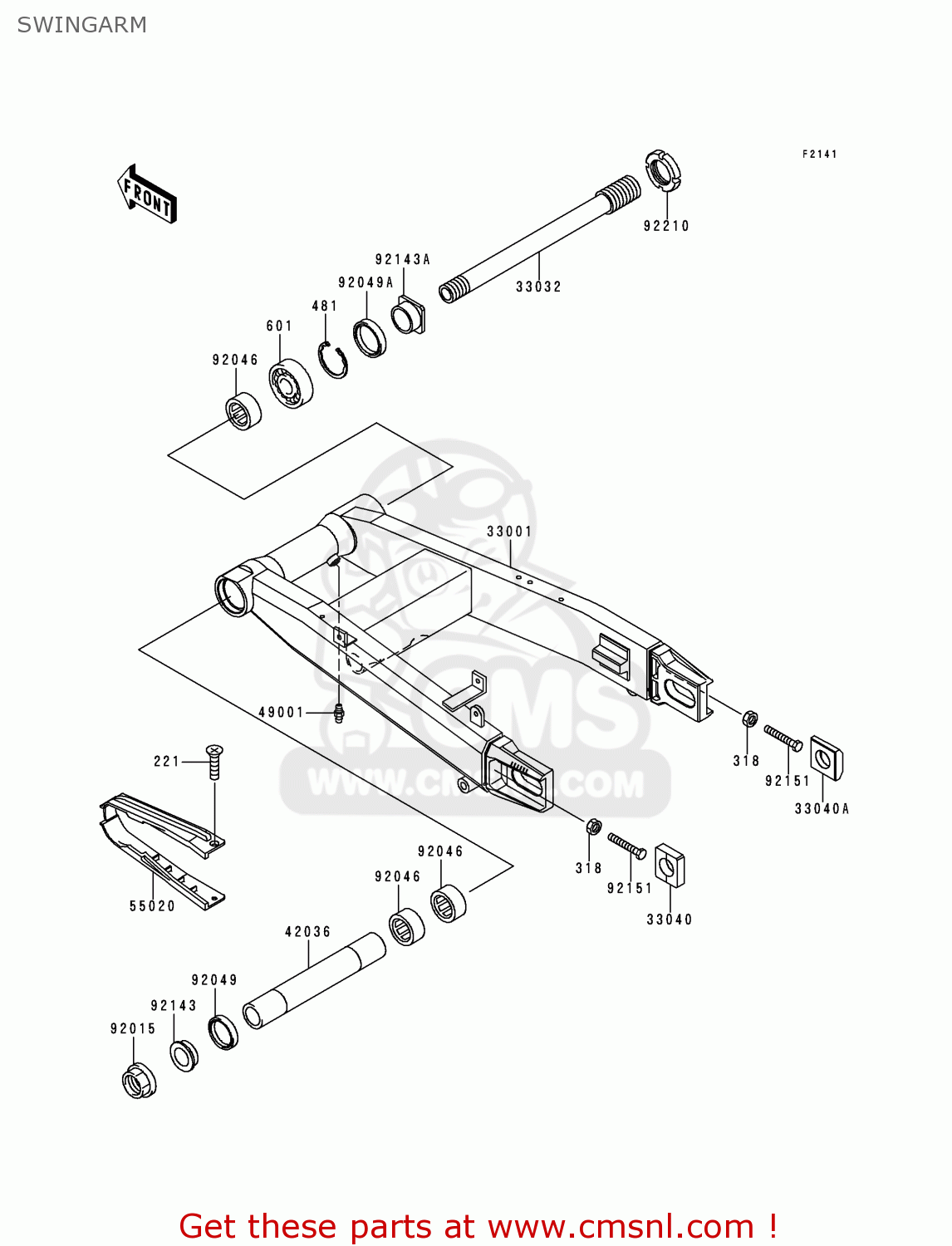

Swingarm diagram ZX900EH1 NINJA ZX9R 2000 EUROPE UK FR IS NR

SWINGARM ZX900EH1 NINJA ZX9R 2000 EUROPE UK FR IS NR
SWINGARM ZX900EH1 NINJA ZX9R 2000 EUROPE UK FR IS NR
SWINGARM ZX900EH1 NINJA ZX9R 2000 EUROPE UK FR IS NR
prices are in EUR
ref
part #
description
quantity
221
221C0508
ref: 221
SCREW-CSK-CROS,5X8
221C0508
€ 2.50
318
318G0800
ref: 318
NUT-HEX-SMALL,8MM
318G0800
€ 1.00
481
481J4700
ref: 481
CIRCLIP,47MM
481J4700
€ 4.00
601
601B6005U
ref: 601
BEARING-BALL,#6005U
601B6005U
€ 25.00
33001
330011578TX
ref: 33001
ARM-COMP-SWING,SILVER
€ 1,227.00
33032
330321173
ref: 33032
SHAFT-SWING ARM
€ 104.00
33040
330401114
ref: 33040
ADJUSTER-CHAIN
330401114
€ 13.50
33040A
330401180
ref: 33040A
ADJUSTER-CHAIN,RH
330401180
€ 16.50
42036
420361312
ref: 42036
SLEEVE,SWING ARM,L=22
420361312
€ 72.00
49001
490011051
ref: 49001
NIPPLE-GREASE,ROD BOL
490011051
€ 2.00
55020
550201700
ref: 55020
GUARD,CHAIN
550201700
€ 54.00
92015
920151845
ref: 92015
NUT,FLANGED,25MM
920151845
€ 17.00
92046
920461205
ref: 92046
BEARING-NEEDLE,BM3520
920461205
€ 29.00
92049
920491381
ref: 92049
SEAL-OIL,MHA 35 47 5
920491381
€ 8.50
92049A
920491521
ref: 92049A
SEAL-OIL,KC38X47X6
920491521
€ 9.50
92143
921431481
ref: 92143
COLLAR,SWING ARM,L=12
921431481
€ 20.50
92143A
921431681
ref: 92143A
COLLAR,SWING ARM,L=15
921431681
€ 20.00
92151
921511578
ref: 92151
BOLT,8X55
€ 1.50
92210
922101205
ref: 92210
NUT,32MM
922101205
€ 18.00
