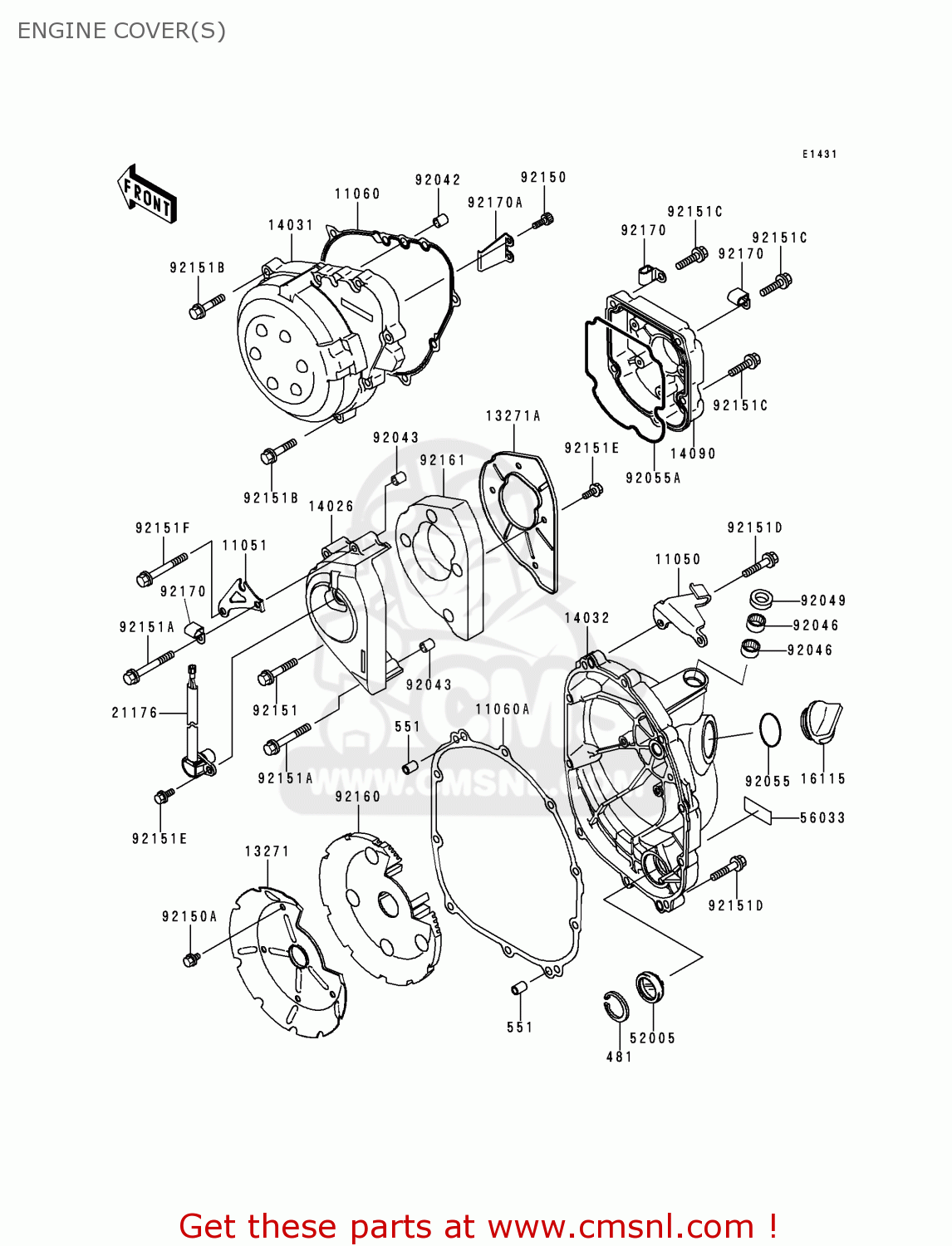

ENGINE COVER(S)

ref

part #

description

quantity

481

481J3000
ref: 481

CIRCLIP-TYPE-C,30MM

€ 1.00

551

551A0814
ref: 551

PIN-DOWEL,8X14

€ 0.50

11050

110501435
ref: 11050

BRACKET,CLUTCH CABLE

€ 9.00

11051

110511807
ref: 11051

BRACKET,CABLE

€ 3.50

11060

110601854
ref: 11060

GASKET,GENERATOR COVE (NAS)

€ 23.50

11060A

110601855
ref: 11060A

GASKET,CLUTCH COVER (NAS)

€ 15.00

13271

132711053
ref: 13271

PLATE

€ 14.00

13271A

132711055
ref: 13271A

PLATE

€ 7.50

14026

140261272
ref: 14026

COVER-CHAIN

€ 193.50

14031

140311371
ref: 14031

COVER-GENERATOR

€ 229.50

14032

140321482
ref: 14032

COVER-CLUTCH

€ 262.00

14090

140901859
ref: 14090

COVER,PULSE

€ 35.50

16115

161151009
ref: 16115

CAP-OIL FILLER

€ 10.00

21176

211761076
ref: 21176

SENSOR,SPEED

€ 117.00

52005

520051120
ref: 52005

GAUGE

€ 14.50

56033

560331075
ref: 56033

LABEL-MANUAL,OIL CAPA

€ 4.50

92042

92042007
ref: 92042

PIN-DOWEL

€ 4.00

92043

920431322
ref: 92043

PIN,8X16

€ 2.50

92046

920461010
ref: 92046

BEARING-NEEDLE,HK1210

€ 17.00

92049

920491475
ref: 92049

SEAL-OIL,CLUTCH RELEA

€ 2.50

92055

92055049
ref: 92055

'0'RING,31MM

€ 2.50

92055A

920551570
ref: 92055A

RING-O,PULSE COVER

€ 10.00

92150

921501180
ref: 92150

BOLT

€ 2.50

92150A

921501406
ref: 92150A

BOLT

€ 2.00

92151

921511131
ref: 92151

BOLT,6X40

€ 3.00

92151A

921511132
ref: 92151A

BOLT,6X55

€ 3.00

92151B

921511134
ref: 92151B

BOLT,6X30

€ 1.50

92151C

921511225
ref: 92151C

BOLT,6X25

€ 1.50

92151D

921511228
ref: 92151D

BOLT,FLANGED,M6X30

€ 1.50

92151E

921511249
ref: 92151E

BOLT,5X12

€ 1.00

92151F

921511336
ref: 92151F

BOLT,6X45

€ 2.00

92160

921601920
ref: 92160

DAMPER

€ 27.50

92161

921611148
ref: 92161

DAMPER

€ 17.50

92170

921701577
ref: 92170

CLAMP

€ 3.00

92170A

921701894
ref: 92170A

CLAMP

€ 2.50
