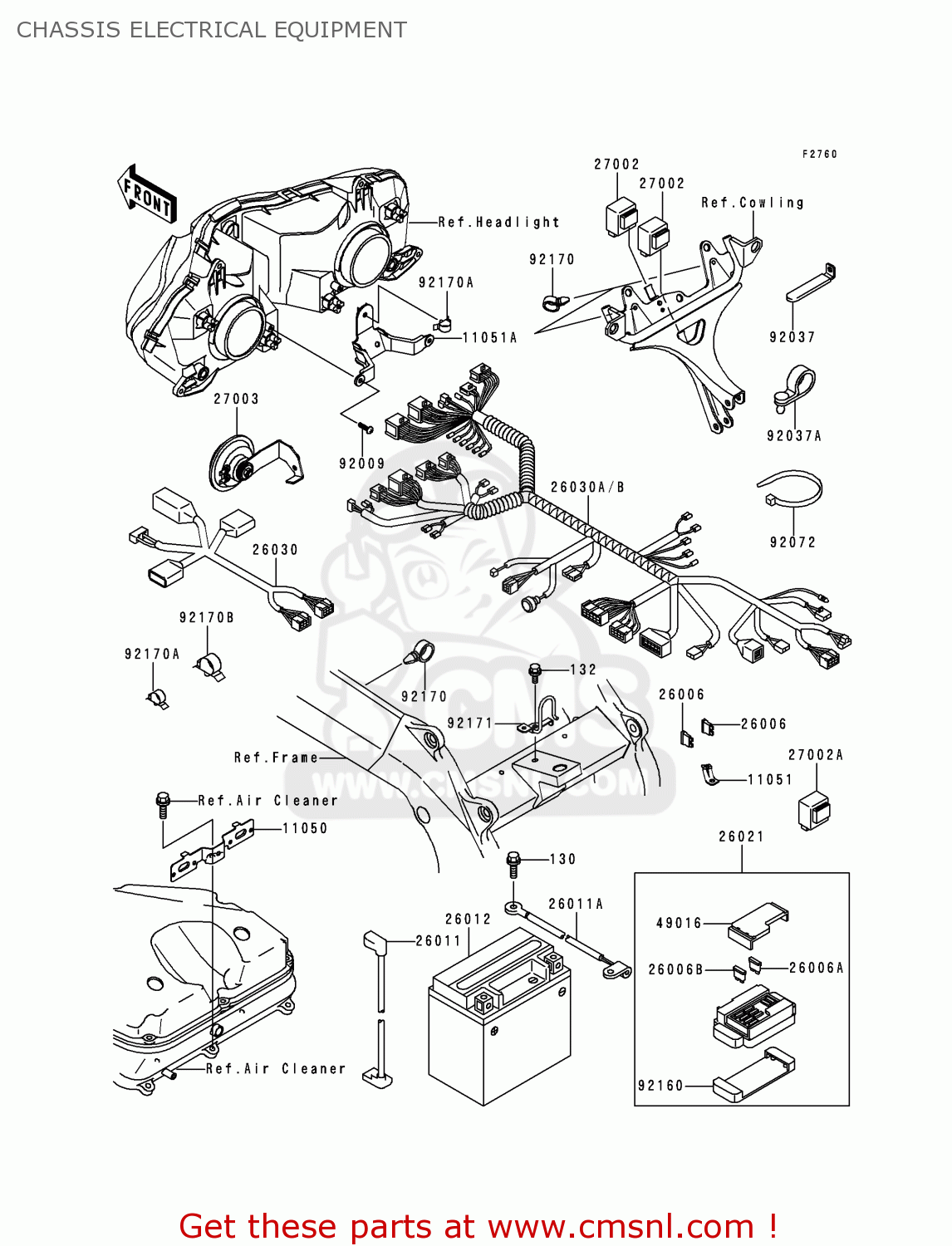

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130V0610
ref: 130

BOLT-FLANGED,6X10

€ 0.50

132

132J0612
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

11050

110501791
ref: 11050

BRACKET,HARNESS COUPL

€ 9.00

11051

110511824
ref: 11051

BRACKET,FUSE

€ 3.50

11051A

110511827
ref: 11051A

BRACKET,HEAD LAMP

€ 10.50

26006

260061051
ref: 26006

FUSE,20A

€ 3.00

26006A

260061067
ref: 26006A

FUSE, 30A-G

€ 3.00

26006B

260061068
ref: 26006B

FUSE, 10A-R

€ 3.00

26011

260111736
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 30.00

26011A

260111759
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 20.50

26012

260121326
ref: 26012

BATTERY,YTX9BS,12V8AH

€ 100.00

26021

260211095
ref: 26021

JUNCTION BOX

€ 135.50

26030

260301675
ref: 26030

HARNESS,FR

€ 81.00

26030A

260301693
ref: 26030A

HARNESS,MAIN

€ 414.00

27002

270021086
ref: 27002

RELAY-ASSY

€ 23.00

27002A

270021101
ref: 27002A

RELAY-ASSY,TURN SIGNA

€ 49.50

27003

270031407
ref: 27003

HORN

€ 55.00

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

92009

920091197
ref: 92009

SCREW

€ 2.50

92037

920371608
ref: 92037

CLAMP

€ 5.50

92037A

920371903
ref: 92037A

CLAMP

€ 5.00

92072

920721197
ref: 92072

BAND

€ 5.00

92160

921601650
ref: 92160

DAMPER,JUNCTION BOX

€ 9.50

92170

921701067
ref: 92170

CLAMP,HOSE

€ 5.00

92170A

921701293
ref: 92170A

CLAMP,HARNESS

€ 5.00

92170B

921701494
ref: 92170B

CLAMP,HARNESS

€ 3.50

92171

921711204
ref: 92171

CLAMP,HARNESS

€ 12.00

all assemblies
