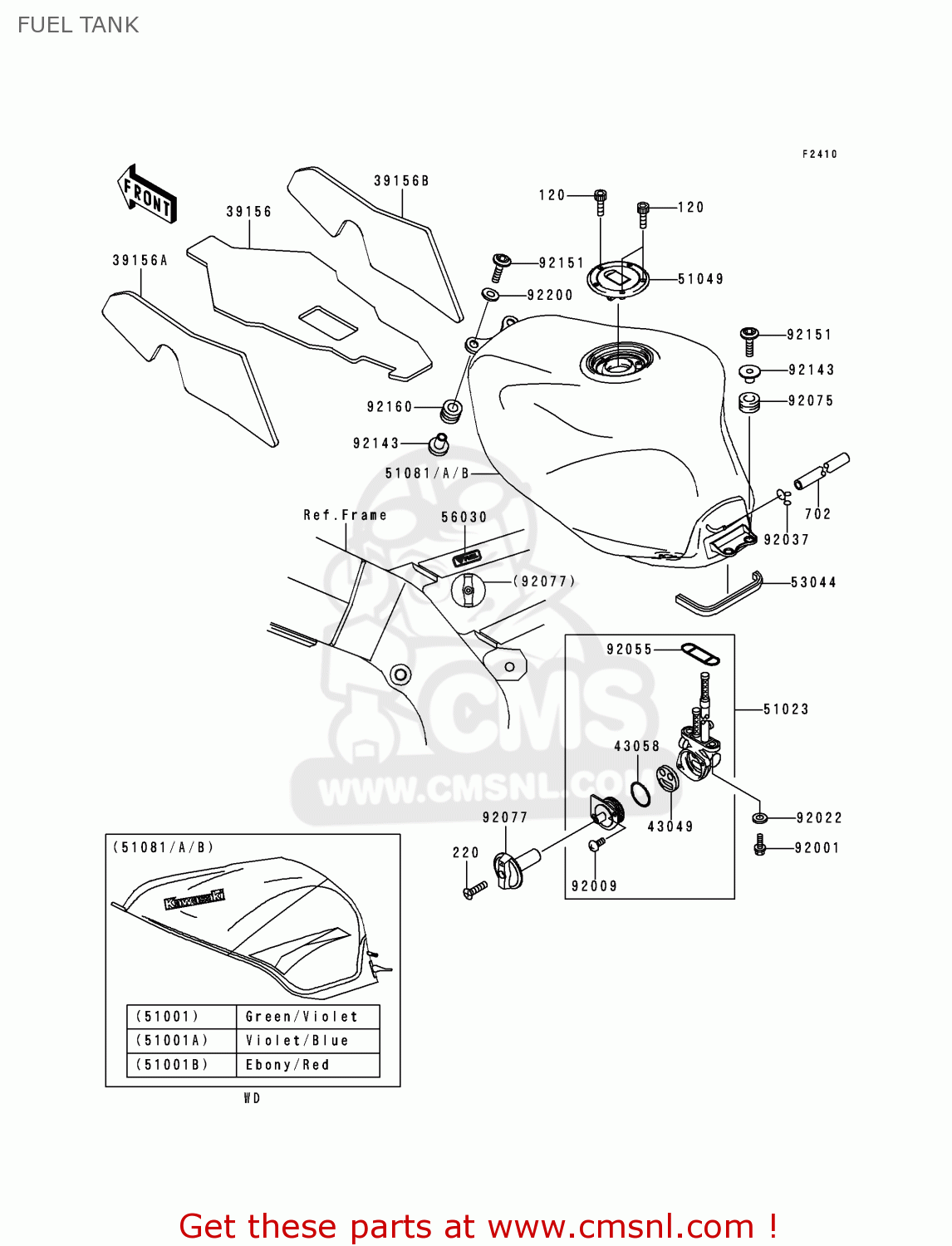

FUEL TANK

ref

part #

description

quantity

120

120S0516
ref: 120

BOLT-SOCKET

€ 0.50

220

220C0416
ref: 220

SCREW-PAN-CROS

€ 1.00

702

702A06520
ref: 702

TUBE-RUBBER,6X520

€ 14.50

39156

391561600
ref: 39156

PAD,FUEL TANK,CNT

€ 51.00

39156A

391561601
ref: 39156A

PAD,FUEL TANK,LH

€ 18.00

39156B

391561602
ref: 39156B

PAD,FUEL TANK,RH

€ 18.00

43049

430491075
ref: 43049

PACKING,TAP VALVE (NAS)

€ 6.00

43058

430581083
ref: 43058

RING,TAP LEVER

€ 5.50

51023

510231237
ref: 51023

TAP-ASSY,FUEL

€ 100.00

51049

510491120
ref: 51049

CAP-TANK,FUEL

€ 87.00

51081

510815249G9
ref: 51081

TANK-COMP-FUEL,GREEN/

€ 1,027.50

51081A

5108152534C
ref: 51081A

TANK-COMP-FUEL,VIOLET

€ 864.00

51081B

510815255J3
ref: 51081B

TANK-COMP-FUEL,EBONY/

€ 1,027.50

53044

530441296
ref: 53044

TRIM

€ 8.00

56030

560301195
ref: 56030

LABEL,FUEL TAP

€ 4.00

92001

920011524
ref: 92001

BOLT, 6X25

€ 1.50

92009

920091386
ref: 92009

SCREW,3X8

€ 2.00

92022

92022183
ref: 92022

WASHER,6.2X11X1.5

€ 2.50

92037

92037010
ref: 92037

CLAMP-FUEL PIPE

€ 2.50

92055

920551112
ref: 92055

RING-/,FUEL TAP PACKI

€ 3.00

92075

92075209
ref: 92075

DAMPER RUBBER

€ 3.00

92077

920771123
ref: 92077

KNOB,FUEL TAP

€ 13.00

92143

921431515
ref: 92143

COLLAR

€ 13.50

92151

921511605
ref: 92151

BOLT,SOCKET,6X30

€ 1.50

92160

921601162
ref: 92160

DAMPER

€ 3.00

92200

922001087
ref: 92200

WASHER,6.5X22X1.6

€ 2.00
