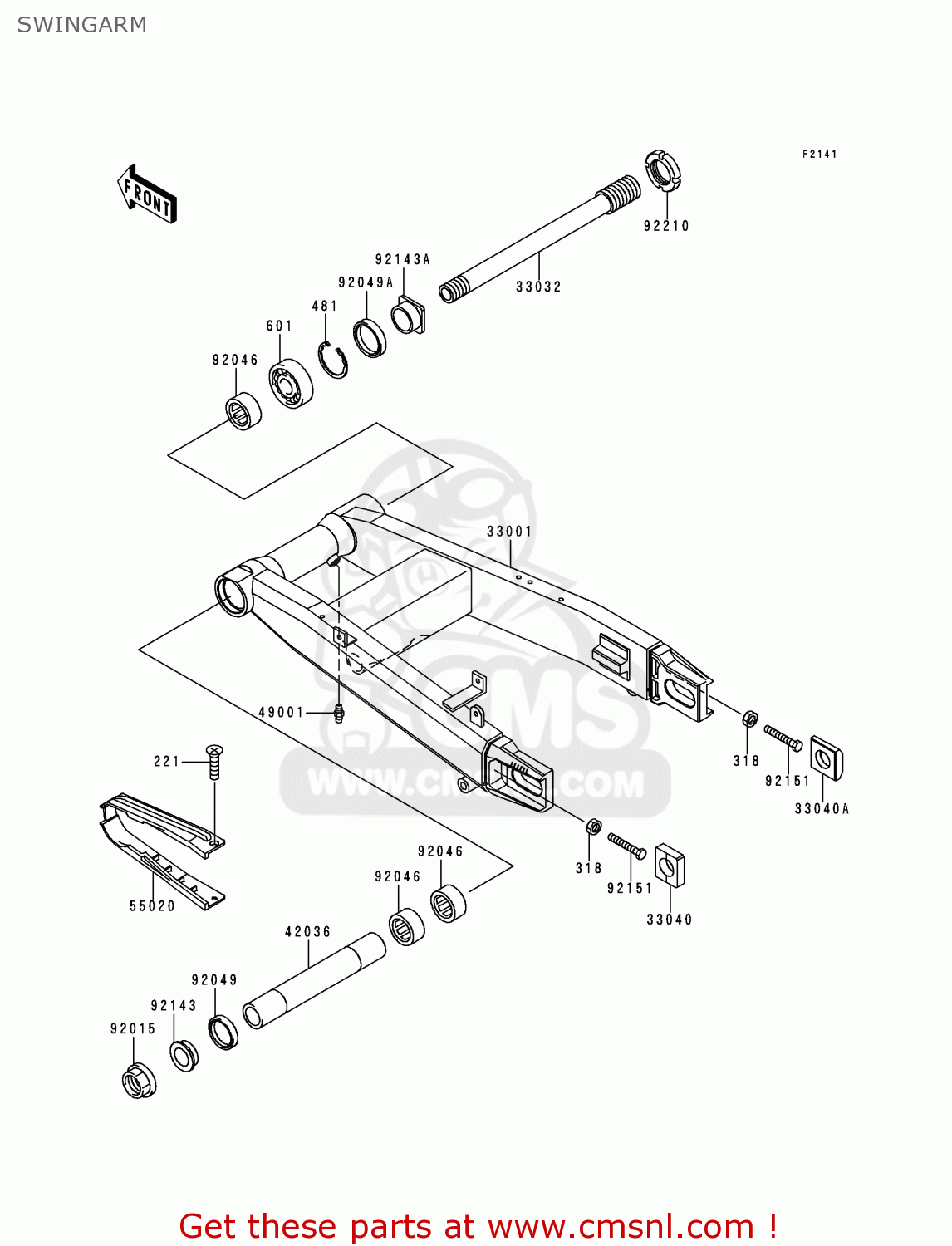

SWINGARM

ref

part #

description

quantity

221

221C0508
ref: 221

SCREW-CSK-CROS,5X8

€ 2.50

318

318G0800
ref: 318

NUT-HEX-SMALL,8MM

€ 1.00

481

481J4700
ref: 481

CIRCLIP,47MM

€ 4.00

601

601B6005U
ref: 601

BEARING-BALL,#6005U

€ 25.00

33001

330011578TX
ref: 33001

ARM-COMP-SWING,SILVER

€ 1,227.00

33032

330321173
ref: 33032

SHAFT-SWING ARM

€ 104.00

33040

330401114
ref: 33040

ADJUSTER-CHAIN

€ 13.50

33040A

330401180
ref: 33040A

ADJUSTER-CHAIN,RH

€ 16.50

42036

420361312
ref: 42036

SLEEVE,SWING ARM,L=22

€ 72.00

49001

490011051
ref: 49001

NIPPLE-GREASE,ROD BOL

€ 2.00

55020

550201700
ref: 55020

GUARD,CHAIN

€ 54.00

92015

920151845
ref: 92015

NUT,FLANGED,25MM

€ 17.00

92046

920461205
ref: 92046

BEARING-NEEDLE,BM3520

€ 29.00

92049

920491381
ref: 92049

SEAL-OIL,MHA 35 47 5

€ 8.50

92049A

920491521
ref: 92049A

SEAL-OIL,KC38X47X6

€ 9.50

92143

921431481
ref: 92143

COLLAR,SWING ARM,L=12

€ 20.50

92143A

921431681
ref: 92143A

COLLAR,SWING ARM,L=15

€ 20.00

92151

921511578
ref: 92151

BOLT,8X55

€ 1.50

92210

922101205
ref: 92210

NUT,32MM

€ 18.00
