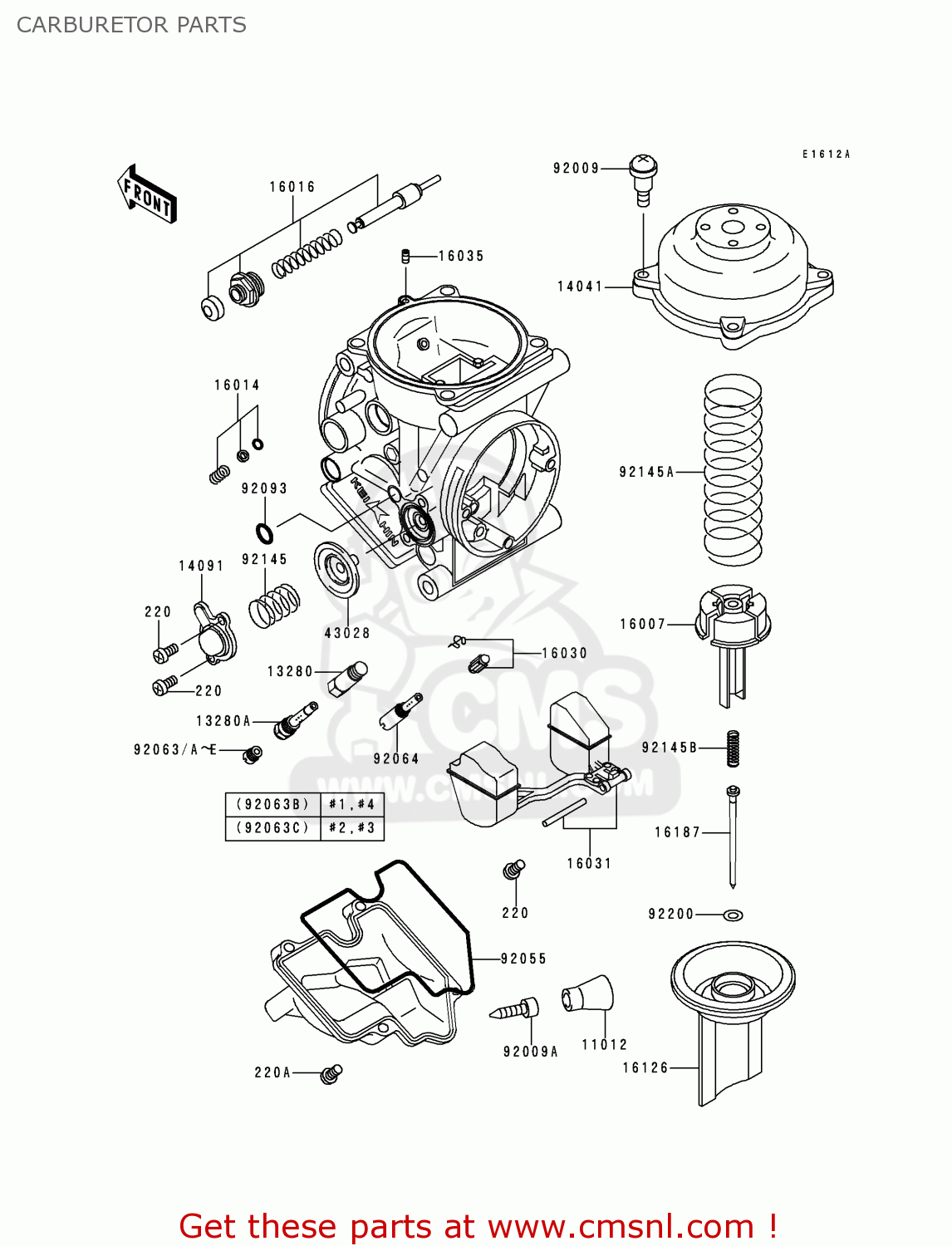

CARBURETOR PARTS

ref

part #

description

quantity

220

220D0408
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220D0414
ref: 220A

SCREW-PAN-CROS

€ 2.00

11012

110121675
ref: 11012

CAP,DRAIN SCREW

€ 6.00

13280

132801096
ref: 13280

HOLDER,JET

€ 19.50

13280A

132801194
ref: 13280A

HOLDER,JET NEEDLE

€ 18.50

14041

140411138
ref: 14041

COVER-COMP,MIXING TOP

€ 66.50

14091

140911246
ref: 14091

COVER,AIR CUT VALVE

€ 23.00

16007

160071206
ref: 16007

SEAT-SPRING,VACUUM VA

€ 16.00

16014

160141105
ref: 16014

SCREW-PILOT AIR

€ 16.00

16016

160161114
ref: 16016

PLUNGER

€ 43.50

16030

160301094
ref: 16030

VALVE-FLOAT

€ 93.00

16031

160311097
ref: 16031

FLOAT

€ 45.00

16035

160351055
ref: 16035

JET-AIR,LEAK

€ 10.00

16126

161261392
ref: 16126

VALVE,VACUUM

€ 149.50

16187

161871131
ref: 16187

NEEDLE-JET,N9BB

€ 25.50

43028

430281085
ref: 43028

DIAPHRAGM,AIR CUT VAL

€ 18.00

92009

920091549
ref: 92009

SCREW,4X4.4

€ 3.00

92009A

920091551
ref: 92009A

SCREW,DRAIN

€ 6.50

92055

920551589
ref: 92055

RING-O,FLOAT

€ 22.50

92063

920631332
ref: 92063

JET-MAIN,#155

€ 9.50

92063A

920631344
ref: 92063A

JET-MAIN,#158

€ 9.50

92063B

920631345
ref: 92063B

JET-MAIN,#160

€ 9.50

92063C

920631347
ref: 92063C

JET-MAIN,#165

€ 10.50

92063D

920631386
ref: 92063D

JET-MAIN,#170

€ 10.50

92063E

920631387
ref: 92063E

JET-MAIN,#175

€ 11.00

92064

920641206
ref: 92064

JET-PILOT,#38

€ 14.00

92093

920931046
ref: 92093

SEAL-"U"RING

€ 4.00

92145

921451149
ref: 92145

SPRING,AIR CUT VALVE

€ 4.50

92145A

921451337
ref: 92145A

SPRING,VACUUM VALVE

€ 15.50

92145B

921451338
ref: 92145B

SPRING,NEEDLE JET

€ 2.00

92200

922001525
ref: 92200

WASHER,NEEDLE JET

€ 2.00
