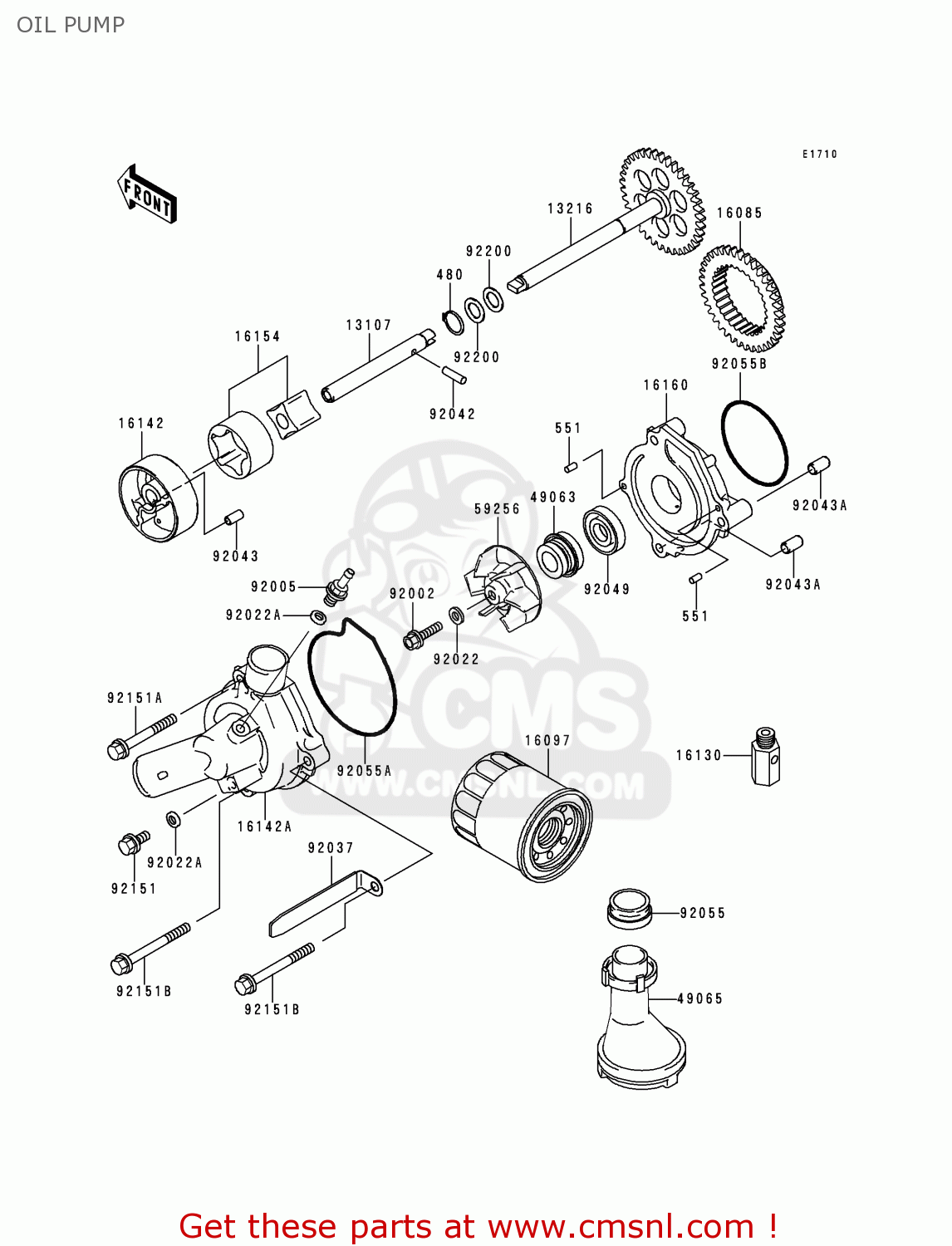

OIL PUMP

ref

part #

description

quantity

480

480J1100
ref: 480

CIRCLIP-TYPE-C,11MM

€ 0.50

551

551A0408
ref: 551

PIN-DOWEL,4X8

€ 0.50

13107

131071378
ref: 13107

SHAFT,OIL PUMP

€ 19.00

13216

132161168
ref: 13216

GEAR-COMP,OIL PUMP,37

€ 84.00

16085

160851305
ref: 16085

GEAR,OIL PUMP,37T

€ 102.50

16097

160971067
ref: 16097

FILTER-ASSY-OIL

€ 10.50

16130

161301058
ref: 16130

VALVE-ASSY-RELIEF

€ 30.00

16142

161421146
ref: 16142

COVER-PUMP,OIL

€ 33.50

16142A

161421147
ref: 16142A

COVER-PUMP,WATER

€ 97.50

16154

161541115
ref: 16154

ROTOR-PUMP

€ 51.00

16160

161601280
ref: 16160

BODY,OIL PUMP

€ 111.00

49063

490631002
ref: 49063

SEAL-MECHANICAL,WATER

€ 17.00

49065

490651078
ref: 49065

FILTER-OIL

€ 12.50

59256

592561074
ref: 59256

IMPELLER

€ 32.50

92002

920021154
ref: 92002

BOLT,6X22

€ 3.00

92005

920051337
ref: 92005

FITTING

€ 17.50

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92022A

92022304
ref: 92022A

WASHER,PLAIN

€ 2.50

92037

920371679
ref: 92037

CLAMP

€ 3.50

92042

92042014
ref: 92042

PIN-GEAR CHANGE DRUM

€ 0.50

92043

920431262
ref: 92043

PIN,DOWEL,4.2X6X12

€ 2.50

92043A

920431263
ref: 92043A

PIN,DOWEL,6.2X8X14

€ 0.50

92049

920491336
ref: 92049

SEAL-OIL,OIL PUMP

€ 20.50

92055

920551503
ref: 92055

RING-O,OIL FILTER

€ 6.50

92055A

920551571
ref: 92055A

RING-O,WATER PUMP COV

€ 9.50

92055B

920553018
ref: 92055B

RING-O,59.6X2.4

€ 4.00

92151

921511133
ref: 92151

BOLT,6X12

€ 1.50

92151A

921511234
ref: 92151A

BOLT,6X50

€ 1.50

92151B

921511235
ref: 92151B

BOLT,6X60

€ 2.00

92200

922001009
ref: 92200

WASHER

€ 3.00
