GEAR CHANGE MECHANISM

ZX900E1P NINJA ZX9R 2000 EUROPE UK FR IS NR

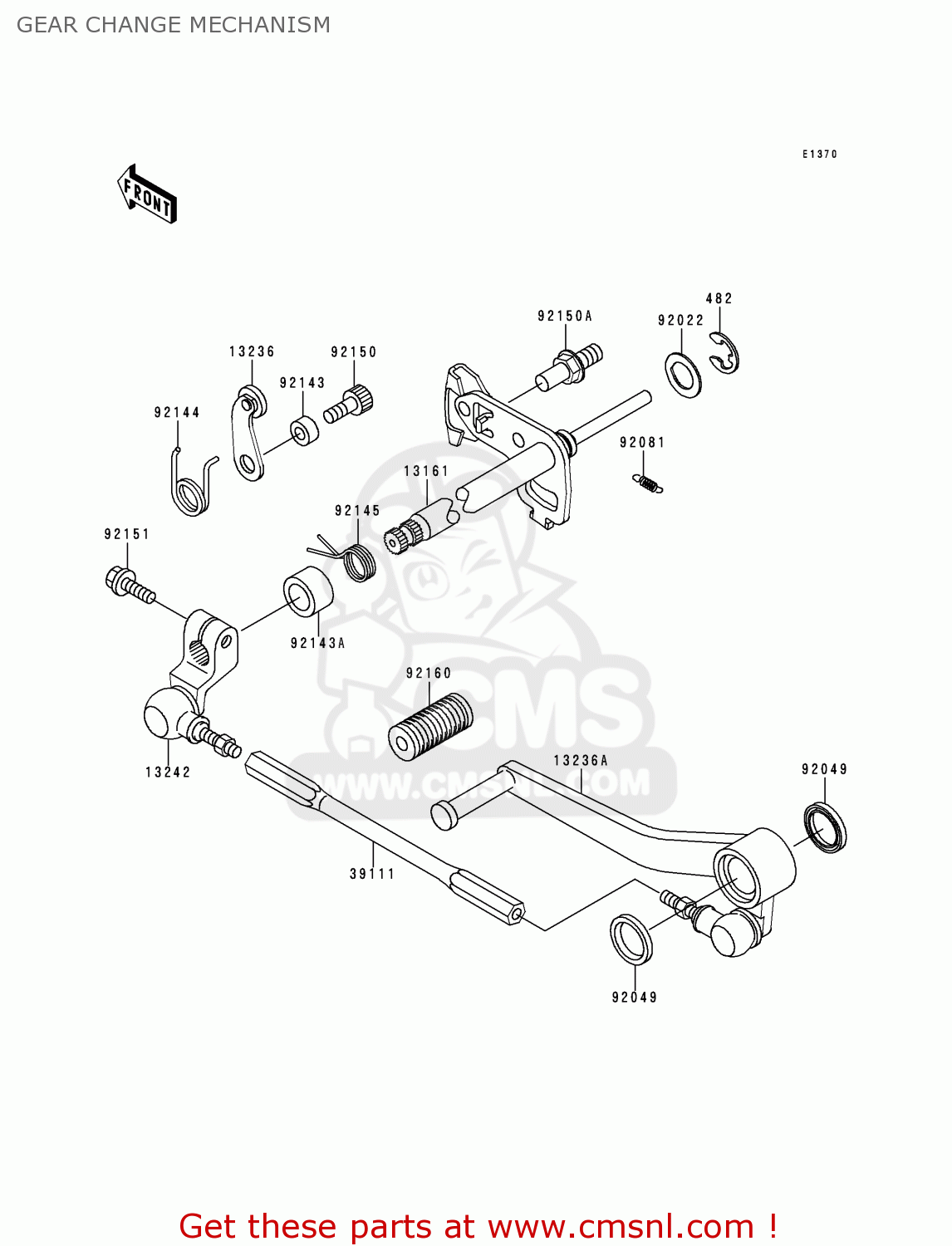

Gear change mechanism diagram ZX900E1P NINJA ZX9R 2000 EUROPE UK FR IS NR

prices are in EUR

ref

part #

description

quantity

482

482J0200
ref: 482

CIRCLIP-TYPE-E,12MM

€ 2.50

13161

131611246
ref: 13161

LEVER-COMP-CHANGE SHA

€ 59.00

13236

132361243
ref: 13236

LEVER-COMP

€ 13.00

13236A

132361317
ref: 13236A

LEVER-COMP,CHANGE PED

€ 81.00

13242

132421348
ref: 13242

LEVER-ASSY-CHANGE,BOS

€ 37.50

39111

391111157
ref: 39111

ROD-TIE

€ 33.50

92022

920221628
ref: 92022

WASHER,CHANGE SHAFT

€ 4.50

92049

920491492
ref: 92049

SEAL-OIL

€ 6.00

92081

920811708
ref: 92081

SPRING,PAWL RETURN

€ 4.00

92143

921431595
ref: 92143

COLLAR

€ 6.50

92143A

921431733
ref: 92143A

COLLAR,13.2X19.9X12

€ 3.00

92144

921441856
ref: 92144

SPRING

€ 6.50

92145

921451122
ref: 92145

SPRING

€ 6.50

92150

921501737
ref: 92150

BOLT

€ 7.00

92150A

921501869
ref: 92150A

BOLT,RETURN SPRING

€ 7.00

92151

921511226
ref: 92151

BOLT,6X20

€ 1.50

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50
