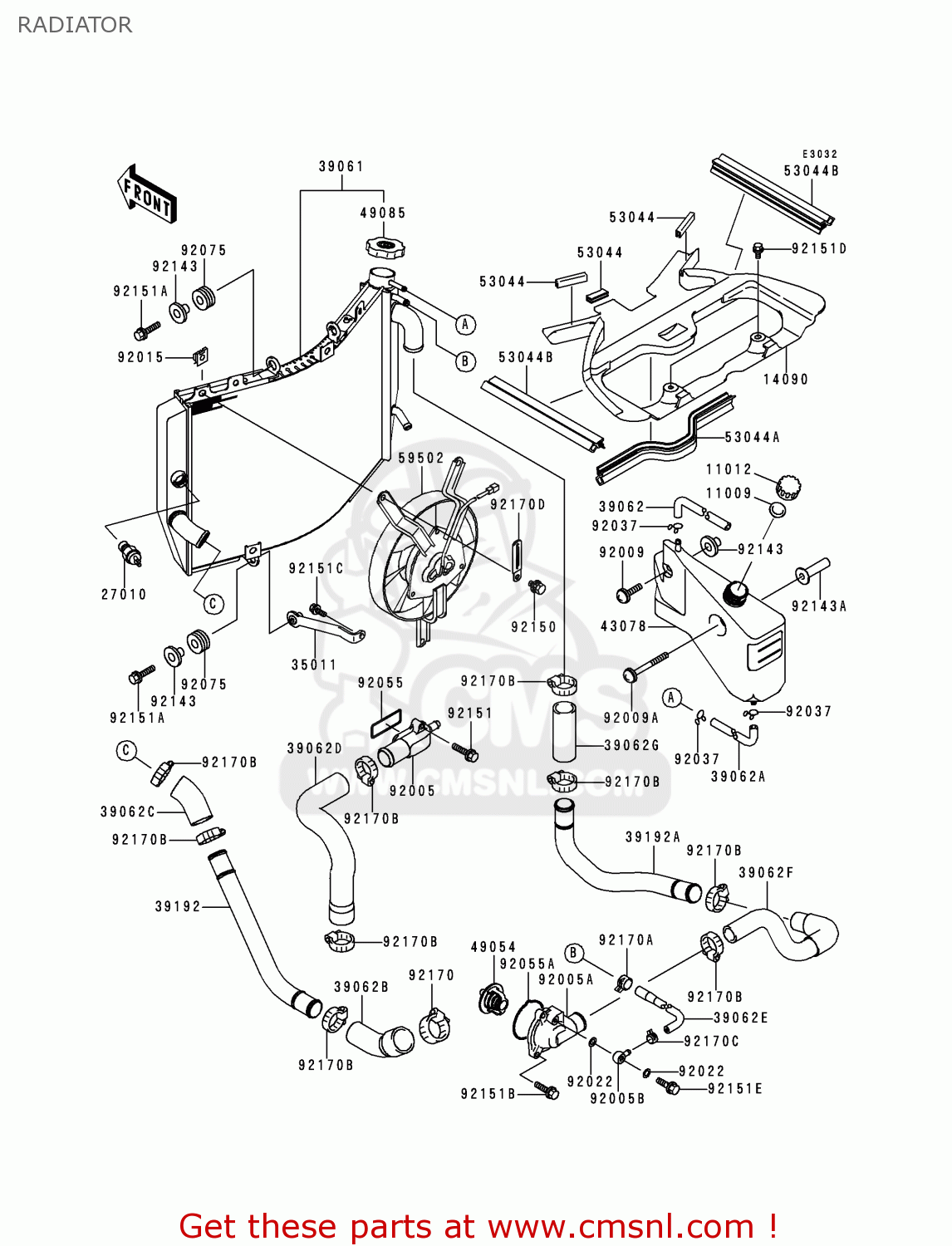

RADIATOR

ref

part #

description

quantity

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11012

110121084
ref: 11012

CAP

€ 1.50

14090

140901861
ref: 14090

COVER,SEAL

€ 85.00

27010

270101304
ref: 27010

SWITCH,THERMOSTAT

€ 63.00

35011

350111882
ref: 35011

STAY

€ 10.50

39061

390611248
ref: 39061

RADIATOR-ASSY

€ 670.50

39062

390621718
ref: 39062

HOSE-COOLING,RESERVOI

€ 7.00

39062A

390621719
ref: 39062A

HOSE-COOLING,RADIATOR

€ 11.50

39062B

390621722
ref: 39062B

HOSE-COOLING,PIPE-PUM

€ 15.50

39062C

390621723
ref: 39062C

HOSE-COOLING,RADIATOR

€ 8.50

39062D

390621724
ref: 39062D

HOSE-COOLING,PUMP-CYL

€ 22.50

39062E

390621725
ref: 39062E

HOSE-COOLING,HEAD-RAD

€ 10.00

39062F

390621726
ref: 39062F

HOSE-COOLING,THERMOST

€ 29.00

39062G

390621727
ref: 39062G

HOSE-COOLING,RADIATOR

€ 6.00

39192

391921112
ref: 39192

PIPE-WATER

€ 26.00

39192A

391921113
ref: 39192A

PIPE-WATER

€ 30.50

43078

430781160
ref: 43078

RESERVOIR

€ 56.50

49054

490541067
ref: 49054

THERMOSTAT

€ 46.00

49085

490851067
ref: 49085

CAP-ASSY-PRESSURE

€ 39.50

53044

530441174
ref: 53044

TRIM

€ 2.50

53044A

530441180
ref: 53044A

TRIM

€ 15.00

53044B

530441212
ref: 53044B

TRIM,INNER COVER,LH,U

€ 11.50

59502

595021125
ref: 59502

FAN-ASSY

€ 663.00

92005

920051268
ref: 92005

FITTING

€ 23.00

92005A

920051331
ref: 92005A

FITTING,THERMOSTAT CA

€ 32.50

92005B

920051346
ref: 92005B

FITTING

€ 10.50

92009

920091465
ref: 92009

SCREW

€ 2.50

92009A

920091754
ref: 92009A

SCREW

€ 1.50

92015

920151487
ref: 92015

NUT

€ 3.00

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92055

920551402
ref: 92055

RING-O

€ 5.00

92055A

920551572
ref: 92055A

RING-O,THERMOSTAT CAP

€ 7.50

92075

920751123
ref: 92075

DAMPER,RUBBER

€ 3.00

92143

921431353
ref: 92143

COLLAR

€ 5.50

92143A

921431428
ref: 92143A

COLLAR

€ 10.50

92150

921501186
ref: 92150

BOLT

€ 3.00

92151

921511130
ref: 92151

BOLT,6X25

€ 2.00

92151A

921511225
ref: 92151A

BOLT,6X25

€ 1.50

92151B

921511236
ref: 92151B

BOLT,6X22

€ 1.50

92151C

921511237
ref: 92151C

BOLT,6X16

€ 1.00

92151D

921511239
ref: 92151D

BOLT,6X12

€ 1.50

92151E

921511329
ref: 92151E

BOLT,BANJO,6X20

€ 6.00

92170

921701036
ref: 92170

CLAMP,COOLING HOSE

€ 16.50

92170A

921701201
ref: 92170A

CLAMP

€ 3.50

92170B

921701284
ref: 92170B

CLAMP,CABLE

€ 7.50

92170C

921701493
ref: 92170C

CLAMP

€ 3.00

92170D

921701514
ref: 92170D

CLAMP

€ 2.50

all assemblies
