GEAR CHANGE DRUM/SHIFT FORK(S)

ZX900C2 NINJA ZX9R 1999 USA CALIFORNIA CANADA

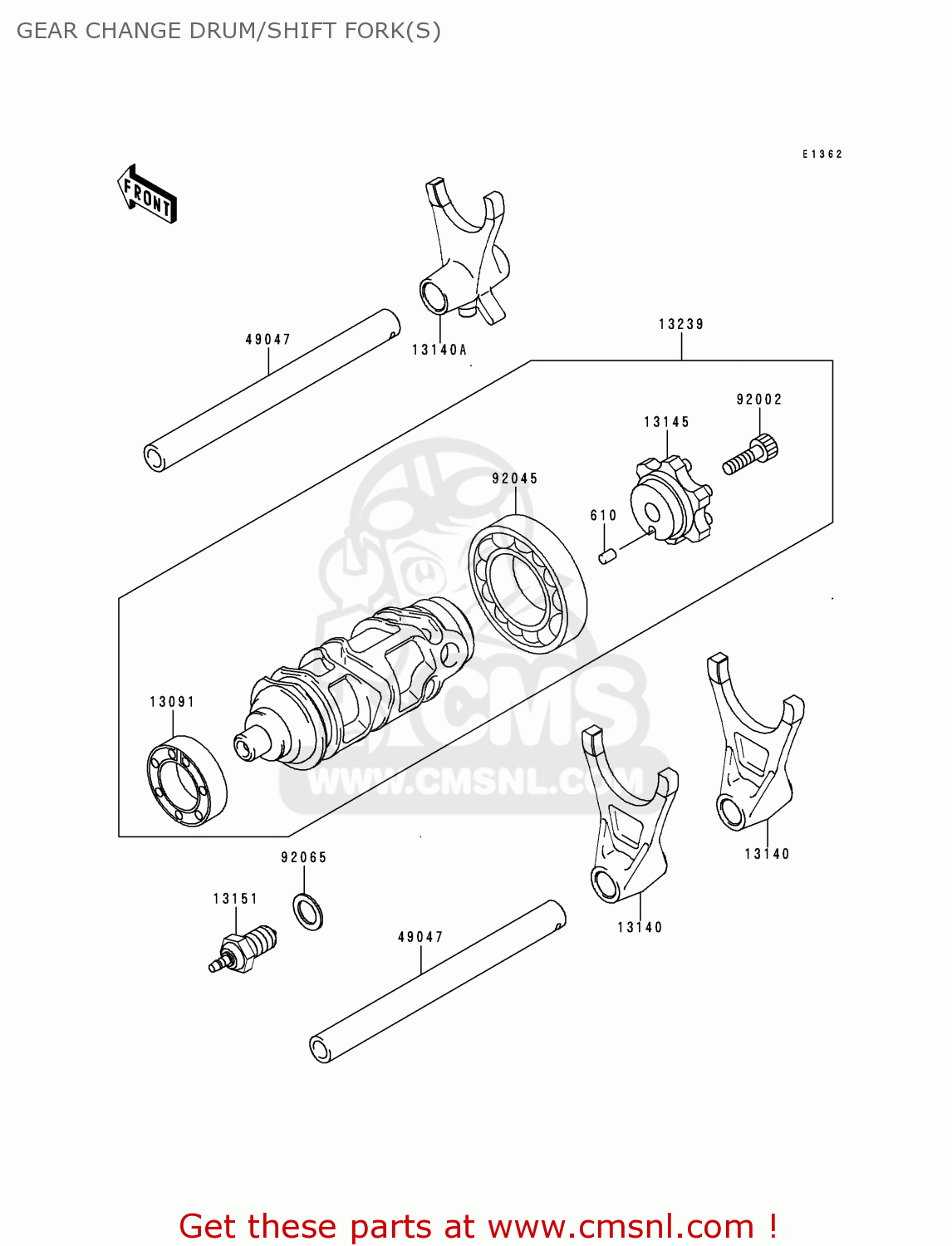

Gear change drum/shift fork(s) diagram ZX900C2 NINJA ZX9R 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

610

610A0406
ref: 610

ROLLER,4X6

€ 2.50

13091

130911791
ref: 13091

HOLDER

€ 4.00

13140

131401266
ref: 13140

FORK-SHIFT,OUTPUT

€ 81.00

13140A

131401267
ref: 13140A

FORK-SHIFT,INPUT

€ 86.50

13145

131451082
ref: 13145

CAM-CHANGE DRUM

€ 34.00

13151

131511085
ref: 13151

SWITCH-COMP

€ 16.00

13239

132391204
ref: 13239

DRUM-ASSY-CHANGE

€ 196.50

49047

490471082
ref: 49047

ROD-SHIFT

€ 17.00

92002

920021696
ref: 92002

BOLT,SOCKET,6X25

€ 1.50

92045

920451045
ref: 92045

BEARING-BALL,16005

€ 27.00

92065

92065058
ref: 92065

GASKET, 10,5X16X1 (NAS)

€ 2.50
