CARBURETOR PARTS

ZX900C2 NINJA ZX9R 1999 USA CALIFORNIA CANADA

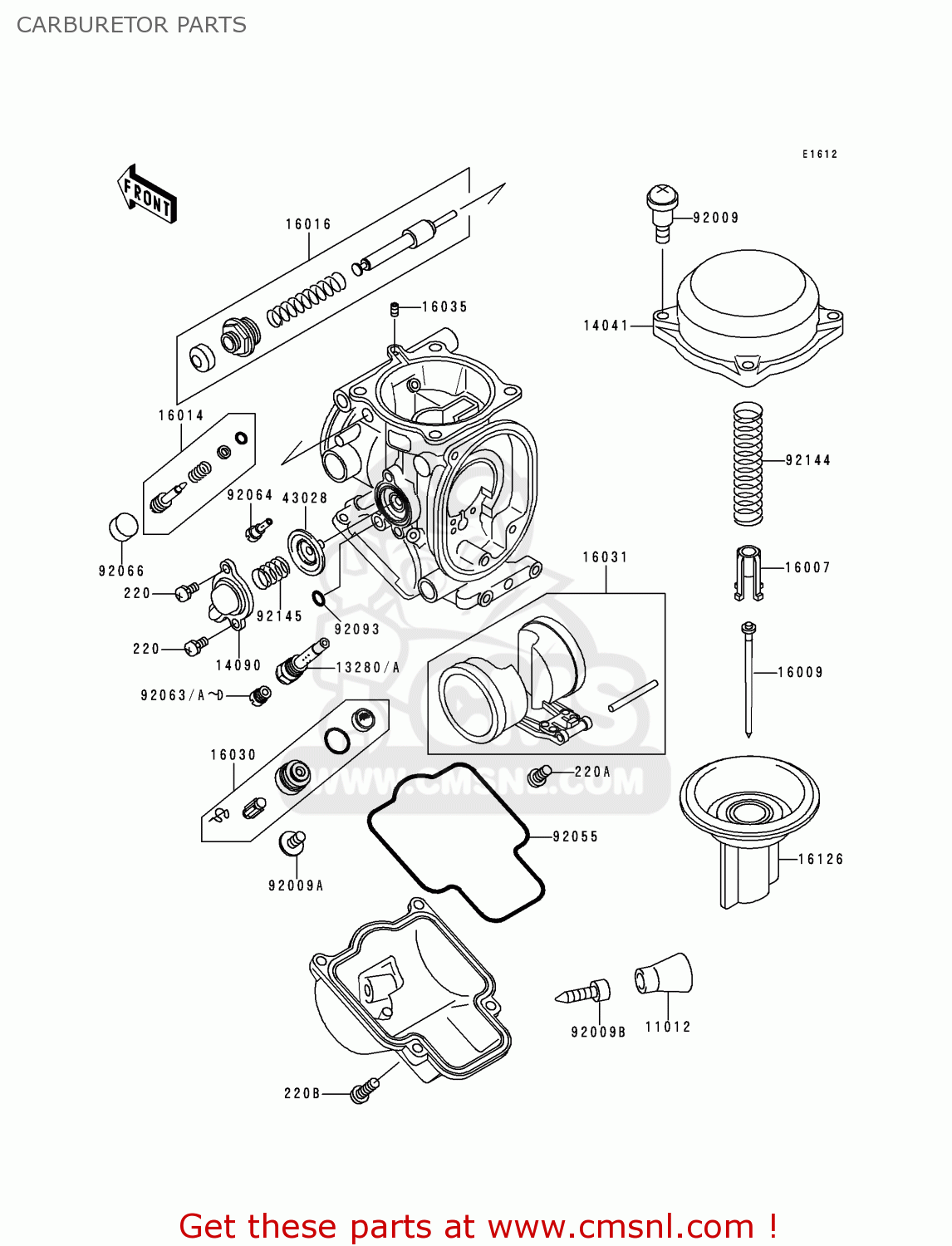

Carburetor parts diagram ZX900C2 NINJA ZX9R 1999 USA CALIFORNIA CANADA

CARBURETOR PARTS ZX900C2 NINJA ZX9R 1999 USA CALIFORNIA CANADA
CARBURETOR PARTS ZX900C2 NINJA ZX9R 1999 USA CALIFORNIA CANADA
CARBURETOR PARTS ZX900C2 NINJA ZX9R 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
220
220B0408
ref: 220
SCREW-PAN-CROS
220B0408
€ 0.50
220A
220D0408
ref: 220A
SCREW-PAN-CROS
220D0408
€ 0.50
220B
220D0414
ref: 220B
SCREW-PAN-CROS
220D0414
€ 2.00
11012
110121675
ref: 11012
CAP,DRAIN SCREW
110121675
€ 6.00
13280
132801084
ref: 13280
CNUS
HOLDER,JET NEEDLE
132801084
€ 22.50
13280A
132801085
ref: 13280A
CA
HOLDER,JET NEEDLE
132801085
€ 17.00
14041
140411100
ref: 14041
COVER-COMP,MIXING
140411100
€ 61.50
14090
140901959
ref: 14090
COVER,AIR CUT VALVE
€ 11.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091998
ref: 16009
NEEDLE-JET,N74V
160091998
€ 26.00
16014
160141090
ref: 16014
SCREW-PILOT AIR
160141090
€ 10.00
16016
160161090
ref: 16016
PLUNGER,STARTER
160161090
€ 46.50
16030
160301077
ref: 16030
VALVE-FLOAT
160301077
€ 77.50
16031
160311080
ref: 16031
FLOAT
160311080
€ 40.50
16035
160351055
ref: 16035
JET-AIR,LEAK
160351055
€ 10.00
16126
161261359
ref: 16126
VALVE,VACUUM
161261359
€ 181.50
43028
430281085
ref: 43028
DIAPHRAGM,AIR CUT VAL
430281085
€ 18.00
92009
920091549
ref: 92009
SCREW,4X4.4
920091549
€ 3.00
92009A
920091550
ref: 92009A
SCREW,4X8
920091550
€ 2.50
92009B
920091551
ref: 92009B
SCREW,DRAIN
920091551
€ 6.50
92055
920551426
ref: 92055
RING-O,FLOAT CHAMBER
920551426
€ 13.00
92063
920631330
ref: 92063
JET-MAIN,#150
920631330
€ 9.00
92063A
920631331
ref: 92063A
JET-MAIN,#152
920631331
€ 9.50
92063B
920631332
ref: 92063B
JET-MAIN,#155
920631332
€ 9.50
92063C
920631344
ref: 92063C
JET-MAIN,#158
920631344
€ 9.50
92063D
920631345
ref: 92063D
JET-MAIN,#160
920631345
€ 9.50
92064
920641119
ref: 92064
JET-PILOT,#38
920641119
€ 12.00
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92093
920931046
ref: 92093
SEAL-"U"RING
920931046
€ 4.00
92144
921441962
ref: 92144
SPRING,VACUUM VALVE
921441962
€ 17.00
92145
921451149
ref: 92145
SPRING,AIR CUT VALVE
€ 4.50
