FRONT FORK(JKAZX2C1 XA031069∼)

ZX900C2 NINJA ZX9R 1999 USA CALIFORNIA CANADA

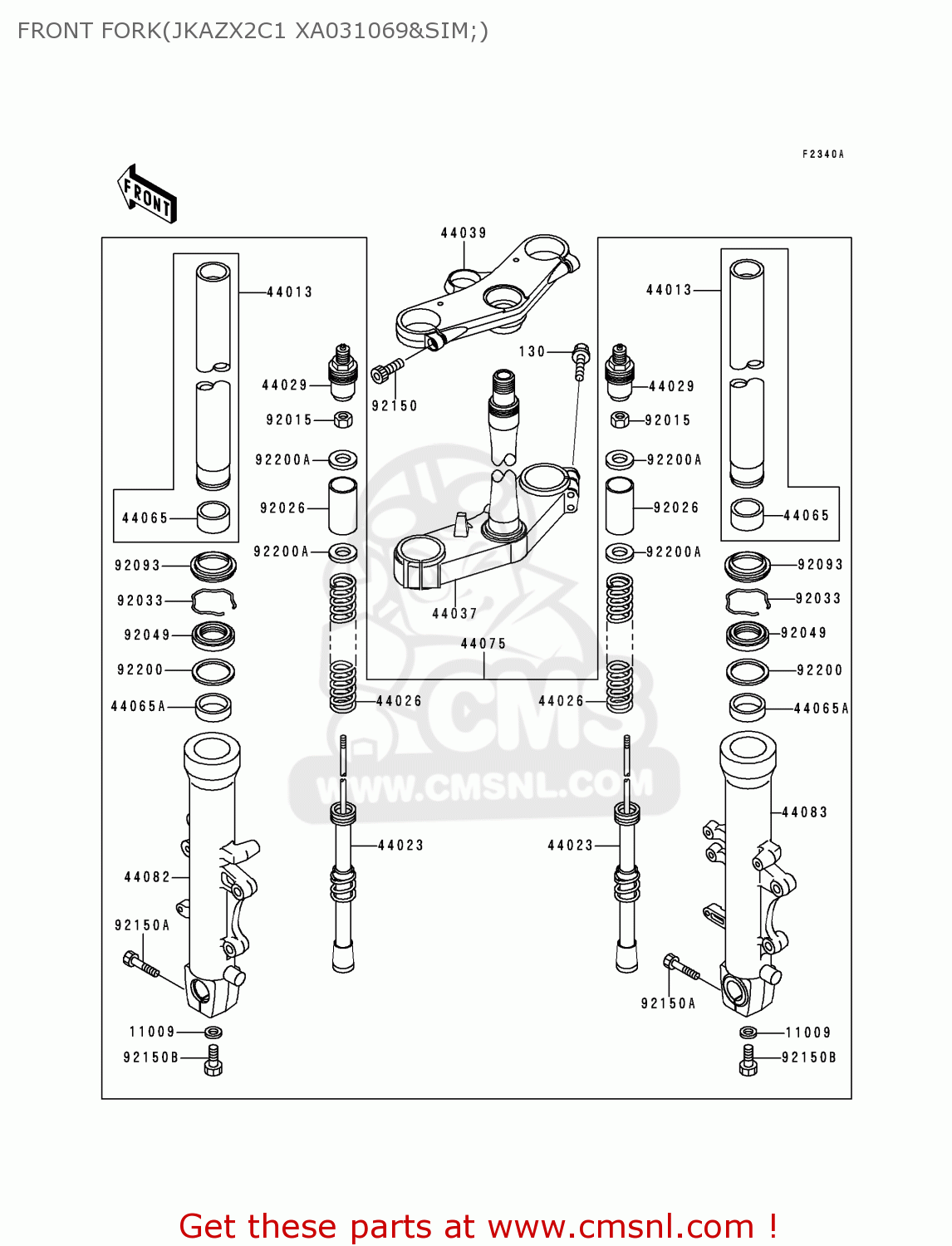

Front fork(jkazx2c1 xa031069∼) diagram ZX900C2 NINJA ZX9R 1999 USA CALIFORNIA CANADA

FRONT FORK(JKAZX2C1 XA031069∼) ZX900C2 NINJA ZX9R 1999 USA CALIFORNIA CANADA
FRONT FORK(JKAZX2C1 XA031069∼) ZX900C2 NINJA ZX9R 1999 USA CALIFORNIA CANADA
FRONT FORK(JKAZX2C1 XA031069∼) ZX900C2 NINJA ZX9R 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0840
ref: 130
BOLT-FLANGED,8X40
130J0840
€ 3.00
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
110091127
€ 3.00
44013
440131463
ref: 44013
PIPE-FORK INNER
440131463
€ 233.50
44023
440231142
ref: 44023
CYLINDER-SET-FORK
€ 309.00
44026
440261694
ref: 44026
SPRING-FRONT FORK
€ 64.00
44029
440291165
ref: 44029
SEAT-FORK SPRING
440291165
€ 88.00
44037
440371365
ref: 44037
HOLDER-FORK UNDER
440371365
€ 376.00
44039
440391277
ref: 44039
HOLDER-FORK UPPER
440391277
€ 205.00
44065
440651129
ref: 44065
BUSHING-FRONT FORK
440651129
€ 14.00
44065A
440651130
ref: 44065A
BUSHING-FRONT FORK
440651130
€ 13.50
44075
440751104
ref: 44075
DAMPER-SET-FORK
€ 1,762.00
44082
440821058
ref: 44082
PIPE-COMP-LEFT FORK O
€ 464.00
44083
440831057
ref: 44083
PIPE-COMP-RIGHT FORK
€ 533.00
92015
920151905
ref: 92015
NUT
920151905
€ 13.50
92026
920261519
ref: 92026
SPACER,FORK,L=120
920261519
€ 12.00
92033
920331264
ref: 92033
RING-SNAP
920331264
€ 4.00
92049
920491508
ref: 92049
SEAL-OIL
920491508
€ 14.50
92093
920931473
ref: 92093
SEAL,FORK OUTER TUBE
920931473
€ 14.50
92150
921501172
ref: 92150
BOLT,SOCKET,8X25
€ 1.50
92150A
921501194
ref: 92150A
BOLT,SOCKET,8X40
921501194
€ 2.00
92150B
921501398
ref: 92150B
BOLT,12X22
921501398
€ 5.50
92200
922001006
ref: 92200
WASHER
922001006
€ 8.00
92200A
922001420
ref: 92200A
WASHER
€ 5.50
