SWINGARM

ZX900A5 GPZ900R 1988 EUROPE UK AR FG NR SD ST

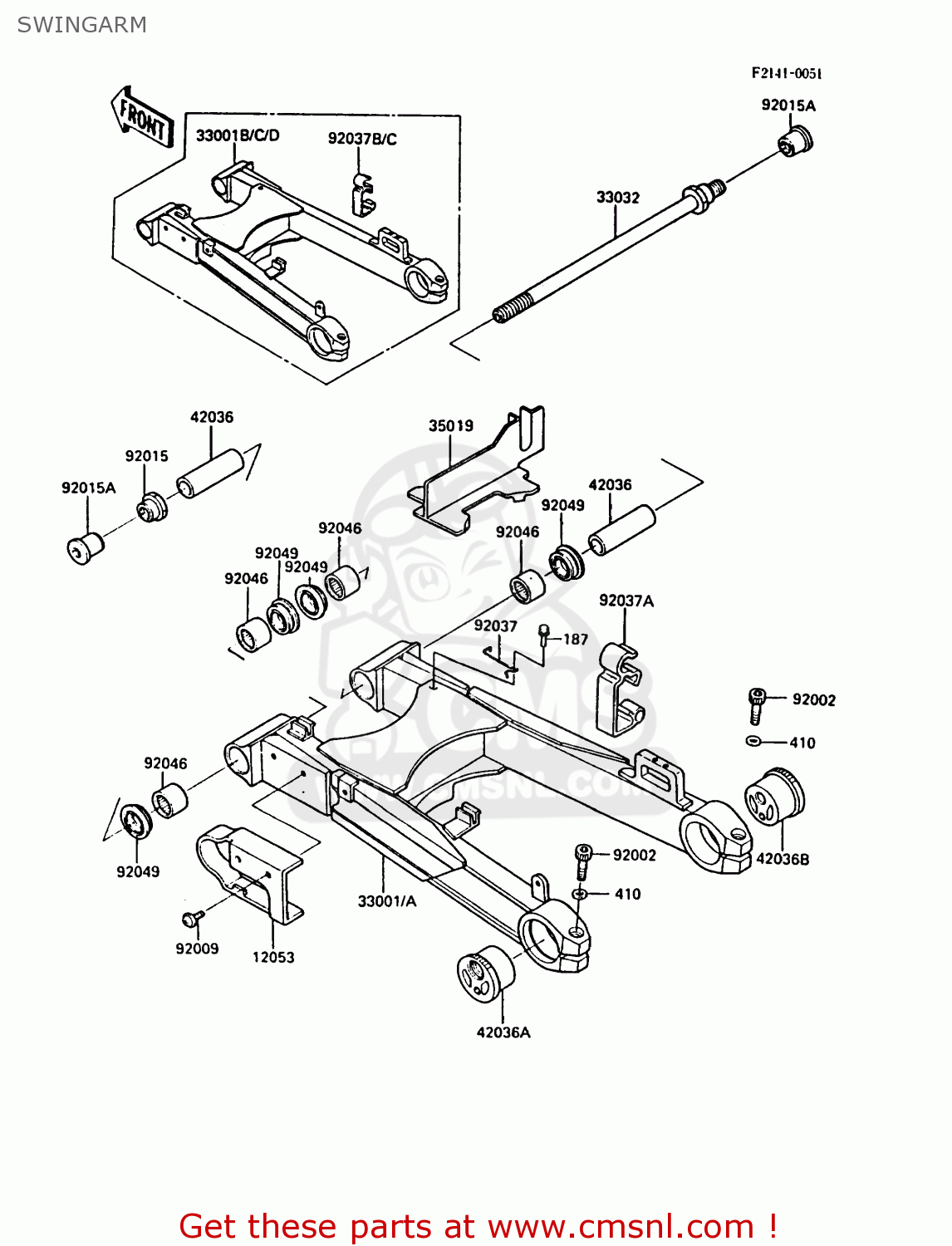

Swingarm diagram ZX900A5 GPZ900R 1988 EUROPE UK AR FG NR SD ST

prices are in EUR

ref

part #

description

quantity

187

187D0610
ref: 187

BOLT-UPSET-WSP

€ 2.50

410

410E1000
ref: 410

W-PLAIN-S

€ 0.50

12053

120531119
ref: 12053

GUIDE-CHAIN

€ 53.50

33001C

330011266X3
ref: 33001C

ARM-COMP-SWING,SILVER

€ 1,113.00

33032

330321105
ref: 33032

SHAFT-SWING ARM

€ 54.00

35019

350191124
ref: 35019

FLAP

€ 16.50

42036

420361114
ref: 42036

SLEEVE,SWING ARM

€ 20.50

42036A

420361147
ref: 42036A

SLEEVE,REAR AXLE,LH

€ 78.00

42036B

420361148
ref: 42036B

SLEEVE,REAR AXLE,RH

€ 78.00

92002

920021452
ref: 92002

BOLT

€ 4.00

92009

920091286
ref: 92009

SCREW,6X10

€ 2.50

92015

920151333
ref: 92015

NUT,SWING ARM SHAFT

€ 24.00

92015A

920151334
ref: 92015A

NUT,SWING ARM

€ 23.00

92037

920371565
ref: 92037

CLAMP

€ 4.00

92037B

920371758
ref: 92037B

CLAMP,HOSE

€ 6.50

92046

920461035
ref: 92046

920461035

92049

920491166
ref: 92049

SEAL-OIL

€ 7.50
