IGNITION SYSTEM

ZX900A5 GPZ900R 1988 EUROPE UK AR FG NR SD ST

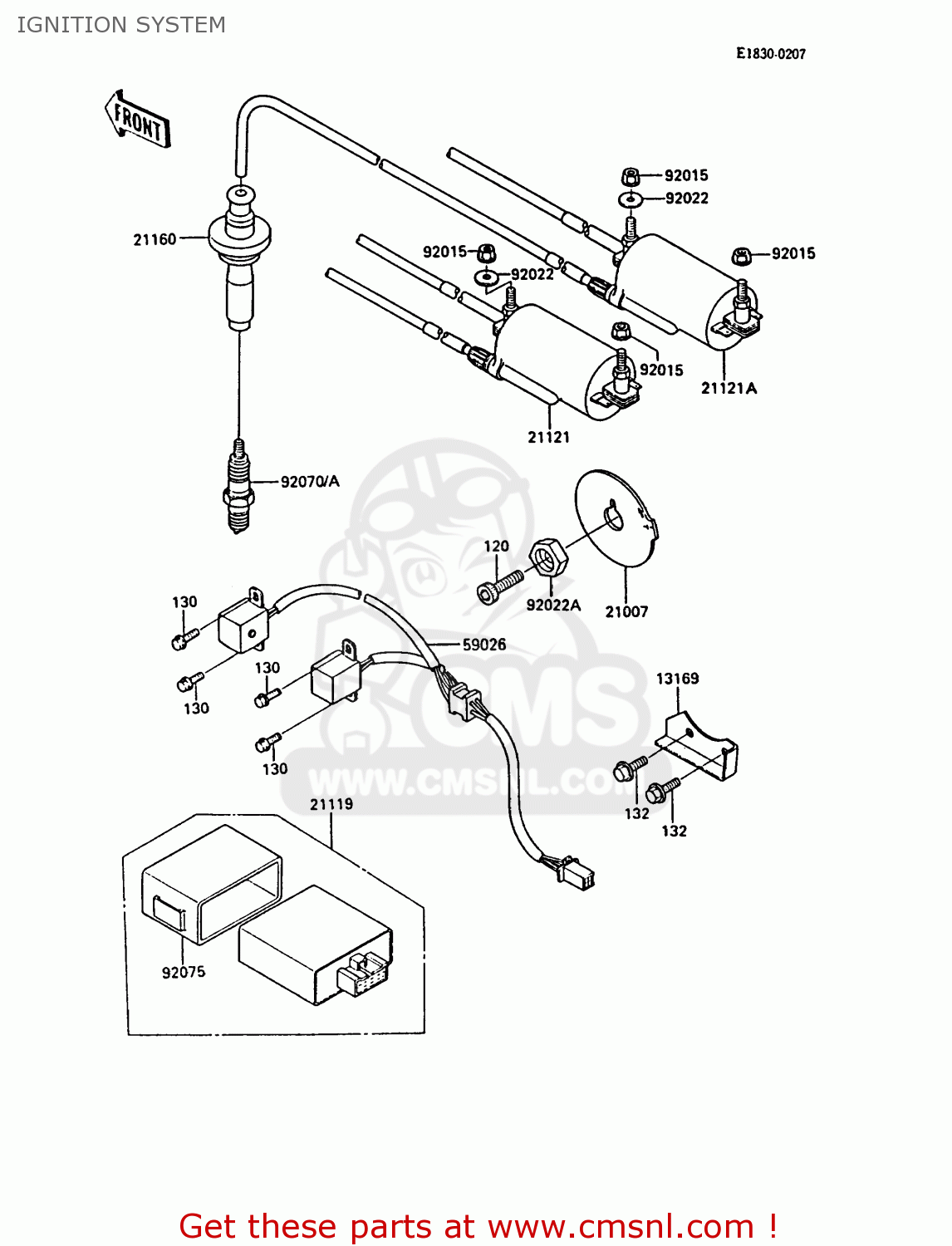

Ignition system diagram ZX900A5 GPZ900R 1988 EUROPE UK AR FG NR SD ST

prices are in EUR

ref

part #

description

quantity

120

120P0825
ref: 120

BOLT,SOCKET,8X25

€ 1.50

130

130G0512
ref: 130

BOLT-FLANGED

€ 1.00

132

132G0612
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

13169

131691748
ref: 13169

PLATE,CHAIN GUIDE

€ 10.50

21007

210071109
ref: 21007

ROTOR,PULSING COIL

€ 36.00

21119

211191110
ref: 21119

IGNITER

€ 611.50

21121

211211110
ref: 21121

COIL-IGNITION,#1&#4

€ 179.00

21121A

211211111
ref: 21121A

COIL-IGNITION,#2&#3

€ 179.00

21160

211601065
ref: 21160

CAP-ASSY-PLUG

€ 33.50

59026

590261061
ref: 59026

COIL-PULSING

€ 192.50

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

92022024
ref: 92022

WASHER,7X16X1.2

€ 2.50

92022A

920221497
ref: 92022A

WASHER,ROTOR,HEX-HEAD

€ 6.50

92070

920701019
ref: 92070

DR8ES (NGK SPARKPLUG)

€ 4.00

92070A

ref: 92070A

92075

920751592
ref: 92075

DAMPER,IGNITER

€ 26.50
