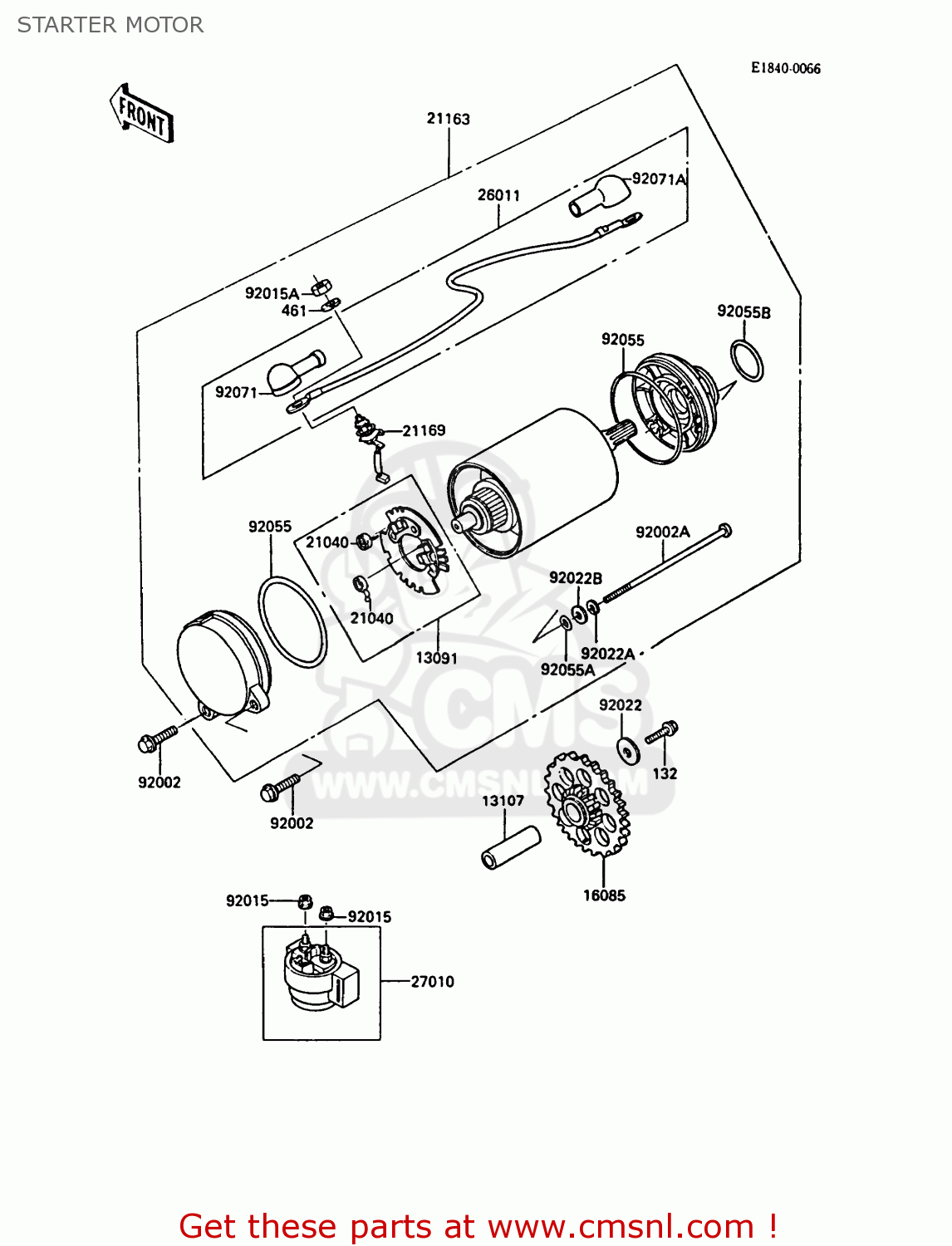

STARTER MOTOR

ref

part #

description

quantity

132

132G0612
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

13091

130911325
ref: 13091

HOLDER,CARBON BRUSH

€ 55.00

13107

131071106
ref: 13107

SHAFT,IDLE GEAR

€ 11.50

16085

160851119
ref: 16085

GEAR,IDLE

€ 75.50

21040

210401051
ref: 21040

SPRING-BRUSH

€ 1.50

21163

211631060
ref: 21163

STARTER-ELECTRIC

€ 477.00

21169

211691051
ref: 21169

TERMINAL,STARTER

€ 49.50

26011

260111286
ref: 26011

WIRE-LEAD,STARTER MOT

€ 36.50

27010

270101075
ref: 27010

SWITCH STARTER

€ 51.50

92002

920011947
ref: 92002

BOLT,6X20

€ 3.00

92002A

920021377
ref: 92002A

BOLT

€ 9.50

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92015A

920151457
ref: 92015A

NUT,6MM

€ 2.00

92022

920221517
ref: 92022

WASHER,6X19.5X2

€ 1.50

92022A

920221622
ref: 92022A

WASHER,SPRING,5.1MM

€ 1.50

92022B

920221623
ref: 92022B

WASHER,5.1X11X1.4

€ 2.00

92055

920551260
ref: 92055

RING-O,62MM

€ 7.50

92055A

920551261
ref: 92055A

RING-O,4.5MM

€ 2.00

92055B

920551262
ref: 92055B

RING-O,24.4X3.1

€ 8.50

92071

920711120
ref: 92071

GROMMET,STARTER TERMI

€ 8.50

92071A

920711121
ref: 92071A

GROMMET,TERMINAL

€ 8.00
