FRAME FITTINGS

ZX900A5 GPZ900R 1988 EUROPE UK AR FG NR SD ST

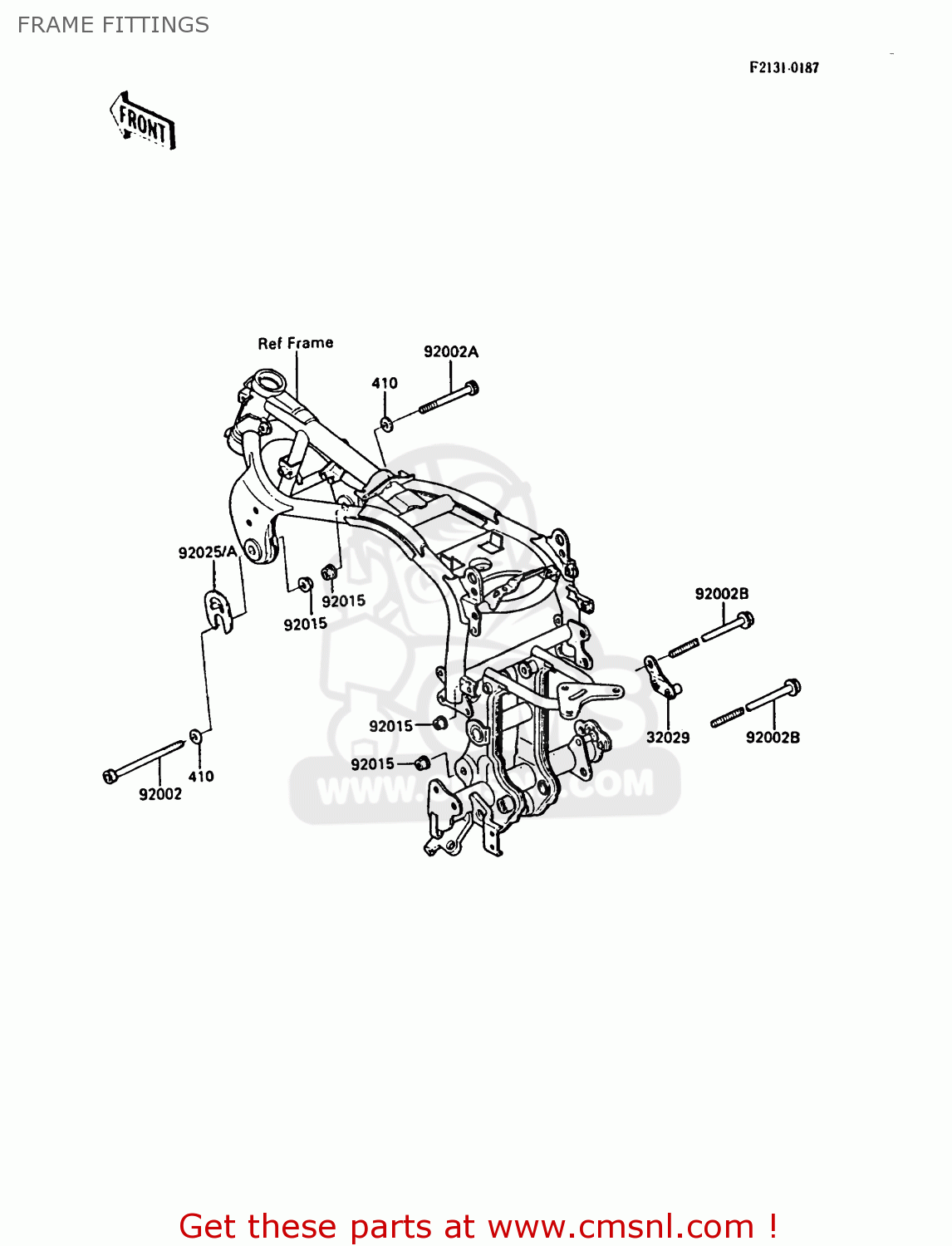

Frame fittings diagram ZX900A5 GPZ900R 1988 EUROPE UK AR FG NR SD ST

prices are in EUR

ref

part #

description

quantity

410

410B1000
ref: 410

WASHER-PLAIN-SMALL,10

€ 0.50

32029

320291322
ref: 32029

BRACKET-ENGINE,RR

€ 22.50

92002

920011888
ref: 92002

BOLT,SOCKET,10X100

€ 8.00

92002A

920011889
ref: 92002A

BOLT,SOCKET,10X72

€ 7.00

92002B

920021321
ref: 92002B

BOLT

€ 9.50

92015

920151429
ref: 92015

NUT,10MM

€ 4.50

92025

920251616
ref: 92025

SHIM,ENGINE MOUNT,T=1

€ 6.50

92025A

920251617
ref: 92025A

SHIM,ENGINE MOUNT,T=2

€ 6.00
