STARTER MOTOR

ZX750L3 NINJA ZX7 1995 USA CALIFORNIA CANADA

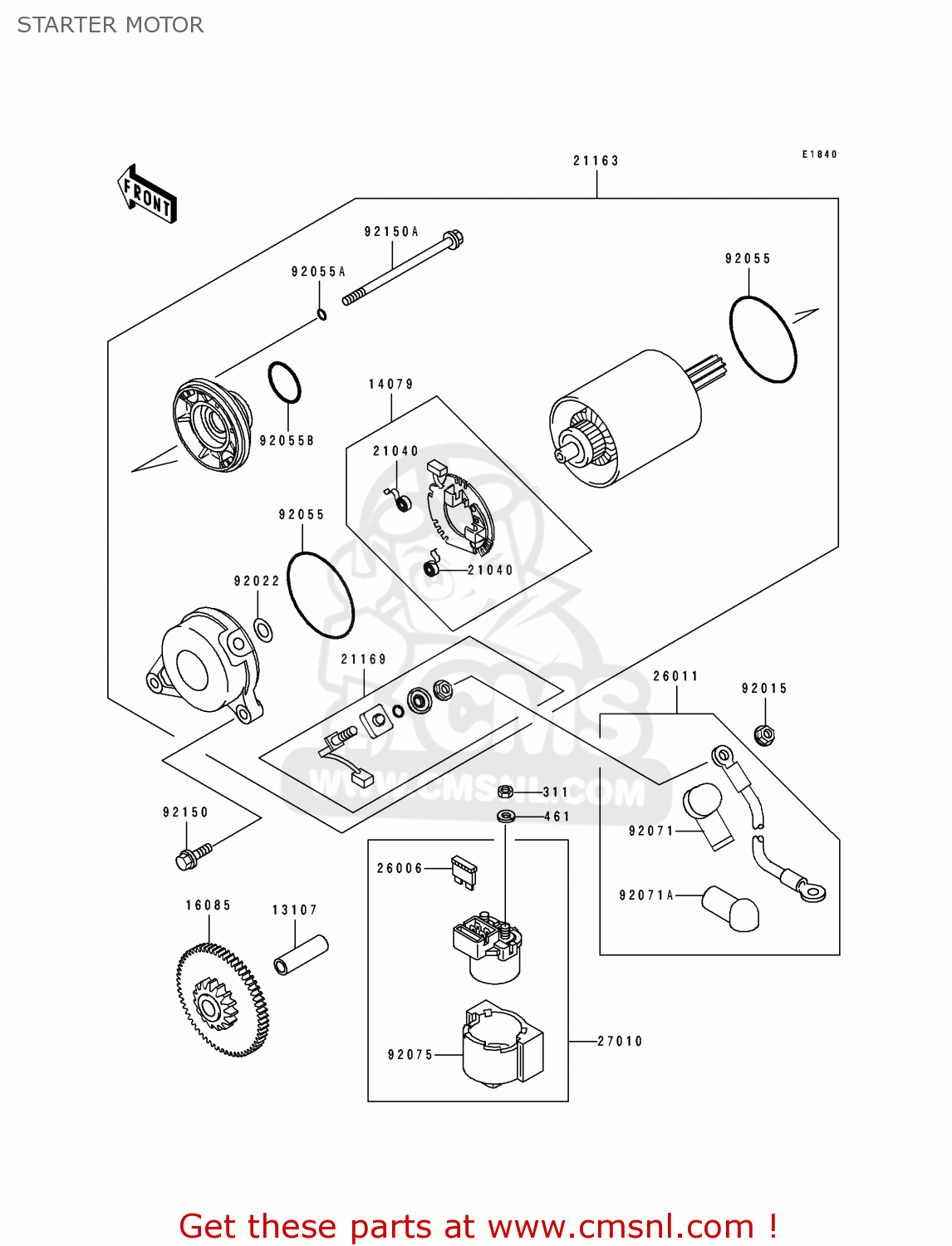

Starter motor diagram ZX750L3 NINJA ZX7 1995 USA CALIFORNIA CANADA

STARTER MOTOR ZX750L3 NINJA ZX7 1995 USA CALIFORNIA CANADA

STARTER MOTOR ZX750L3 NINJA ZX7 1995 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

13107

131071112
ref: 13107

SHAFT

€ 17.50

14079

140791082
ref: 14079

HOLDER-ASSY,CARBON BR

€ 31.50

16085

160851104
ref: 16085

GEAR,IDLE

€ 90.50

21040

210401051
ref: 21040

SPRING-BRUSH

€ 1.50

21163

211631193
ref: 21163

STARTER-ELECTRIC

€ 597.50

21169

211691058
ref: 21169

TERMINAL,STARTER

€ 44.00

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26011

260111524
ref: 26011

WIRE-LEAD

€ 33.50

27010

270101213
ref: 27010

SWITCH,MAGNETIC

€ 111.00

92015

920151623
ref: 92015

NUT

€ 3.00

92022

920222200
ref: 92022

WASHER

€ 1.00

92055

920551260
ref: 92055

RING-O,62MM

€ 7.50

92055A

920551261
ref: 92055A

RING-O,4.5MM

€ 2.00

92055B

920551262
ref: 92055B

RING-O,24.4X3.1

€ 8.50

92071

920711120
ref: 92071

GROMMET,STARTER TERMI

€ 8.50

92071A

920711121
ref: 92071A

GROMMET,TERMINAL

€ 8.00

92075

920751863
ref: 92075

DAMPER,MAGNETIC SWITC

€ 14.00

92150

921501010
ref: 92150

BOLT,6X20

€ 2.00

92150A

921501237
ref: 92150A

BOLT

€ 7.00
