FUEL PUMP

ZX750L3 NINJA ZX7 1995 USA CALIFORNIA CANADA

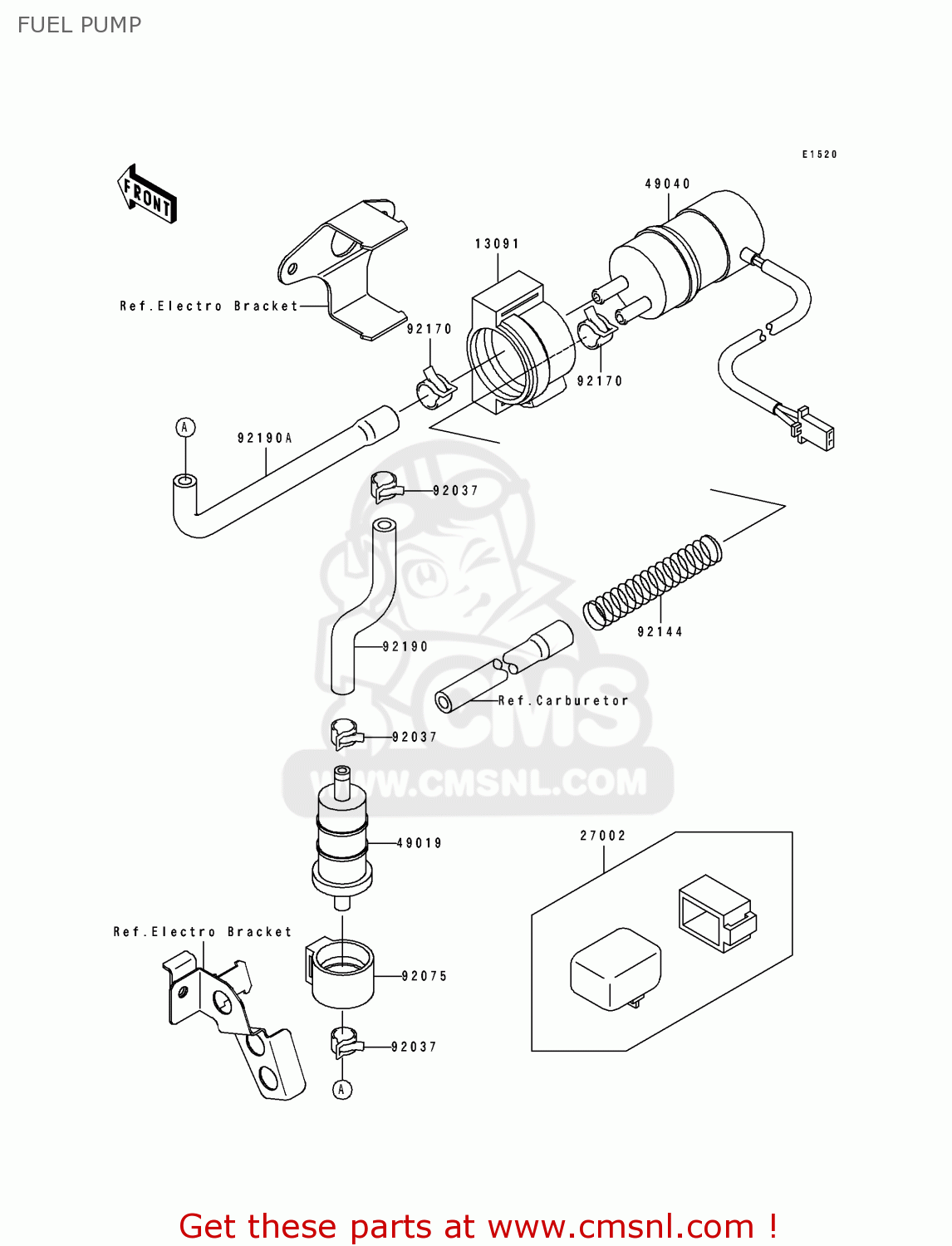

Fuel pump diagram ZX750L3 NINJA ZX7 1995 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

13091

130911738
ref: 13091

HOLDER,FUEL PUMP

€ 13.50

27002

270021065
ref: 27002

RELAY-ASSY

€ 31.50

49019

490191055
ref: 49019

FILTER-FUEL

€ 14.50

49040

490401061
ref: 49040

PUMP-FUEL

€ 320.50

92037

920371181
ref: 92037

CLAMP

€ 1.00

92075

920751853
ref: 92075

DAMPER

€ 8.50

92144

921441746
ref: 92144

SPRING,HOSE PROTECTOR

€ 9.00

92170

921701118
ref: 92170

CLAMP

€ 5.00

92190

921901383
ref: 92190

TUBE,FILTER

€ 7.00

92190A

921901402
ref: 92190A

TUBE,PUMP,L=145

€ 4.00
