Genuine ZX Kawasaki Parts delivered quickly!


ENGINE COVER(S)

ZX750L3 NINJA ZX7 1995 USA CALIFORNIA CANADA

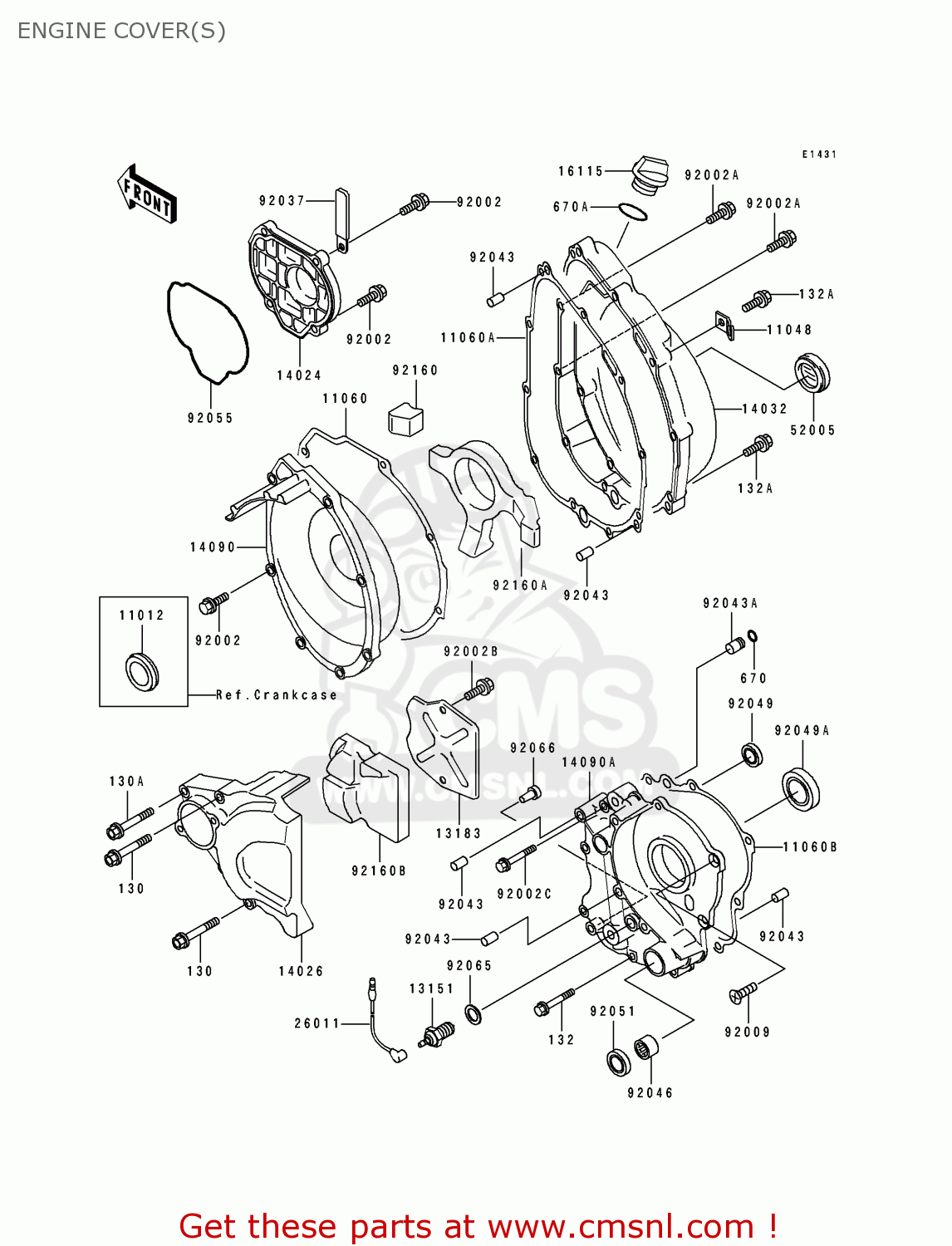

Engine cover(s) diagram ZX750L3 NINJA ZX7 1995 USA CALIFORNIA CANADA

ENGINE COVER(S) ZX750L3 NINJA ZX7 1995 USA CALIFORNIA CANADA
ENGINE COVER(S) ZX750L3 NINJA ZX7 1995 USA CALIFORNIA CANADA
ENGINE COVER(S) ZX750L3 NINJA ZX7 1995 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0635
ref: 130
BOLT-FLANGED,6X35
130J0635
€ 3.00
130A
130J0645
ref: 130A
BOLT-FLANGED,6X45,BLA
130J0645
€ 3.00
132
132E0630
ref: 132
BOLT-FLANGED-SMALL
132E0630
€ 3.00
132A
132J0630
ref: 132A
BOLT-FLANGED-SMALL
132J0630
€ 2.50
670
670B1505
ref: 670
O RING,5MM
670B1505
€ 1.00
670A
670B2020
ref: 670A
O RING,20MM
670B2020
€ 1.00
11012
110121770
ref: 11012
CAP,LH
110121770
€ 9.00
11048
110481798
ref: 11048
BRACKET,THROTTLE ADJU
110481798
€ 2.50
11060
110601356
ref: 11060
GASKET,BREATHER COVER (NAS)
110601356
€ 14.50
11060A
110601623
ref: 11060A
GASKET,CLUTCH COVER (NAS)
110601623
€ 18.50
11060B
110601660
ref: 11060B
GASKET,TRANSMISSION C (NAS)
110601660
€ 14.50
13151
131511007
ref: 13151
SWITCH,NEUTRAL
131511007
€ 9.00
13183
131831717
ref: 13183
PLATE,CHAIN COVER
131831717
€ 6.50
14024
140241998
ref: 14024
COVER,PULSING
140241998
€ 20.50
14026
140261207
ref: 14026
COVER-CHAIN
140261207
€ 151.50
14032
140321367
ref: 14032
COVER-CLUTCH
140321367
€ 149.50
14090
140901052
ref: 14090
COVER,BREATHER
140901052
€ 72.00
14090A
140901498
ref: 14090A
COVER,TRANSMISSION
€ 177.50
16115
161151053
ref: 16115
CAP-OIL FILLER
161151053
€ 12.50
26011
260111510
ref: 26011
WIRE-LEAD
€ 4.50
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
520051057
€ 17.50
92002
920021343
ref: 92002
BOLT,6X20
920021343
€ 4.00
92002A
920021344
ref: 92002A
BOLT,6X25
920021344
€ 1.50
92002B
920021449
ref: 92002B
BOLT,6X10
920021449
€ 2.50
92002C
920021622
ref: 92002C
BOLT,6X30
920021622
€ 3.50
92009
920091360
ref: 92009
SCREW,6X16
920091360
€ 2.50
92037
920371877
ref: 92037
CLAMP
920371877
€ 3.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92043A
920431456
ref: 92043A
PIN
920431456
€ 6.00
92046
920461148
ref: 92046
BEARING-NEEDLE,HK1312
920461148
€ 19.50
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
920491017
€ 6.50
92049A
920491361
ref: 92049A
SEAL-OIL
920491361
€ 7.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
92051005A
€ 5.50
92055
920551494
ref: 92055
RING-O,PULSING COVER
920551494
€ 10.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
92066
920661412
ref: 92066
PLUG
€ 2.50
92160
921601282
ref: 92160
DAMPER,SOUND ARRESTER
€ 10.00
92160A
921601465
ref: 92160A
DAMPER,SOUND ARRESTER
921601465
€ 36.50
92160B
921601484
ref: 92160B
DAMPER,CHAIN COVER
921601484
€ 17.50
