CRANKCASE BOLT PATTERN

ZX750L3 NINJA ZX7 1995 USA CALIFORNIA CANADA

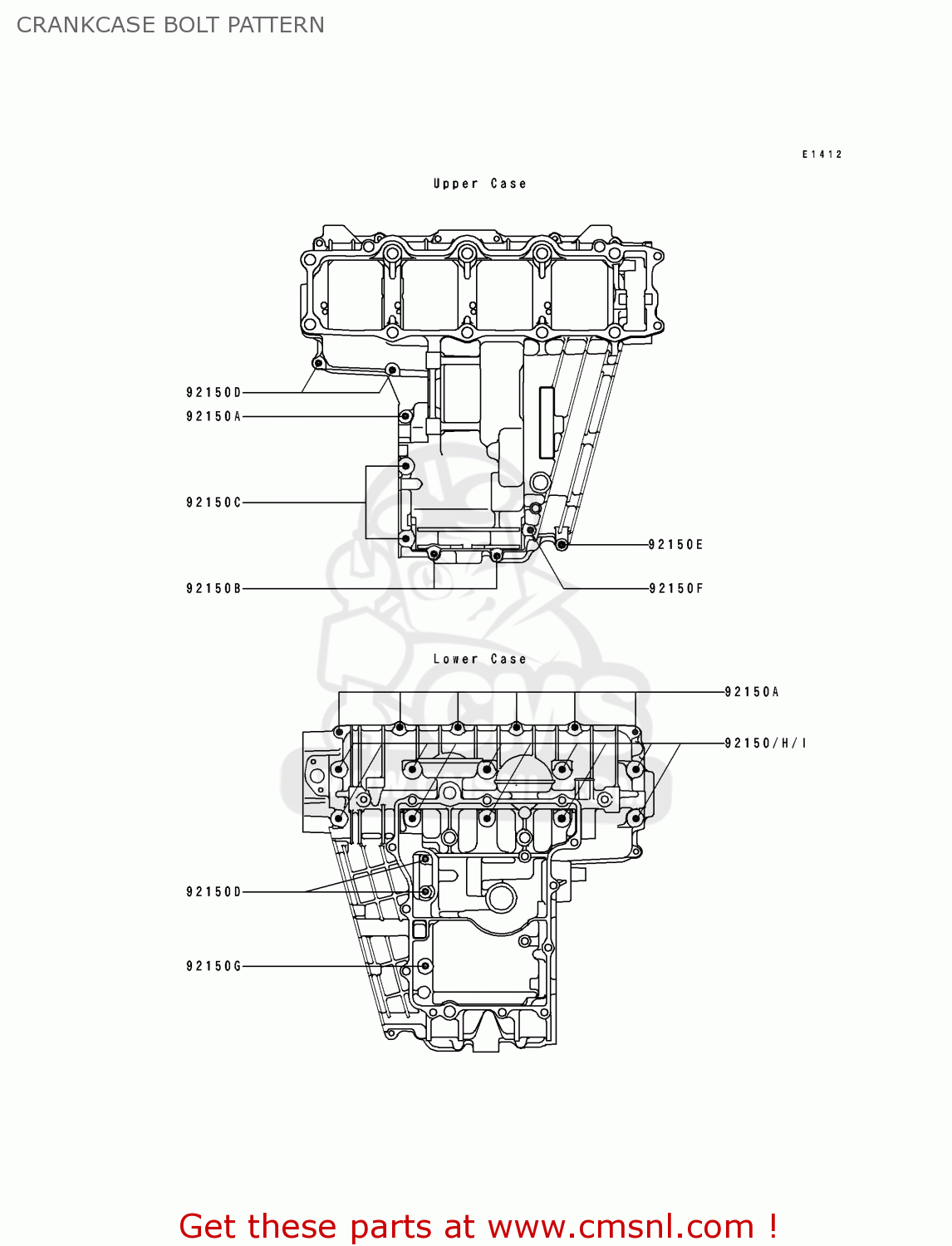

Crankcase bolt pattern diagram ZX750L3 NINJA ZX7 1995 USA CALIFORNIA CANADA

CRANKCASE BOLT PATTERN ZX750L3 NINJA ZX7 1995 USA CALIFORNIA CANADA

CRANKCASE BOLT PATTERN ZX750L3 NINJA ZX7 1995 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

92150A

921501301
ref: 92150A

BOLT,6X38

€ 2.50

92150B

921501464
ref: 92150B

BOLT,6X105

€ 4.00

92150C

921501483
ref: 92150C

BOLT,8X70

€ 5.00

92150D

921501547
ref: 92150D

BOLT,6X35

€ 3.50

92150E

921501548
ref: 92150E

BOLT,6X60

€ 3.00

92150F

921501549
ref: 92150F

BOLT,6X70

€ 3.50

92150G

921501550
ref: 92150G

BOLT,8X115

€ 4.50

92150H

921501759
ref: 92150H

BOLT,9X95

€ 5.50
