TRANSMISSION

ZX750K1 NINJA ZX7R 1991 USA CALIFORNIA CANADA

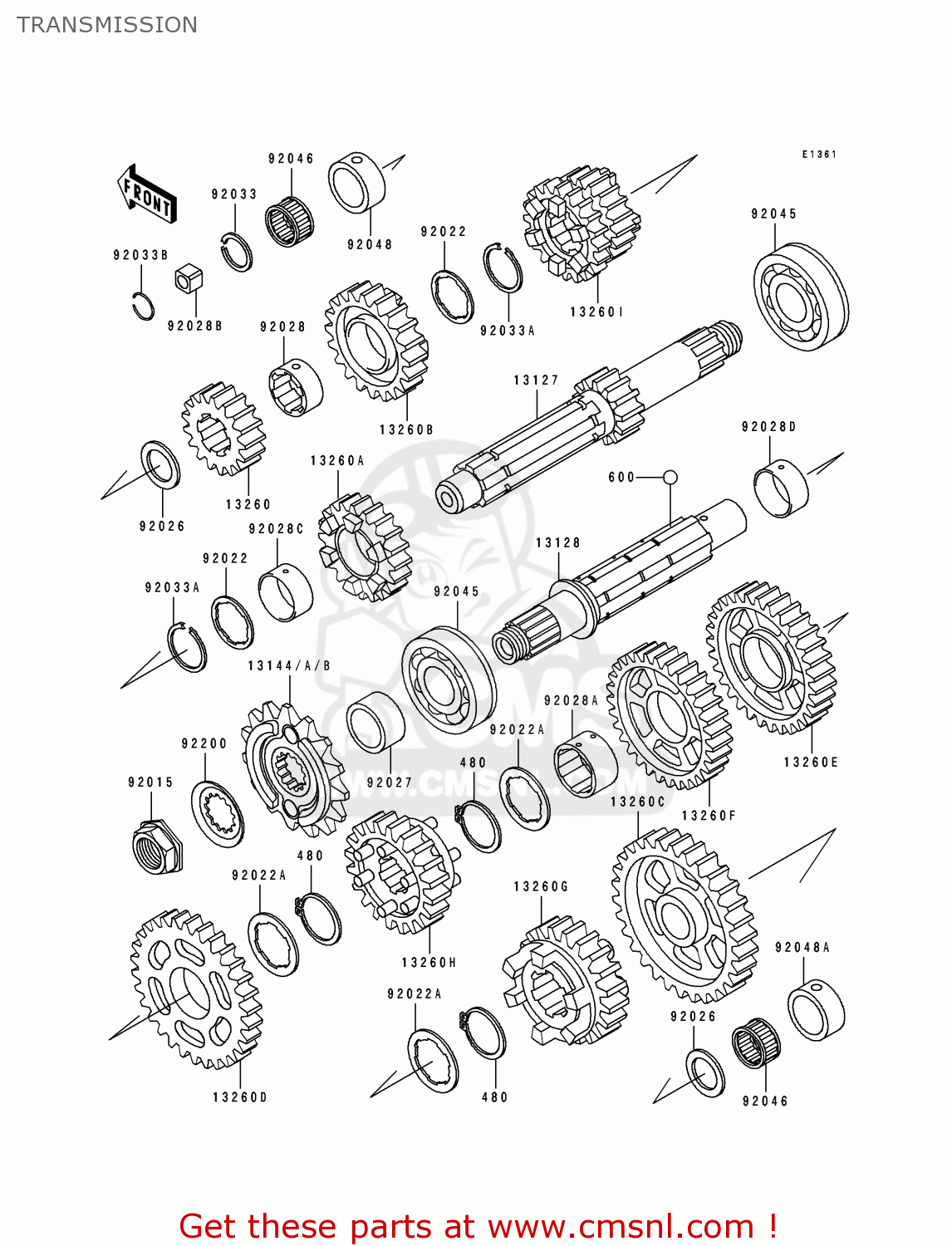

Transmission diagram ZX750K1 NINJA ZX7R 1991 USA CALIFORNIA CANADA

TRANSMISSION ZX750K1 NINJA ZX7R 1991 USA CALIFORNIA CANADA
TRANSMISSION ZX750K1 NINJA ZX7R 1991 USA CALIFORNIA CANADA
TRANSMISSION ZX750K1 NINJA ZX7R 1991 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
480
480J2900
ref: 480
CIRCLIP
480J2900
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
13127
131271207
ref: 13127
SHAFT-TRANSMISSION IN
€ 220.50
13128
131281181
ref: 13128
SHAFT-TRANSMISSION OU
€ 152.50
13144
131441009
ref: 13144
SPROCKET-OUTPUT,17T(#
131441009
€ 29.00
13144A
131441117
ref: 13144A
SPROCKET-OUTPUT,15T(#
131441117
€ 24.50
13144B
131441129
ref: 13144B
SPROCKET-OUTPUT,16T
131441129
€ 35.50
13260
132601183
ref: 13260
GEAR,INPUT 2ND,19T
€ 89.50
13260A
132601185
ref: 13260A
GEAR,INPUT 5TH,25T
132601185
€ 118.00
13260B
132601186
ref: 13260B
GEAR,INPUT TOP,25T
132601186
€ 155.00
13260C
132601187
ref: 13260C
GEAR,OUTPUT LOW,38T
132601187
€ 148.00
13260D
132601188
ref: 13260D
GEAR,OUTPUT 2ND,36T
132601188
€ 141.00
13260E
132601189
ref: 13260E
GEAR,OUTPUT 3RD,34T
132601189
€ 155.00
13260F
132601190
ref: 13260F
GEAR,OUTPUT 4TH,31T
132601190
€ 148.00
13260G
132601191
ref: 13260G
GEAR,OUTPUT 5TH,31T
132601191
€ 148.00
13260H
132601192
ref: 13260H
GEAR,OUTPUT TOP,30T
132601192
€ 148.00
13260I
132601248
ref: 13260I
GEAR,INPUT 3RD&4TH,21
€ 158.50
92015
920151254
ref: 92015
NUT,20MM
920151254
€ 10.50
92022
920221077
ref: 92022
WASHER,LOCK (O.D=35O)
920221077
€ 7.50
92022A
92024043
ref: 92022A
WASHER,TOOTHED,30.3X4
92024043
€ 8.00
92026
920261224
ref: 92026
SPACER,22X35.5X2.1
920261224
€ 6.00
92027
920271302
ref: 92027
COLLAR,ENGINE SPROCKE
920271302
€ 9.00
92028
920281255
ref: 92028
BUSHING,INPUT TOP GEA
920281255
€ 27.00
92028A
920281363
ref: 92028A
BUSHING,OUTPUT 3RD&4T
920281363
€ 30.50
92028B
920281448
ref: 92028B
BUSHING
920281448
€ 5.50
92028C
920281449
ref: 92028C
BUSHING,INPUT 5TH GEA
920281449
€ 17.50
92028D
920281450
ref: 92028D
BUSHING,OUTPUT 2ND
920281450
€ 16.00
92033
92033025
ref: 92033
CIRCLIP,25MM
92033025
€ 3.00
92033A
920331037
ref: 92033A
SNAP RING,25.9X1.2T
920331037
€ 3.00
92033B
92036005
ref: 92033B
CIRCLIP-PISTON PIN
92036005
€ 2.50
92045
920451224
ref: 92045
BEARING-BALL,6305N2SH
920451224
€ 40.00
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
92046031
€ 19.50
92048
920481066
ref: 92048
RACE,NEEDLE BEARING
920481066
€ 25.50
92048A
920481067
ref: 92048A
RACE,0RZ30X38X17PX1
920481067
€ 39.00
92200
922001065
ref: 92200
WASHER
922001065
€ 4.50
