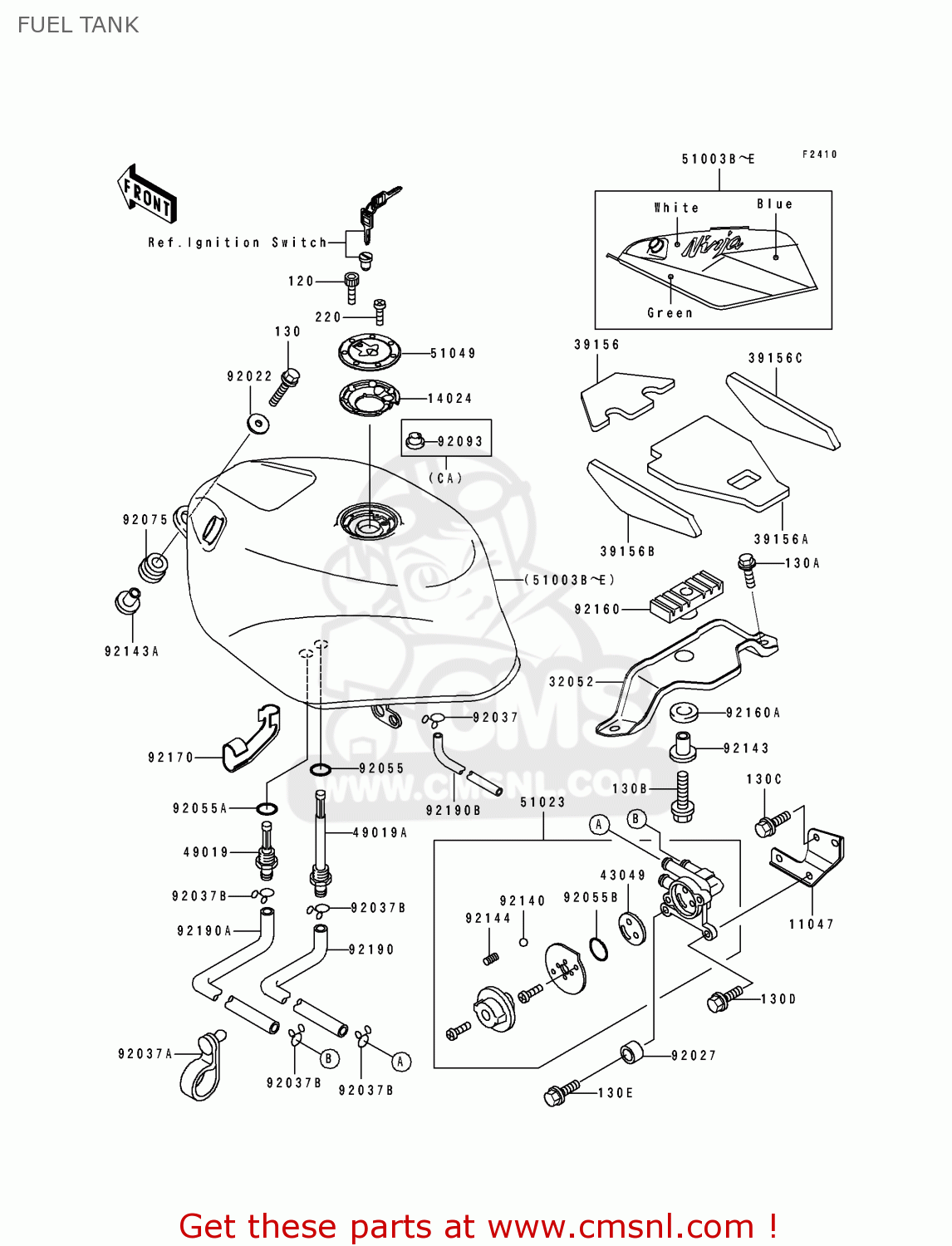

FUEL TANK

ref

part #

description

quantity

11047

110471268
ref: 11047

BRACKET,FUEL TAP

€ 7.50

14024

140251913
ref: 14024

COVER,TANK CAP

€ 13.50

32052

320521323
ref: 32052

BRACKET-TANK,RR

€ 24.50

39156

391561248
ref: 39156

PAD,FUEL TANK,FR

€ 9.50

39156A

391561249
ref: 39156A

PAD,FUEL TANK,CNT

€ 17.00

39156B

391561250
ref: 39156B

PAD,FUEL TANK,SIDE,LH

€ 10.00

39156C

391561251
ref: 39156C

PAD,FUEL TANK,SIDE,RH

€ 9.00

43049

430491066
ref: 43049

PACKING,TAP VALVE (NAS)

€ 5.00

49019

490191070
ref: 49019

FILTER-FUEL

€ 15.00

49019A

490191071
ref: 49019A

FILTER-FUEL,ON

€ 15.50

51003B

510035258KE
ref: 51003B
CN

FUEL TANK,COMPLETE,GREEN/WHITE/BLUE

€ 1,355.50

51003D

510035281KE
ref: 51003D
US

FUEL TANK,COMPLETE,(SUB),GREEN/WHITE/BLUE

€ 1,425.50

51003E

510035282KE
ref: 51003E
CA

FUEL TANK,COMPLETE,(SUB),GREEN/WHITE/BLUE

€ 1,425.50

51023

510231172
ref: 51023

TAP-ASSY,FUEL

€ 71.00

51049

510491091
ref: 51049

CAP-TANK,FUEL

€ 88.00

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

92027103
ref: 92027

COLLAR

€ 2.50

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92037A

920371903
ref: 92037A

CLAMP

€ 5.00

92037B

920371972
ref: 92037B

CLAMP,TUBE

€ 2.50

92055

920551386
ref: 92055

RING-O,ID=9.5

€ 2.50

92055A

920551387
ref: 92055A

RING-O,ID=11.5

€ 2.50

92055B

920551419
ref: 92055B

RING-O,TAP LEVER

€ 3.00

92075

92075112
ref: 92075

DAMPER RUBBER

€ 2.50

92093

920931030
ref: 92093
CA

OIL SEAL,FUEL TANK CA

€ 5.00

92140

921401051
ref: 92140

BALL,STAINLESS,5/32

€ 3.00

92143

921431484
ref: 92143

COLLAR

€ 4.50

92143A

921431515
ref: 92143A

COLLAR

€ 13.50

92144

921441212
ref: 92144

SPRING,FUEL TAP KNOB

€ 2.50

92160

921601271
ref: 92160

DAMPER,FUEL TANK,RR

€ 7.00

120

120S0512
ref: 120

BOLT-SOCKET

€ 1.00

130

130G0630
ref: 130

BOLT, FLANGED, 6X30

€ 0.50

130A

130H0820
ref: 130A

BOLT-FLANGED,8X20

€ 0.50

130B

130H0830
ref: 130B

BOLT-FLANGED,8X30

€ 1.00

130C

130J0608
ref: 130C

BOLT-FLANGED,6X8

€ 2.50

130D

130J0616
ref: 130D

BOLT-FLANGED,6X16

€ 1.50

130E

130J0625
ref: 130E

BOLT-FLANGED,6X25

€ 2.00

220

220C0508
ref: 220

SCREW-PAN-CROS

€ 1.00

92160A

921601277
ref: 92160A

DAMPER,FUEL TANK,RR

€ 2.00

92170

921701282
ref: 92170

CLAMP,TUBE

€ 7.50

92190

921901192
ref: 92190

TUBE,FUEL,ON

€ 19.00

92190A

921901193
ref: 92190A

TUBE,FUEL,RES

€ 18.50

92190B

921901260
ref: 92190B

TUBE

€ 15.50

all assemblies
