ELECTRICAL EQUIPMENT

ZX750K1 NINJA ZX7R 1991 USA CALIFORNIA CANADA

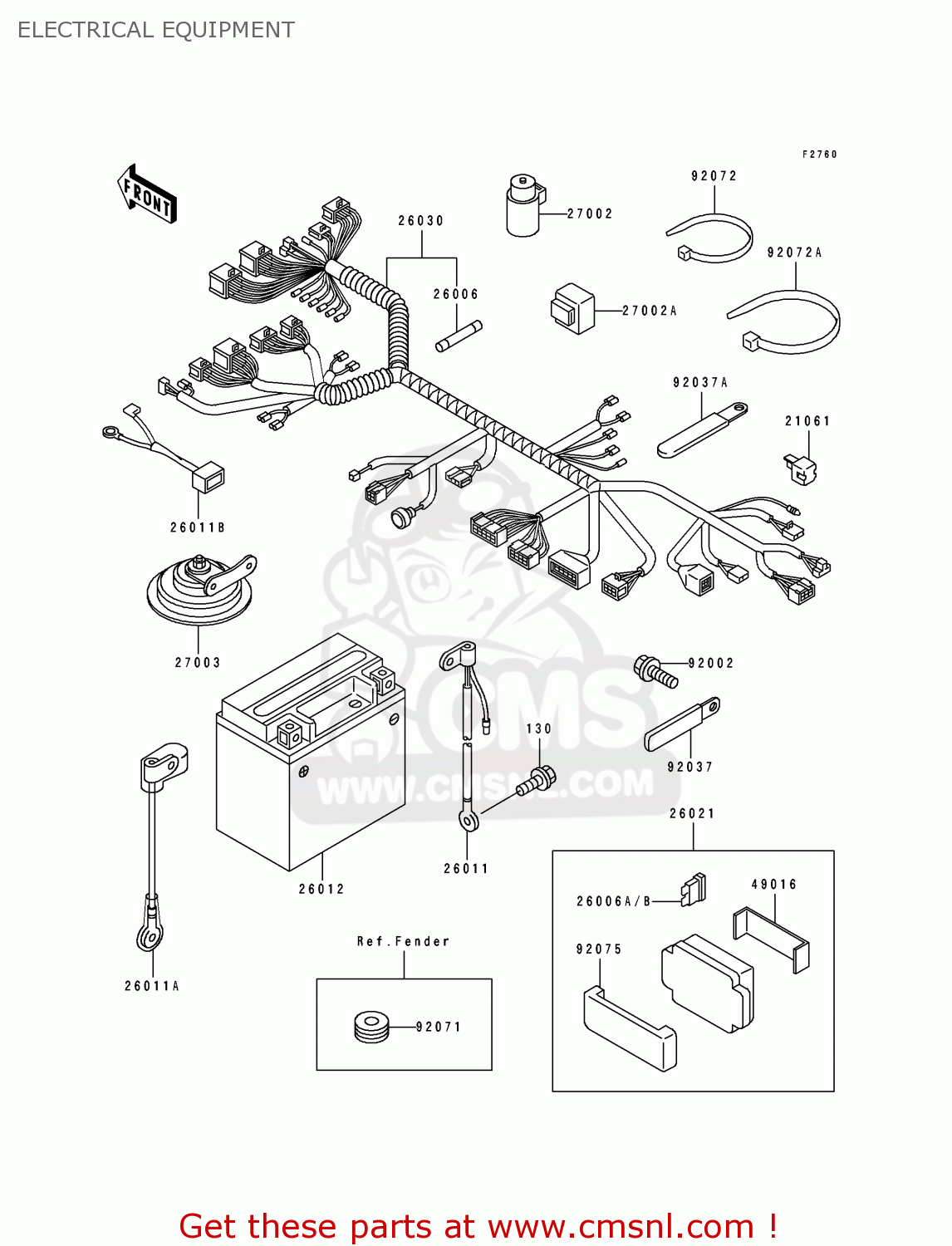

Electrical equipment diagram ZX750K1 NINJA ZX7R 1991 USA CALIFORNIA CANADA

ELECTRICAL EQUIPMENT ZX750K1 NINJA ZX7R 1991 USA CALIFORNIA CANADA
ELECTRICAL EQUIPMENT ZX750K1 NINJA ZX7R 1991 USA CALIFORNIA CANADA
ELECTRICAL EQUIPMENT ZX750K1 NINJA ZX7R 1991 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
21061
210611003
ref: 21061
RECTIFIER
210611003
€ 25.00
26006
260061056
ref: 26006
FUSE,20A,L=30
260061056
€ 3.00
26006A
260061067
ref: 26006A
FUSE, 30A-G
€ 3.00
26006B
260061068
ref: 26006B
FUSE, 10A-R
€ 3.00
26011
260111195
ref: 26011
WIRE-LEAD,BATTERY GRO
260111195
€ 14.50
26011A
260111475
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 16.50
26011B
260111507
ref: 26011B
WIRE-LEAD,THERMO SENS
260111507
€ 18.50
26012
260121261
ref: 26012
BATTERY,YTX9-BS,12V 8
€ 100.00
26021
260211077
ref: 26021
UNCTION BOX
260211077
€ 159.00
26030
260301084
ref: 26030
HARNESS,MAIN
€ 209.50
27002
270021051
ref: 27002
RELAY-ASSY
270021051
€ 32.00
27002A
270021059
ref: 27002A
RELAY-ASSY,TURN SIGNA
270021059
€ 43.50
27003
270031316
ref: 27003
HORN
270031316
€ 55.50
49016
490161125
ref: 49016
COVER-SEAL,FUSE
€ 6.00
92002
920021472
ref: 92002
BOLT,TAPPING,5X16
€ 2.00
92037
920371679
ref: 92037
CLAMP
920371679
€ 3.50
92037A
920371993
ref: 92037A
CLAMP
920371993
€ 3.50
92071
920711058
ref: 92071
GROMMET,SENSOR LEAD
920711058
€ 3.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721197
ref: 92072A
BAND
920721197
€ 5.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
